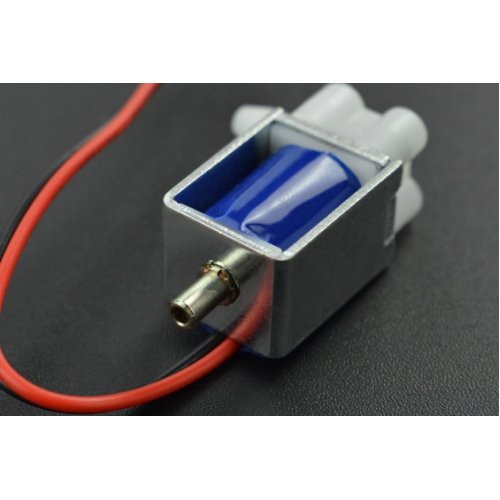

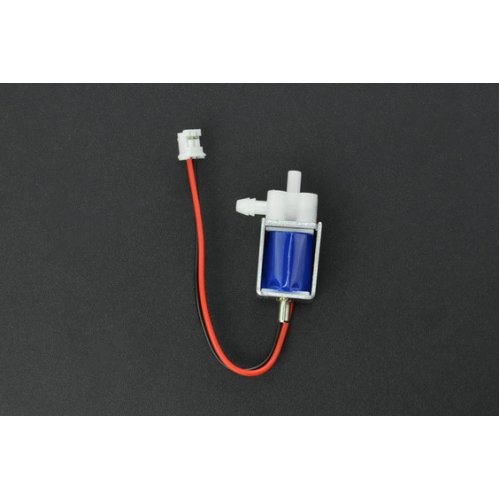

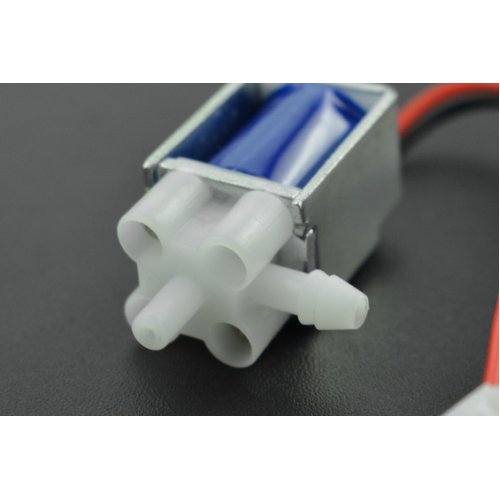

For guys who are interested in pneumatic system, hydraulic system, inflation equipment, or air compressing, this is a really practical valve for you. It can be used to change the direction of the air outlet, also can be used as a valve switch. Like a relay, it has a common interface (COM), a normally open interface (NO), and a normally closed interface(NC). You can determine which interface to be connected to the common interface by powering on and off the valve.

Specifications:
  • Operating Voltage: 6 V
  • Rated Current: 100±10% mA
  • DC Impedance: 60±10%Ω
  • Power: 0.6 W
  • Air Nozzle Diameter: Ø3.0mm/0.12”
  • Maximum Pressure: 40 KPa (300 mmHg)
  • Medium: Gas
  • Weight: 15 g

Warranty: 90 days

  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

  • 1 x 6 V 2-Position 3-Way Air Valve for Arduino

Write a review

Please login or register to review

6 V 2-Position 3-Way Air Valve for Arduino

  • Brand: DFRobot
  • Product Code:DFR-Air-Valve-Arduino
  • Reward Points:4
  • Availability:In Stock
  • रo 386.00
  • रo 335.00

  • Price in reward points:398

  • 35 or more रo 384.00
  • 70 or more रo 383.00
  • 180 or more रo 372.00

Related Products

370 Mini Vacuum Pump

370 Mini Vacuum Pump

This super-easy-to-use air pump is very suitable for beginners to make inflatable or pneumatic proje..

रo 466.00 रo 537.00

Tags: Air Valve, Arduino
