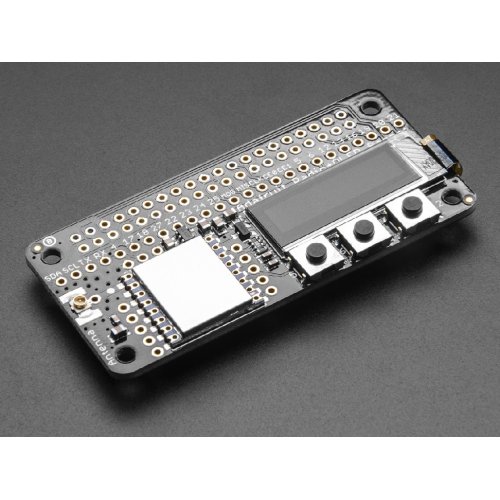

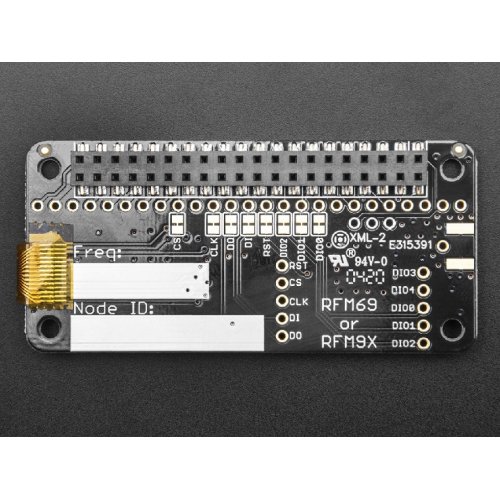

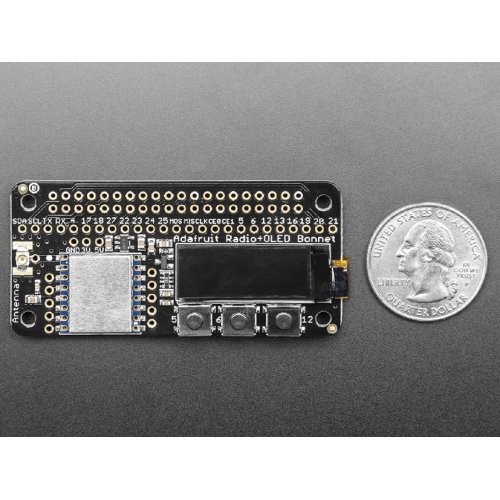

The latest Raspberry Pi computers come with WiFi and Bluetooth, and now you can add even more radio options with the Adafruit Radio Bonnets! Upgrade your Raspberry Pi with a LoRa / LoRaWAN radio, so it can communicate over very long distances. These bonnets plug right into your Pi and give you long range wireless capabilities to remote nodes that may be battery powered. Or, you can create Internet gateways with ease.
This is the 433 MHz radio version - the exact radio frequency is determined when you load the software since it can be tuned around dynamically. These are +20dBm LoRa packet radios that have a special radio modulation that is not compatible with the RFM69s but can go much much farther. They can easily go 2 Km line of sight using simple wire antennas, or up to 20Km with directional antennas and settings tweakings.
  • Packet radio with ready-to-go CircuitPython libraries
  • Uses the license-free ISM band: "European ISM" @ 868MHz or "American ISM" @ 915MHz
  • Use a simple wire antenna or spot for uFL or SMA radio connector
  • SX1276 LoRa® based module with SPI interface
  • +5 to +20 dBm up to 100 mW Power Output Capability (power output selectable in software)
  • ~100mA peak during +20dBm transmit, ~30mA during active radio listening.
  • Range of approx. 2Km, depending on obstructions, frequency, antenna and power output

Package Includes:

  • 1 x Adafruit 4075 LoRa Radio Bonnet RFM96W @ 433MHz - RadioFruit

Write a review

Please login or register to review

Adafruit 4075 LoRa Radio Bonnet RFM96W @ 433MHz - RadioFruit

  • Brand: Adafruit
  • Product Code:Ada-4075-RadioFruit
  • Reward Points:37
  • Availability:In Stock
  • रo 3,508.00

  • Price in reward points:3700

  • 40 or more रo 3,493.00
  • 50 or more रo 3,056.00
