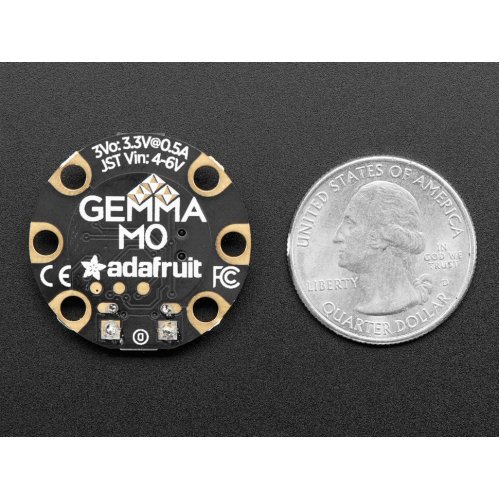

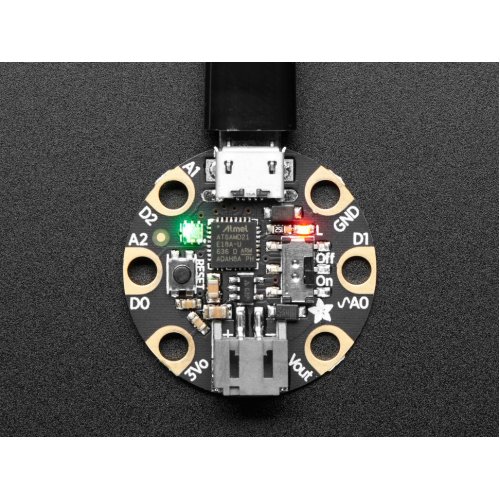

• The Adafruit Gemma M0 is a super small microcontroller board, with just enough built-in to create many simple projects. It may look small and cute: round, about the size of a quarter, with friendly alligator-clip sew pads. But do not be fooled! The Gemma M0 is incredibly powerful! We've taken the same form factor we used for the original ATtiny85-based Gemma and gave it an upgrade. The Gemma M0 has swapped out the lightweight ATtiny85 for a ATSAMD21E18 powerhouse.

    The Gemma M0 will super-charge your wearables! It's just as small, and it's easier to use, so you can do more.

    The most exciting part of the Gemma M0 is that while you can use it with the Arduino IDE, we are shipping it with CircuitPython on board. When you plug it in, it will show up as a very small disk drive with main.py on it. Edit main.py with your favorite text editor to build your project using Python, the most popular programming language. No installs, IDE or compiler needed, so you can use it on any computer, even ChromeBooks or computers you can't install software on. When you're done, unplug the Gemma M0 and your code will go with you.

    Here are some of the updates you can look forward to when using Gemma M0:

    • Same size, form-factor, and pinout as classic Gemma
    • Updating ATtiny85 8-bit AVR for ATSAMD21E18 32-bit Cortex M0+
    • 256KB Flash - 8x as much as 8 KB on ATtiny85
    • 32 KB RAM - 64x as much as 512 bytes on ATtiny85
    • 48 MHz 32 bit processor - 6x as fast as ATtiny85 (not even taking into account 32-bit speedups)
    • Native USB supported by every OS - can be used in Arduino or CircuitPython as USB serial console, Keyboard/Mouse HID, even a little disk drive for storing Python scripts. (ATtiny85 does not have native USB)
    • Can be used with Arduino IDE or CircuitPython
    • Built in RGB DotStar LED
    • Three big-hole sew-pads can be used for conductive thread or alligator-clips for fast prototyping
      • Each I/O pad can be used for 12-bit analog input, or digital input/output with internally connected pullups or pulldowns
      • We gave the M0 pads the exact same names as the original Gemma so all your existing Arduino code will work exactly the same as-is without changes
      • True analog output on one I/O pad - can be used to play 10-bit quality audio clips
      • Two high speed PWM outputs on other two I/O Pads - for servos, LEDs, etc
      • All three pads can also be used as hardware capacitive touch sensors with no additional components required
      • Can drive NeoPixels or DotStars on any pins, with enough memory to drive 8000+ pixelsDMA-NeoPixel support on one pin so you can drive pixels without having to spend any processor time on it.
      • Native hardware I2C or Serial available on two pads so you can connect to any I2C or Serial device with true hardware support (no annoying bit-banging)
    • Same Reset switch for starting your project code over
    • On/Off switch built in
    • JST battery connector for plugging in AAA's or LiPoly battery (no built-in LiPoly charging so it is safe to use with NiMH/Alkalines)

    Each order comes with one fully assembled and tested Gemma M0 with CircuitPython & example code programmed in.

    So what are you waiting for? Pick up a Gemma M0 today and be amazed at how easy and fast it is to get started with Gemma and CircuitPython!

    For more information about Adafruit Gemma M0, check out our Learn guide.

  • TECHNICAL DETAILS

    • Dimensions: 27.95mm / 1.1" round x 6.4mm / 0.25" high
    • Weight: 2.1g

    Datasheets, EagleCAD PCB files, firmware, Fritzing object and more available in the product tutorial



Write a review

Please login or register to review

Adafruit 3501 GEMMA M0 - Miniature wearable electronic platform

  • Brand: Adafruit
  • Product Code:Ada-GEMMA-M0
  • Reward Points:11
  • Availability:In Stock
  • रo 1,133.00

  • Price in reward points:1133

  • 50 or more रo 940.00
  • 145 or more रo 936.00
