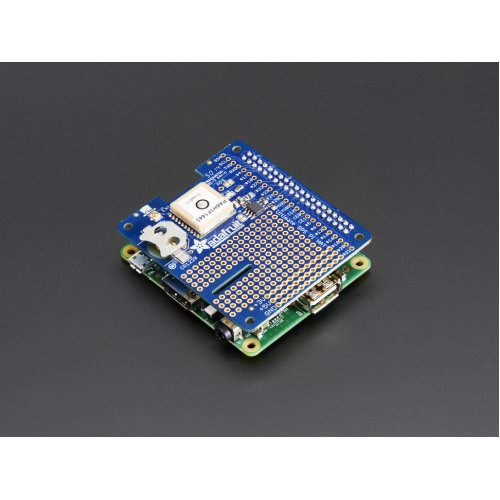

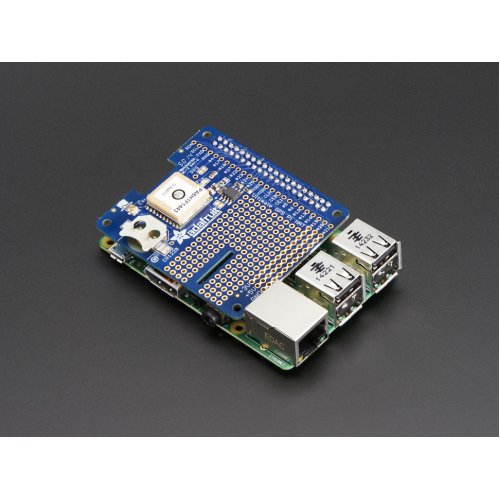

It's 10PM, do you know where your Raspberry Pi is? If you had this GPS HAT, you would! This new HAT from Adafruit adds our celebrated Ultimate GPS on it, so you can add precision time and location to your Raspberry Pi Model Pi 3, Pi Zero, A+, B+, or Pi 2, 3, & 4.

Specifications:

  • -165 dBm sensitivity, 10 Hz updates, 99 search channels
  • GPS + GLONASS support
  • Built-in Real Time Clock (RTC) - slot in a CR1220 backup battery for 7-years or more of timekeeping even if the Raspberry Pi is off!
  • PPS output on fix, by default connected to pin #4

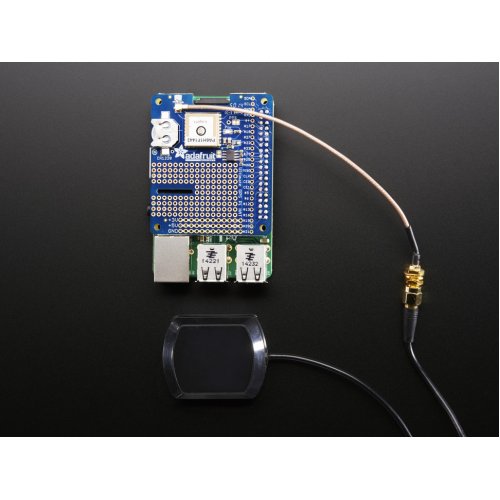

  • Internal patch antenna which works quite well when used outdoors + u.FL connector for external active antenna for when used indoors or in locations without a clear sky view
  • Fix status LED blinks to let you know when the GPS has determined the current coordinates

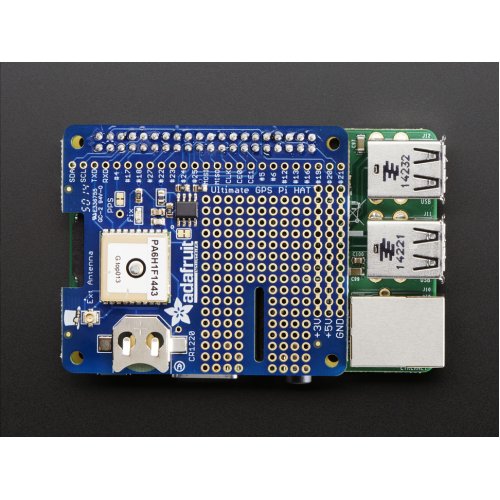

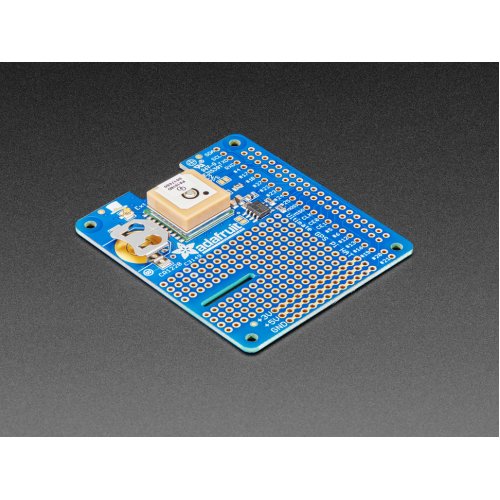

  We spun up a HAT based on our Ultimate GPS, added a coin-cell holder for RTC usage, break-outs for all the Raspberry Pi's extra pins, and plenty of prototyping area for adding LEDs, sensors, and more.

Note:

Documents:

Revision History:

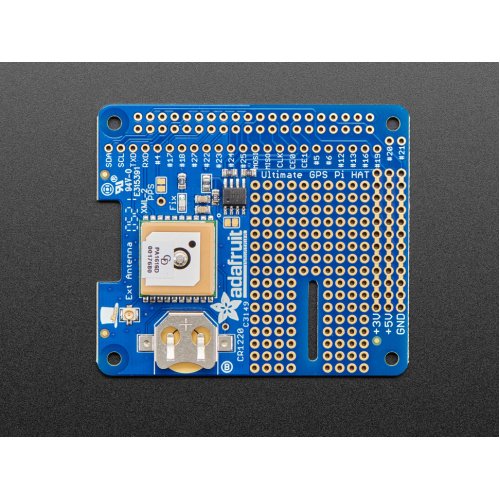

As of June 21, 2021 - this breakout board now has the PA1616D GPS module. The PA1616D uses IC MT3333 (GPS+GLONASS) instead of the MT3339 (GPS only), so power consumption is higher PA6H, and patch antenna is chonkier from 2.5mm to 4mm.

Package Includes:

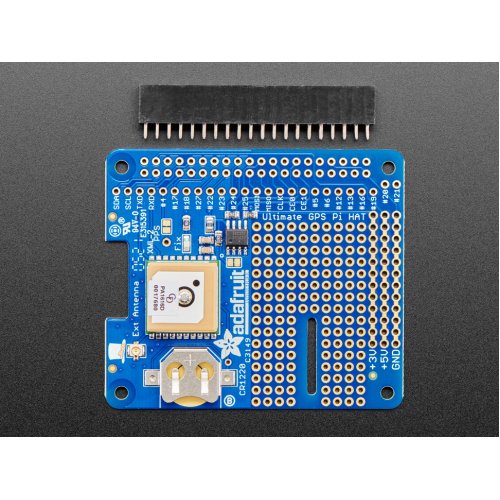

  • 1 x Adafruit 2324 Ultimate GPS HAT for Raspberry Pi A+/B+/Pi 2/3/Pi 4 - Mini Kit

Write a review

Please login or register to review

Adafruit 2324 Ultimate GPS HAT for Raspberry Pi A+/B+/Pi 2/3/Pi 4 - Mini Kit

  • Brand: Adafruit
  • Product Code:NR-Ada-Ultimate-GPS-HAT
  • Reward Points:34
  • Availability:In Stock
  • रo 3,232.00

  • Price in reward points:3410

  • 40 or more रo 3,219.00
  • 50 or more रo 2,817.00
