Snap action blocks are perfect when you have to quickly wire up a bunch of free-hanging components, and you don't want to solder. They're much easier to use than wire nuts, and of course they are reuse-able and do not require any crimping!

Each block connector has a metal block inside and levers that snap open and close to bind stranded/solid-core wire from 12 AWG down to 24 AWG. No screwdrivers or crimpers required, making them super handy for free wiring. Each block is marked to handle up to 32A at 250V, but we haven't tested them at such high power uses - we're selling them for maker projects that would be 10A at 24V max.

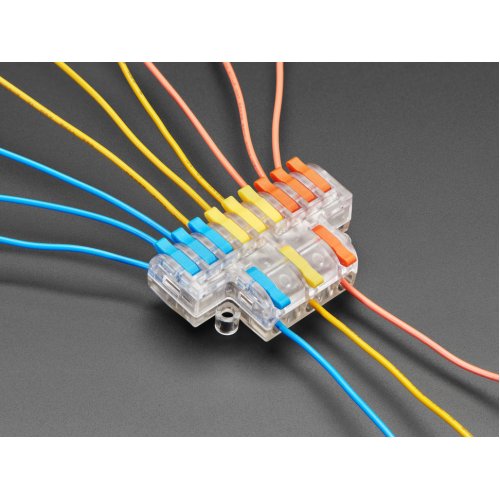

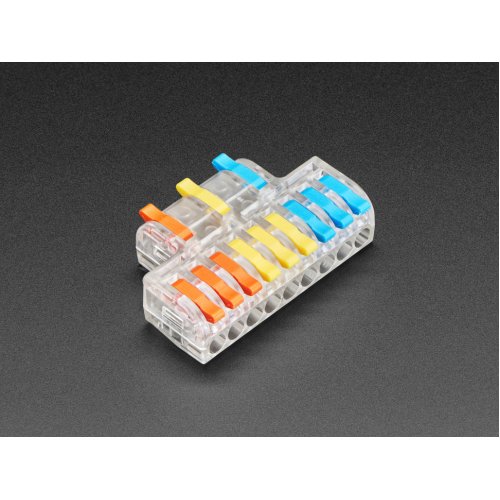

This is a 3 to 9 wire block: there are three separate inputs, and three sets of three outputs. They're color coded so easy to follow, the green yellow and red inputs match the colored outputs. Great for basic power or data fan-outs. (Diagram)

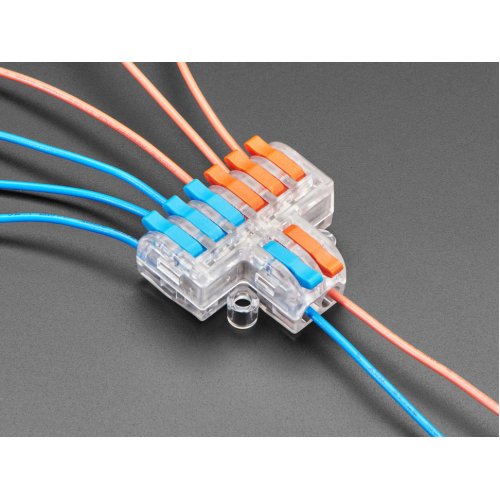

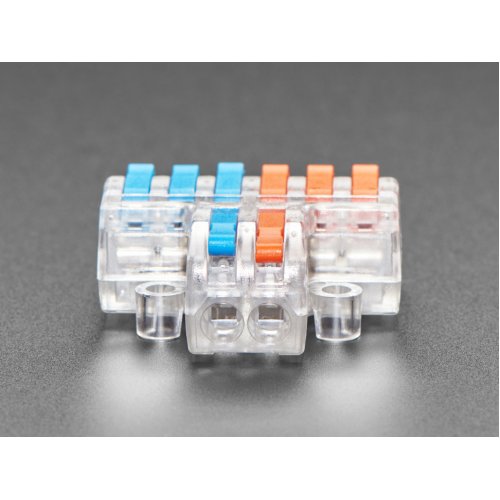

This is a 2 to 6 wire block: there are two separate inputs and two sets of three outputs. They're color-coded so easy to follow; the blue and red inputs match the colored outputs. Great for basic power or signal fan-outs. (Diagram)

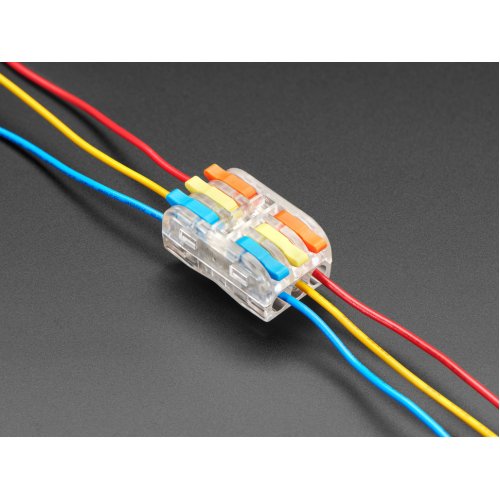

This is a 3 to 3 wire block: there are three separate inputs and three separate outputs. They're color coded so easy to follow, the red, yellow, and blue inputs match the colored outputs. Great for wire splicing, not for fan-outs (we have separate snap-action blocks that are good for that).

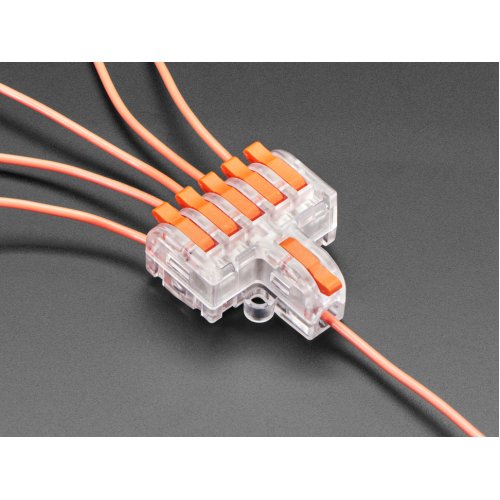

This is a 1 to 5 wire block: there is one separate input and five outputs. Great for basic power or signal fan-outs, you would want one of these for every signal or power line you wanted to fan out. (Diagram)

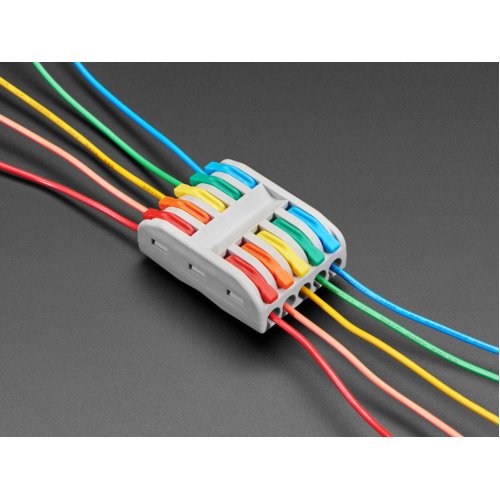

This is a 5 to 5 wire block: there are five separate inputs and five separate outputs. They're color coded so easy to follow; the blue, green, yellow, orange, and red inputs match the colored outputs. Great for wire splicing, not for fan-outs (we have separate snap-action blocks that are good for that). (Diagram)

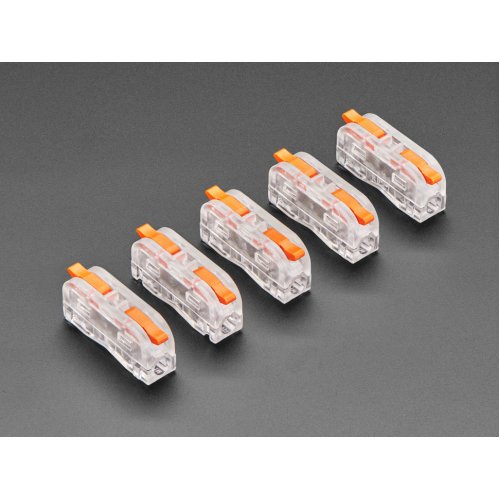

These are 1 to 1 wire blocks: there is one separate input and one output. Great for basic power or signal splicing. These individual blocks can be snapped together side-by-side, to make wider distribution blocks. Of course each block is still electrically isolated, but they can make for neater wiring. (Diagram)

Package Includes:

  • 1 x Snap Action 3-to-9 Wiring Block Connector - Clear DF-93

                                        (OR)

  • 1 x Snap Action 2-to-6 Wiring Block Connector - Clear DF-62

                                         (OR)

  • 1 x Snap Action 3-to-3 Wiring Block Connector - Clear PCT-2-3M

                                         (OR)

  • 1 x Snap Action 1-to-5 Wiring Block Connector - Clear DF-15

                                         (OR)

  • 1 x Snap Action 5-to-5 Wiring Block Connector - Gray PCT-2-5

                                          (OR)

  • 1 x Snap Action 1-to-1 Wiring Block Connector - Pack of 5 - Clear PCT-2-1M

Write a review

Please login or register to review

Adafruit 5614/5615/5618/5616/5617/5619 Snap Action 3-to-9/2-to-6/3-to-3/1-to-5/5-to-5/1-to-1 Wiring Block Connector

  • Brand: Adafruit
  • Product Code:NR-Ada-Snap-Action-Wiring Block-Connector
  • Reward Points:2
  • Availability:In Stock
  • रo 210.00

  • Price in reward points:222

  • 50 or more रo 185.00
  • 730 or more रo 184.00
