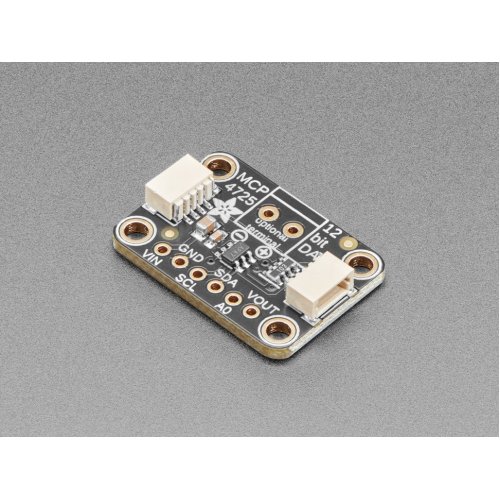

Your microcontroller probably has an ADC (analog -> digital converter) but does it have a DAC (digital -> analog converter)??? Now it can! This breakout board features the easy-to-use MCP4725 12-bit DAC. Control it via I2C and send it the value you want it to output, and the VOUT pin will have it. Great for audio / analog projects, such as when you can't use PWM but need a sine wave or adjustable bias point.

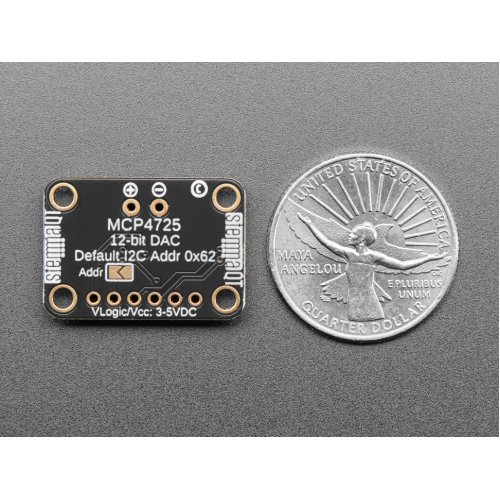

We break out the ADDR/A0 pin so you can connect two of these DACs on one I2C bus, just tie that pin of one high (or close the jumper on the back) to keep it from conflicting. Also included is a 6-pin header, for use in a breadboard. Works with both 3.3V or 5V logic.
Some nice extras with this chip: for chips that have 3.4Mbps Fast Mode I2C (Arduino's don't) you can update the Vout at ~200 KHz. There's an EEPROM so if you write the output voltage, you can 'store it' so if the device is power cycled it will restore that voltage. The output voltage is rail-to-rail and proportional to the power pin so if you run it from 3.3V, the output range is 0-3.3V. If you run it from 5V the output range is 0-5V.
We have an easy-to-use Arduino and CircuitPython/Python library and tutorial with a triangle-wave and sine-wave output example that can be used with just about any microcontroller or microcomputer with I2C host.

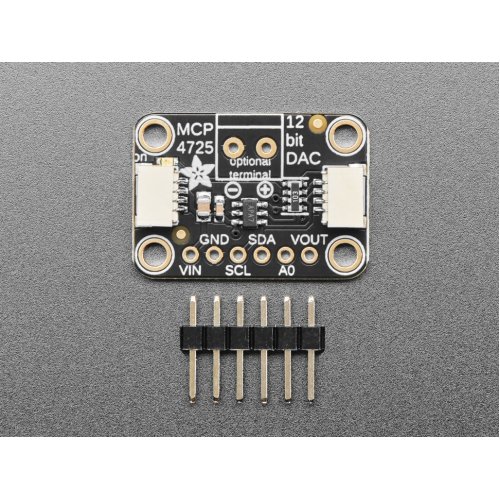

Comes with a bit of 0.1" standard header in case you want to use it with a breadboard or perfboard.  Four mounting holes for easy attachment. There's an optional 3.5mm terminal block spot on the PCB - we don't include a 3.5mm terminal block but they're both common and stocked in the shop - that you can solder in place if you like.
To get you going fast, we spun up a custom-made PCB in the STEMMA QT form factor, making it easy to interface with. The STEMMA QT connectors on either side are compatible with the SparkFun Qwiic I2C connectors. This allows you to make solderless connections between your development board and the MCP4725 or to chain it with a wide range of other sensors and accessories using a compatible cable.
Documentations:
Technical Details:
  • This board/chip uses I2C 7-bit address, you can use 0x62 or 0x63
Package Includes:
  • 1 x Adafruit 935 MCP4725 Breakout Board - 12-Bit DAC with I2C Interface - STEMMA QT / qwiic

Write a review

Please login or register to review

Adafruit 935 MCP4725 Breakout Board - 12-Bit DAC with I2C Interface - STEMMA QT / qwiic

  • Brand: Adafruit
  • Product Code:Ada-935-MCP4725-Breakout-Board
  • Reward Points:5
  • Availability:In Stock
  • रo 534.00

  • Price in reward points:564

  • 50 or more रo 468.00
  • 290 or more रo 466.00
