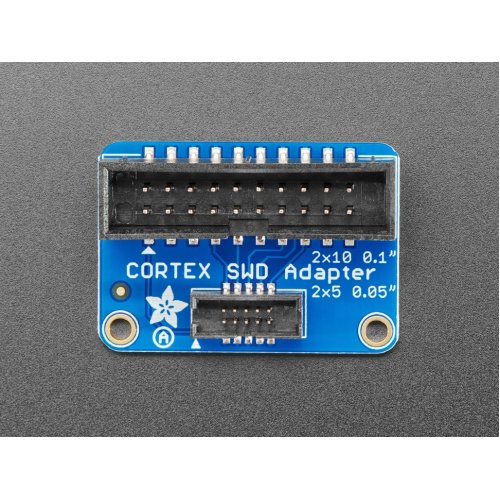

This adapter board is designed for adapting a 'classic' 2x10 (0.1"/2.54mm pitch) JTAG cable to a slimmer 2x5 (0.05"/1.27mm pitch) SWD Cable.  It's helpful for using products like the JTAGulator or SEGGER J-Link with tiny boards that use the 10-pin SWD programming connector.

This board comes with no cables.  It's really just the adapter - but is super helpful when you want to use JTAG debugging on boards that can't support 2x10 cables. We do stock the SWD cable if you need one here!

Technical Details:

  • Dimensions w/components: 34mm x 24mm x 12mm / 1.3" x 0.9" x 0.5"
  • Weight: 5.7g

Documentation:

Package Includes:

  • 1 x Adafruit 2094 JTAG (2x10 2.54mm) to SWD (2x5 1.27mm) Cable Adapter Board




Write a review

Please login or register to review

Adafruit 2094 JTAG (2x10 2.54mm) to SWD (2x5 1.27mm) Cable Adapter Board

  • Brand: Adafruit
  • Product Code:Ada-2094-JTAG-Cable-Adapter-Board
  • Reward Points:6
  • Availability:In Stock
  • रo 534.00

  • Price in reward points:565

  • 45 or more रo 475.00
  • 290 or more रo 466.00
