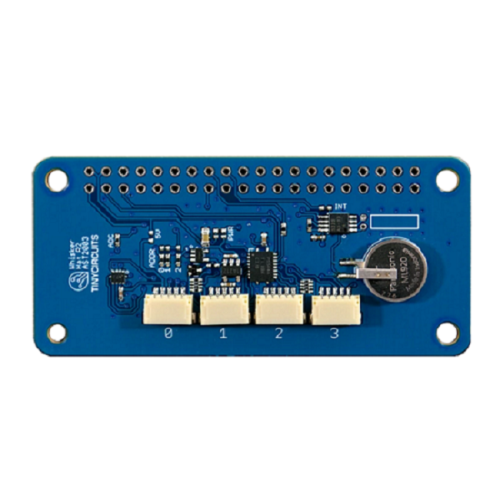

This Pi Hat allows users to add Wirelings to their Pi projects. Featuring a 4-channel Multiplexer, Real-Time Clock (RTC), on-board voltage regulation and level shifting, this board allows you to add up to 4 Wireling Boards to your project with ease!

TI PCA9544A Multiplexer Specifications :

I²C Bus
Four Active-Low Interrupt Inputs
Active-Low Interrupt Output
Three Address Pins

DS1339 I²C Serial Real-Time Clock (RTC)

Manages all Timekeeping functions: Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap-Year Compensation Valid Up to 2100
Two Time-of-Day alarms

Power Requirements

Voltage: 3.0V - 5.5V

Pins Used :

A5/SCL - I²C Serial Clock line
A4/SDA - I²C Serial Data line
IO2 - Used for RTC
IO3 - Used for RTC
IO4 - Power Control

Dimensions :

30mm x 65mm (1.18 inches x 2.56 inches)
Max Height: 12.5mm (0.48 inches) Measured from the top of the 5-pin connectors, and the bottom of soldered header pins
Weight: 6 gram (.21 ounces)

WIRELING PI HAT

Brand: TinyCircuits
Product Code:TinyC-WIRELING-PI-HAT
Reward Points:13
Availability:Discontinued

रo 1,278.00
Price in reward points:1278
10 or more रo 1,267.00
20 or more रo 1,256.00
50 or more रo 1,246.00

Qty

0 reviews / Write a review
