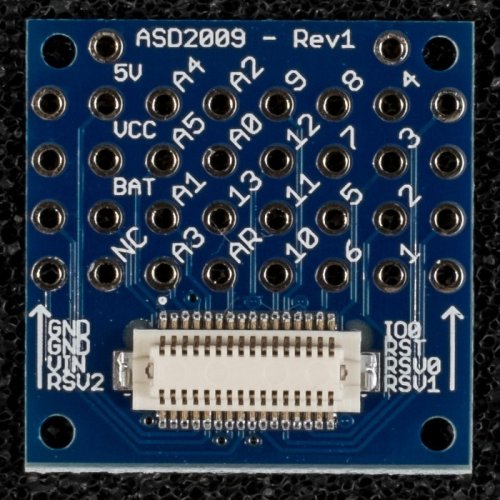

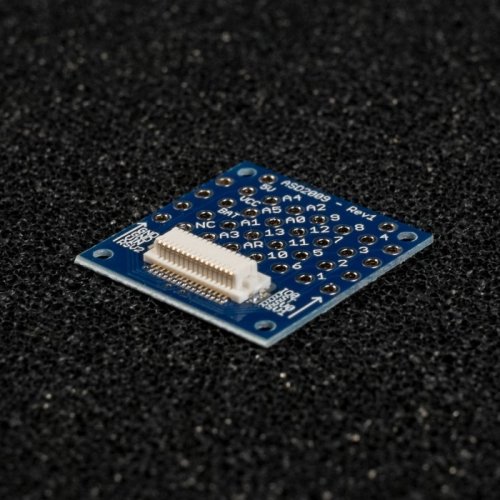

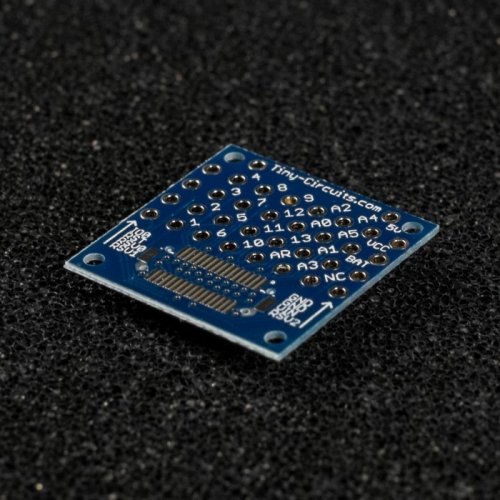

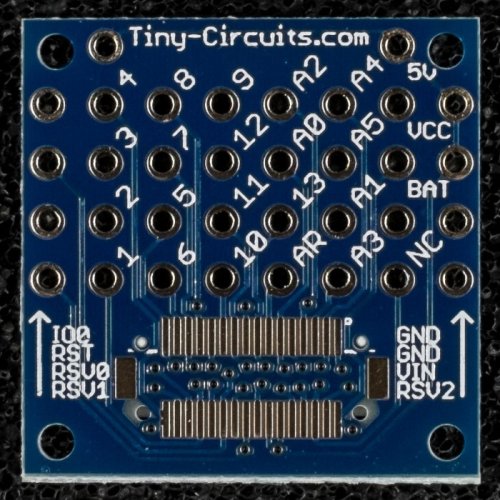

This proto board brings all of the TinyShield signals out to a point that you can solder to. All of the signals are marked and are spaced with 0.1″ spacing (same spacing as on the standard Arduino Uno), so a standard 0.1″ header can be used if desired.

This proto board can be ordered with or without a top stackable connector. By default, a top connector is not needed since the standard method is to use this proto board as the top board in a TinyDuino stack which allows the easiest access to the signals. However when this board is ordered with the top stackable connector, the proto board can be located in an inner layer of the TinyDuino stack which is useful for some projects.

Specifications:
  • Ultra compact size and weight (smaller than a US Quarter!)
  • Square Version: 20mm x 20mm (.787 inches x .787 inches)
  • Max Height (No Top Connector): (from lower bottom TinyShield Connector to upper PCB level): 2.81mm (0.111 inches)
  • Max Height (WithTop Connector): (from lower bottom TinyShield Connector to upper PCB level): 5.11mm (0.201 inches)
  • Weight (No Top Connector): 0.70 grams
  • Weight (With Top Connector): 0.85 grams
Includes the following signals:

VCC, VBATT,+3V3, +5V, VIN, GND, RSV2, RSV1, RSV0, RESET

IO0, IO1, IO2, IO3, IO4, IO5, IO6, IO7, IO8, IO9

SS, MOSI, MISO, SCK, AREF, AD0, AD1, AD2, AD3, AD4/SDA, AD5/SDL

Support:



Write a review

Please login or register to review

TinyShield Proto Board

  • Brand: TinyCircuits
  • Product Code:TinyC-Shield-Protoboard
  • Reward Points:3
  • Availability:In Stock
  • रo 252.00

  • Price in reward points:252

  • 50 or more रo 250.00
  • 100 or more रo 248.00
  • 240 or more रo 246.00
