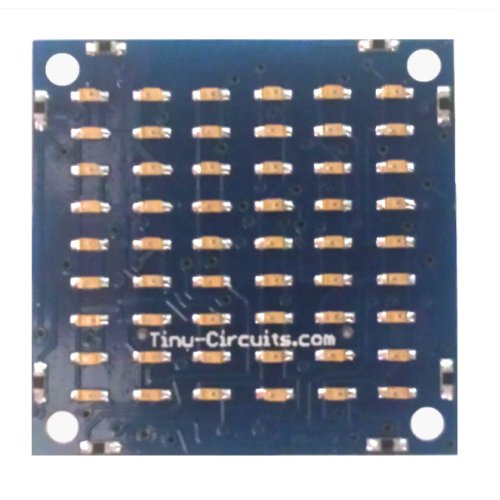

The TinyShield Matrix LED Boards is a 6 x 9 grid of LEDs (54 total LEDs) that are individually addressable, which lets you scroll text, draw images and all sorts of other things. This TinyShield is compatible with the popular Arduino LoL Shield Library (Lots of LEDs Shield) created by Jimmie Rodgers.
The LEDs are arranged using Charlieplexing, which is a technique to allow for control of multiple LEDs using fewer I/O signals. Available with Red, Green and Amber LED color options.
Specifications:
- 54 Top Facing LEDs in a 6×9 Matrix
-
Ultra compact size and weight (smaller than a US Quarter!)
- Square Version: 20mm x 20mm (.787 inches x .787 inches)
- Max Height (from lower bottom TinyShield Connector to upper top of LEDs): 4.6mm (.181 inches)
- Arduino pins 2, 3, 4, 5, 6, 7, 8, and 9 are used by this shield
Support:
TinyShield Matrix LEDs
- Brand: TinyCircuits
- Product Code:TinyC-Shield-Matrix-LED
- Reward Points:13
- Availability:In Stock
- रo 1,285.00
-
रo 400.00
- Price in reward points:1285
