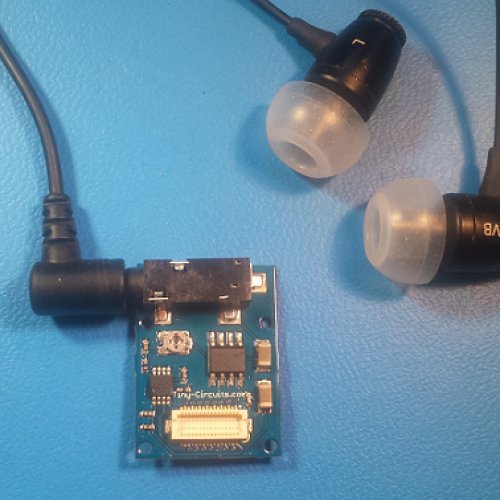

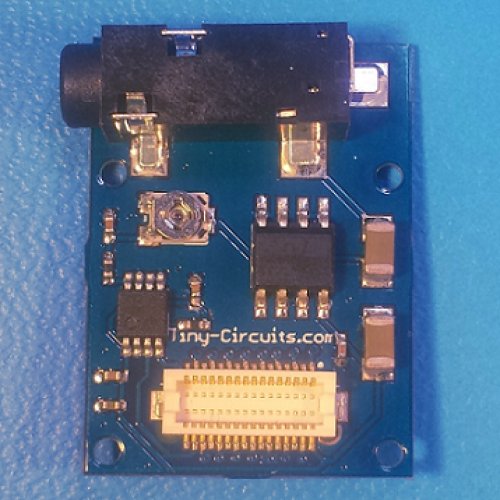

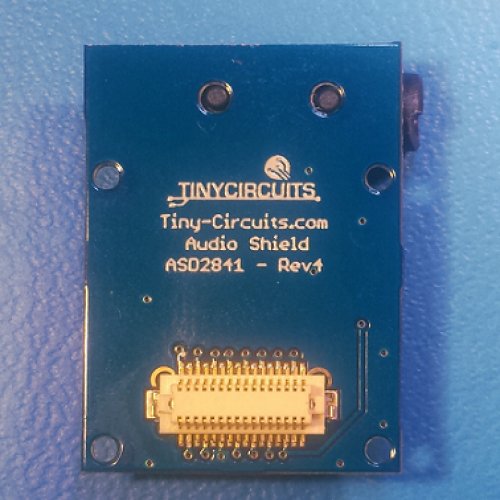

This TinyShield makes it incredibly easy to add audio support to your TinyDuino projects. It has an onboard DAC, filter and amplifier for great sound quality. It can play any size uncompressed 22kHz, 16bit mono Wave files (.wav) directly off a microSD card (a TinyShield microSD Adapter is also required for this).

The audio output is mono on both the L and R channels, and uses a standard 3.5mm headphone jack connector and an onboard potentiometer can be used to control the volume.This TinyShield is completely compatible with theArduino waveHC Libraryfrom Adafruit for playing wave files from a microSD card.

Specifications:

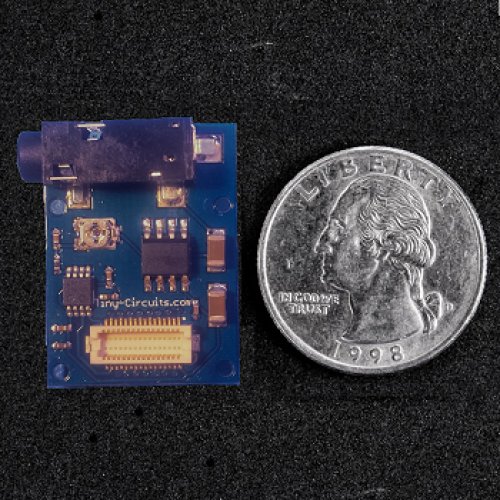

  • Ultra compact size and weight (smaller than a US Quarter!)
    • Square Version: 24.14mm x 20mm (1.07 inches x .787 inches)
    • Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 7.81mm (0.307 inches)
  • Microchip MCP4921 12-bit Digital-to-Analog Converter (DAC)
    • Audio Output: mono on both the L and R channels on standard 3.5mm headphone jack
    • Volume Control: Manual onboard potentiometer
    • Wave file streaming: Can play any size uncompressed 22kHz, 16bit mono Wave files from a microSD card
    • Arduino pins IO2, IO3, and IO4 are used by this shield
  • Will work across the entire TinyDuino voltage range of 2.7 - 5.5V.

Support

Write a review

Please login or register to review

TinyShield Audio

  • Brand: TinyCircuits
  • Product Code:TinyC-Shield-Audio
  • Reward Points:17
  • Availability:In Stock
  • रo 1,706.00

  • Price in reward points:1706

  • 7 or more रo 1,691.00
  • 15 or more रo 1,677.00
  • 40 or more रo 1,662.00
