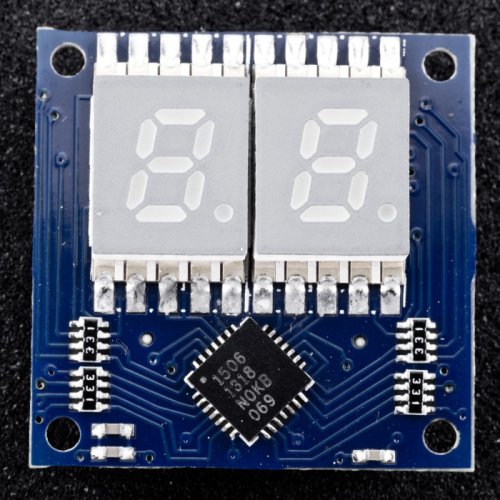

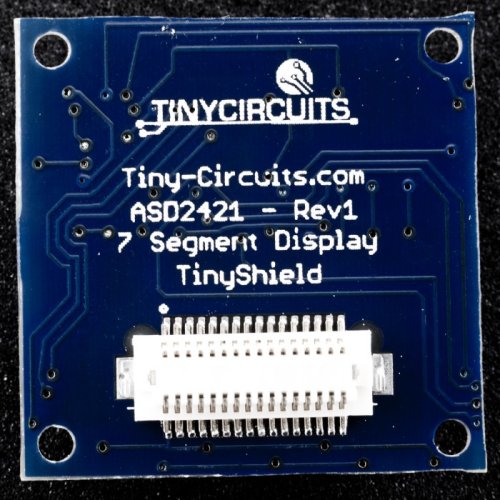

The TinyShield 7 Segment Display Board contains two seven segment LEDs (Red LEDs) that can be set over the I2C (thus saving signals to do other tasks) by using an Semtech SX1506 I/O expander. Each of the segments, including the decimal indicator can be individually selected, and an easy to use library is provided to make it extremely easy to use.

Specifications:

  • Two Seven Segment LEDs, Color Red
  • Ultra compact size and weight (smaller than a US Quarter!)
    • Square Version: 20mm x 20mm (.787 inches x .787 inches)
    • Max Height (from lower bottom TinyShield Connector to upper top of LED displays): 6.6mm (.26 inches)
  • Arduino pins A4 and A5 are used by this shield

Downloads:

Write a review

Please login or register to review

TinyShield 7 Segment Display

  • Brand: TinyCircuits
  • Product Code:TinyC-Shield-7Segment-Display
  • Reward Points:17
  • Availability:In Stock
  • रo 1,706.00

  • Price in reward points:1706

  • 7 or more रo 1,691.00
  • 15 or more रo 1,677.00
  • 35 or more रo 1,662.00
