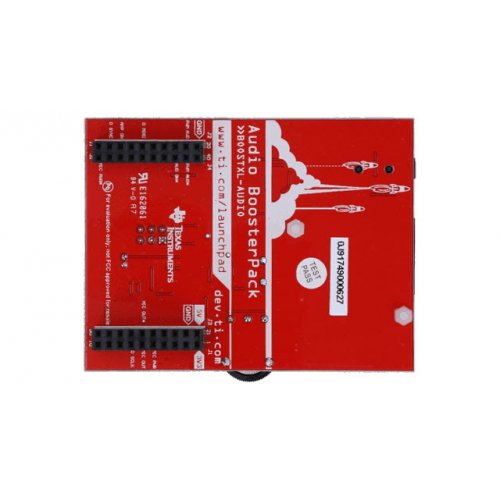

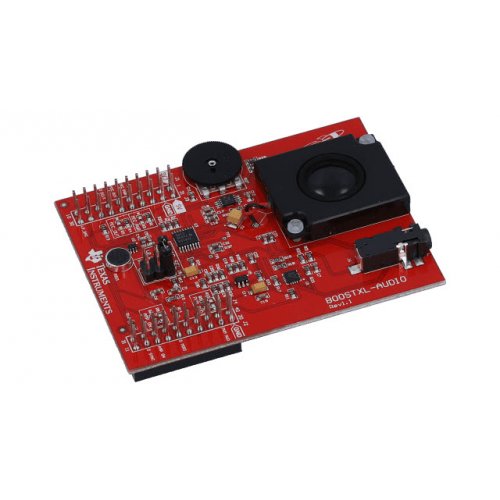

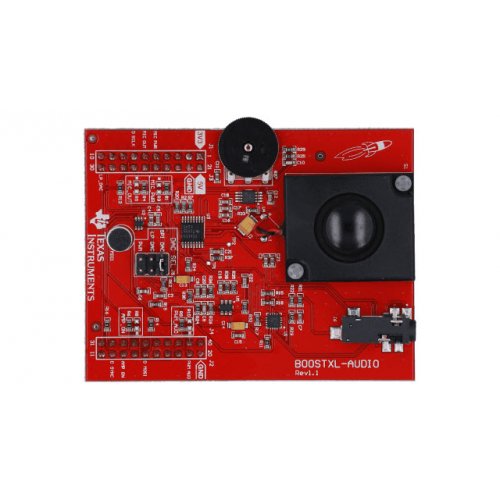

When plugged into a LaunchPad Development Kit, the BOOSTXL-AUDIO Audio BoosterPack Plug-in Module can capture audio input from a microphone and output audio through an on-board speaker. Headphone input and output is also supported. This audio input/output stream lets developers experiment with the digital signal processing (DSP) and filtering capabilities of the microcontroller (MCU) found on the attached LaunchPad Development Kit.

There are various options – selectable by a jumper on the BoosterPack – for connecting the speaker to the Launchpad’s MCU: (1) output audio data over SPI to the SPI DAC provided on the Audio BoosterPack; (2) directly connecting to the DAC on the LaunchPad’s MCU (if available); or (3) use the LaunchPad's PWM output together with a basic R/C filter on the BoosterPack, to create a simple, low-cost analog audio signal.

Features:

  • High quality audio playback with onboard 14-bit DAC (can be bypassed if target MCU has an integrated DAC)
  • Automatic switching from onboard speakers and microphone to a headset with microphone
  • Onboard microphone supports sampling rates of up to 20kHz

Documents:

Warranty:

  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

  • 1 x BOOSTXL-AUDIO BoosterPack Plug-In Module
  • 1 x Quick Start Guide

Write a review

Please login or register to review

Audio Signal Processing BoosterPack Plug-In Module

  • Brand: Texas Instruments
  • Product Code:TI-Audio-Plug-In-Module
  • Reward Points:43
  • Availability:In Stock
  • रo 4,268.00

  • Price in reward points:4268

  • 3 or more रo 4,234.00
  • 7 or more रo 4,200.00
  • 17 or more रo 4,166.00
  • 33 or more रo 4,131.00
