Compatible with ODROID-M1S

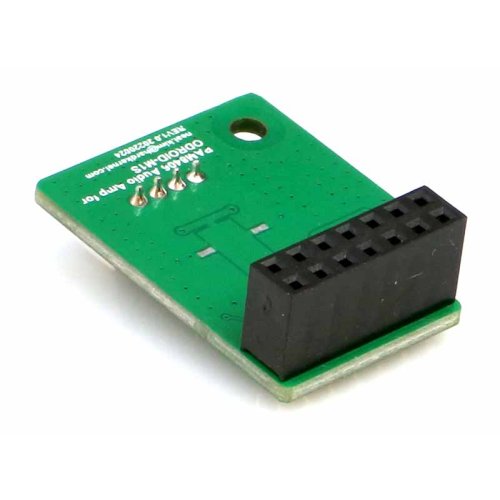

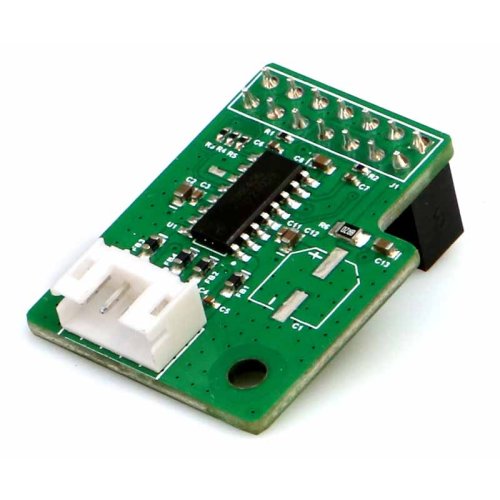

This is a speaker kit with on-board sound PAM8406 amplifier that can be used by plugging directly into the 14-pin header connector of ODROID-M1S.

  • System power noise may affect the audio circuitry, resulting in background noise in the audio output.
  • Therefore, we recommend that our customers do not use this board in applications requiring high sound quality.
  • You have to cut out parts of the 14-pin on the upper case to mount this Speaker Kit on the ODROID-M1S.

Note:

The supplier of the product has no replacement and/or refund policy as part of their product warranty/guarantee. Furthermore, the repair cost and the cost of shipping to and fro from South Korea has to be borne. As Fab.to.Lab is merely an intermediary we extend the exact same warranty terms to all customers of Harkernel.

Please find more details here: Supplier warranty terms and conditions: https://www.hardkernel.com/agreement/

Speaker Specifications:
  • Rated Impedance : 8Ω ±15% ( At 1kHz 1.0 Vrms )
  • Resonance Freq : Fb – 95Hz ±20%, Fo – 400Hz ±20% ( Without Baffle )
  • Output S.P.L. : 88 ±3dB ( At 0.1m 0.1w / 0.6, 0.8, 1.0, 1.2KHz Average )
  • Rated Power : 5.0W ( At 6.32 Vrms )
  • Max Power : 6.0W ( At 6.93 Vrms )
  • Frequency Range : Fo — 20kHz
  • Operation : Must be Normal at Rated Frequency Range ( Program Source 5.0W FO ~ 10kHz )
  • THD : 10% Max ( Rated Power Input 1000Hz )
  • Magnet : NdFeB

Documentation:

Package Includes:

  • 1 x Speaker Kit for M1S

Write a review

Please login or register to review

Speaker Kit for M1S

  • Brand: Hardkernel
  • Product Code:NR-Hdk-Speaker-Kit-M1S
  • Reward Points:11
  • Availability:In Stock
  • रo 1,052.00

  • Price in reward points:1052

  • 13 or more रo 1,043.00
  • 25 or more रo 1,039.00
  • 63 or more रo 1,035.00
  • 125 or more रo 1,026.00
