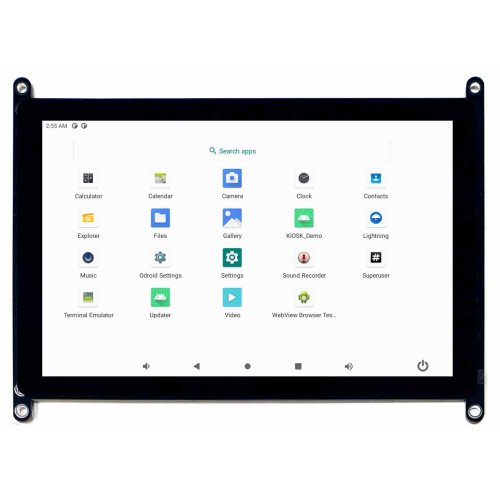

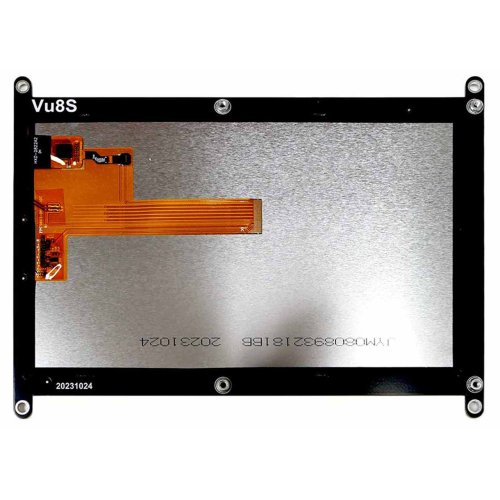

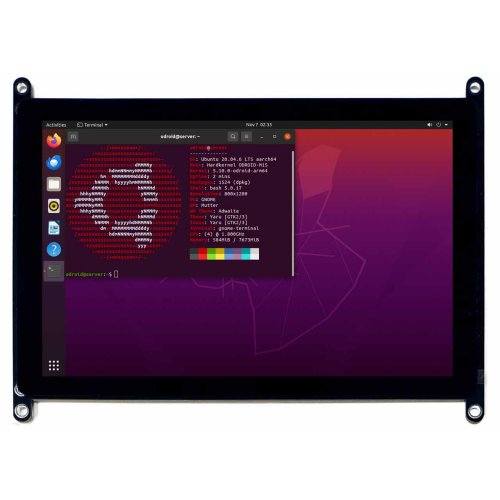

ODROID-M1S Vu8S 8inch MIPI LCD

  • The four-lane MIPI-DSI port can be directly connected to a LCD panel.
  • A 8inch 800×1280 wide viewing angle LCD and capacitive multi-touch screen is pre-assembled.
  • The ODROID-Vu8S is dedicated to ODROID-M1S. It can only be used via a MIPI DSI Connector(J7) on M1S.
  • The I type Bracket boards are required to dock Vu8S to assembled ODROID-M1S with case.

If you activate the MIPI-DSI interface, the HDMI output function will be disabled automatically.

This is because HDMI and MIPI-DSI can NOT be used simultaneously due to system memory bandwidth limitations.

Specifications:

  • 8-inch TFT-LCD
  • Portrait 800(H) x 1280(V) pixels hardware native resolution
  • Mechanical Dimensions : 202(W) x 153.0(H)
  • Viewable screen size : 172.224 x 107.64 mm (active area)
  • 5 finger capacitive touch input
  • Power consumption : 2.4W ± 10% (100% duty cycle)

Software Setting:

Note:

The supplier of the product has no replacement and/or refund policy as part of their product warranty/guarantee. Furthermore, the repair cost and the cost of shipping to and fro from South Korea has to be borne. As Fab.to.Lab is merely an intermediary we extend the exact same warranty terms to all customers of Harkernel.

Please find more details here: Supplier warranty terms and conditions: https://www.hardkernel.com/agreement/

Documentation:

Package Includes:


  • 1 x Assembled 8inch TFT LCD + multi touch screen
  •  3 x  M3 x 40(BLACK) Support( spare Included)
  •  7 x M3 x 7(BLACK) Bolt(spare Included)
  •  5 x M3 x 5(SILVER) Bolt (spare Included)
  • 1 x Vu8S LCD Frame Board for M1S
  •  2 x Vu8S I form Bracket Board for M1S

Write a review

Please login or register to review

Vu8S 8inch MIPI LCD for M1S

  • Brand: Hardkernel
  • Product Code:NR-Hdk-Vu8S-8inch-MIPI-LCD-M1S
  • Reward Points:51
  • Availability:In Stock
  • रo 5,128.00

  • Price in reward points:5128

  • 3 or more रo 5,086.00
  • 5 or more रo 5,065.00
  • 13 or more रo 5,044.00
  • 26 or more रo 5,001.00
