• C Tinkering Kit for ODROID-C2 /C1+

You’re probably itching to make some fun embedded computer projects with ODROID-C2 or C1+. What you need is an add on prototyping T-breakout board, which can break out all those tasty power, GPIO, I2C, ADC pins from the 40 pin header onto a solderless breadboard. This set will make “cobbling together” prototypes with the ODROID super easy.





With this T-type breakout board you can easily break out the GPIO pins of the ODROID-C1 on a breadboard to quickly start prototyping. The ribbon cable comes at the side of the breadboard so it won’t be in the way while working on yourproject.

This breakout also has the possibility to provide +5V and +3.3V to the power rails on a 630 points breadboard.

Simple project with the C1 Tinkering Kit.
19 LEDs + CdS light sensor will show you how ADC and LED work.
Notes:
The CdS is connected to the ADC #0 port with a 10Kohm ground bias. 3.3V – CdS – Cds – ADC – GND
The LED is connected to the GPIO via 330ohm in serial. GPIO – LED(A+) – LED(K-) – 330ohm – GND









Connect it to your ODROID-C1 with the Flat cable.


The example code and library can be found in our WiKi and Github repo.

Note:

The supplier of the product has no replacement and/or refund policy as part of their product warranty/guarantee. Furthermore, the repair cost and the cost of shipping to and fro from South Korea has to be borne. As Fab.to.Lab is merely an intermediary we extend the exact same warranty terms to all customers of Harkernel.

Please find more details here: Supplier warranty terms and conditions: https://www.hardkernel.com/agreement/

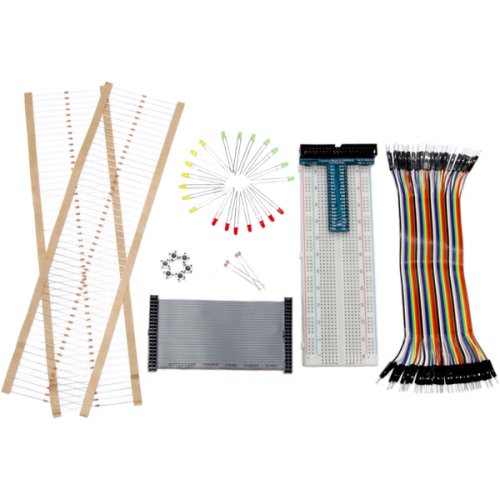

Package Includes :
  • 1 x Assembled T-breakout PCB –  40Pin GPIO Breakout board
  • 1 x Breadboard – 630 Tie-points with dual power lanes
  • 1 x 40pin Ribbon cable – IDC Flat cable 100mm
  • 1 x 40pin Male-to-Male Dupont jumper Wire 170mm
  • 7 x Green LED 3mm
  • 7 x Yellow LED 3mm
  • 7 x Red LED 3mm
  • 2 x Photo Cell (CdS Light sensor)
  • 6 x Tact Swithc
  • 50 x 330 Ohm 1/6W resister
  • 50 x 10K Ohm 1/6W resister
