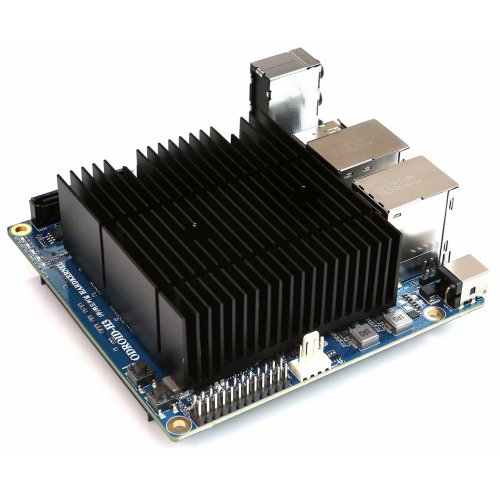

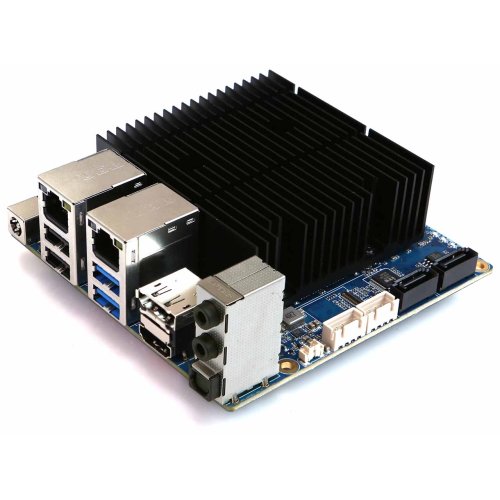

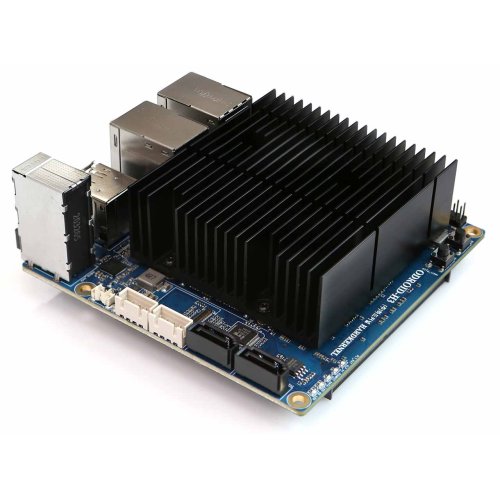

ODROID-H3+ has same form factor and similar power efficiency as their predecessor, the ODROID-H2+. But, H3+ is more powerful, offers higher performance.

Note:Option (19V/7A does not include 3pin AC power cord)

With great compatibility, a brand new x86 64-bit single board computer with large memory capacity and advanced IO ports.

  • Intel® Quad-Core Processor Jasper Lake N6005 has a base clock of 2GHz and a boost clock of 3.3GHz with 1.5MB L2 and 4MB L3 cache by a 10 nm process.
  • Up to 64GB Dual-channel Memory DDR4 PC4-23400 (2933MT/s)
  • Two SO-DIMM slots, up to 32GB per slot
  • PCIe 3.0 x 4 lanes for one M.2 NVMe storage
  • 2 x 2.5Gbit Ethernet ports
  • 2 x SATA 3.0 ports
  • SSE4.2 accelerator (SMM, FPU, NX, MMX, SSE, SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, AES)
  • Intel UHD Graphics 32 EUs Turbo 900MHz
  • HDMI 2.0 and DP 1.2 multiple video outputs
  • A configurable Unlimited Performance mode allowing the CPU to run in sustained turbo boost mode.
  • RTC / BIOS backup battery is included

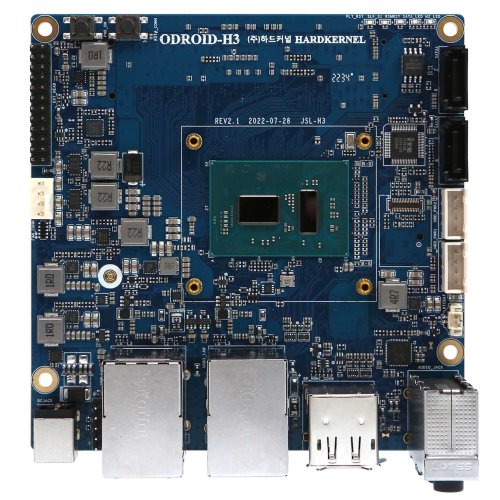

  • A. CPU (Intel Celeron N6005)
  • B. 2 x DDR4 SO-DIMM slots (Dual channel memory support)
  • C. 1 x M.2 PCI Express Module Socket (NGFF-2280)
  • D. 1 x eMMC (Embedded Multimedia-Card) Socket
  • E. 2 x SATA Power Connectors (2.5mm pitch, JST-XH compatible connector)
  • F. 2 x SATA3 6.0 Gb/s Data Connectors
  • G. 1 x DC Power Jack
  • H. 2 x USB 3.0
  • I. 2 x USB 2.0
  • J. 1 x HDMI 2.0
  • K. 1 x DisplayPort 1.2
  • L. 2 x RJ45 Ethernet Ports (10/100/1000/2500)
  • M. 5 x System LED Indicators
  • N. 1 x Peripheral Expansion Header (24-pin)
  • O. 1 x Power Switch
  • P. 1 x Reset Switch
  • Q. 1 x Backup Battery Connector (2-pin)
  • R. 1 x Active Cooling Fan Connector (4-pin)
  • S. 1 x Audio out, 1 x Audio in, 1 x SPDIF out

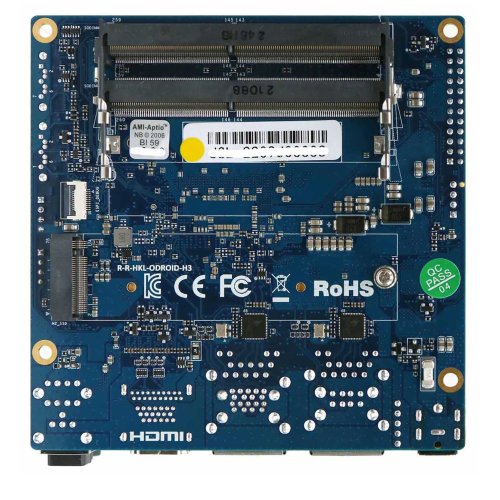

 -On the H3+ board, a yellow round sticker is attached on the product serial label and, on the H3 board, a green round sticker is attached.


Specifications :

Processor Intel Celeron N6005 Processor (10nm, Quad-Core, TDP 10W)
H3+(N6005) : up to 3.3Ghz
4MB L2 Cache
Intel UHD Graphics (24/32 EU up to 900MHz)
Memory 2 x DDR4 1.2V SO-DIMM slots
Dual Channel, up to 2933 MT/s (DDR4-PC23400)
Max memory capacity 64GB
DDR3/DDR5 are not supported
Storage 1 x eMMC connector (bootable and selectable on BIOS)
Various eMMC modules can be purchased at Hardkernel store
2 x SATA3 6Gbps
1 x M.2 slot (PCIe 3.0 x 4, supports NGFF-2280 cards)
M.2 SATA SSD is not supported
Networking 2 x GbE LAN ports (RJ45, supports 10/100/1000/2500 Mbps)
Realtek RTL8125B
Supports Wake-On-Lan
LED indicators (Green: Link, Amber: Traffic)
Video 1 x DisplayPort 1.2 (up to 4K@60Hz)
1 x HDMI 2.0 (up to 4K@60Hz)
Dual simultaneous display support
Audio 1 x Audio out (3.5mm jack)
1 x Audio in (3.5mm jack)
1 x SPDIF out (ALC1200, HDA codec)
* HDMI & DP have audio output too.
External I/O 2 x USB 3.0 Host ports
2 x USB 2.0 Host ports
1 x Peripheral Expansion Header (24-pin, 2.54mm pitch)
– 1 x DC 5V, 1 x DC 3.3V, 5 x GND
– 1 x UART (TXD/RXD/RTS/CTS)
– 2 x I2C (SCL/SDA)
– 1 x External Power Button
– HDMI CEC, 5VA+
– 3 x USB 2.0
– All 3.3V I/O signal level
Other features Passive Heatsink
BIOS Backup Battery
– Maintains system time and BIOS settings
Power Button
Reset Button
System LEDS Indicators:
– Red (PWR) – Solid light when DC power is supplied
– Blue (left, SLEEP) – turns off only when the system enters into suspend mode
– Blue (right, PMIC) – turns on only when the major power rails are working
– Amber (SATA) – Flashes when SATA data transfers
– Green (NVMe) – Flashes when NVMe data transfers
Active Cooling Fan Connector (12V 4-pin, PWM input + TACHO output)
– Active Cooling Fan is optional
– Connector (4-pin, 2.54mm pitch)
Power DC jack : outer (negative) diameter 5.5mm, inner(positive) diameter 2.1mm
DC 14V ~ 20V (up to 60W)
– DC 15V/4A power adapter is recommended if you don’t use two 3.5“ HDDs
– DC 19V/7A power adapter is recommended if you two 3.5” HDDs together
Power consumption:
– IDLE : ≃1..9W
– CPU Stress : ≃15W
– CPU+GPU Stress : ≃18W
– Power-off : ≃0.25W
– Suspend : ≃0.6W
Form Factor 110mm x 110mm x 47mm Approx.

Note:

The supplier of the product has no replacement and/or refund policy as part of their product warranty/guarantee. Furthermore, the repair cost and the cost of shipping to and fro from South Korea has to be borne. As Fab.to.Lab is merely an intermediary we extend the exact same warranty terms to all customers of Harkernel.

Please find more details here: Supplier warranty terms and conditions: https://www.hardkernel.com/agreement/

Documents :

Package Includes :

  • 1 x ODROID-H3+
