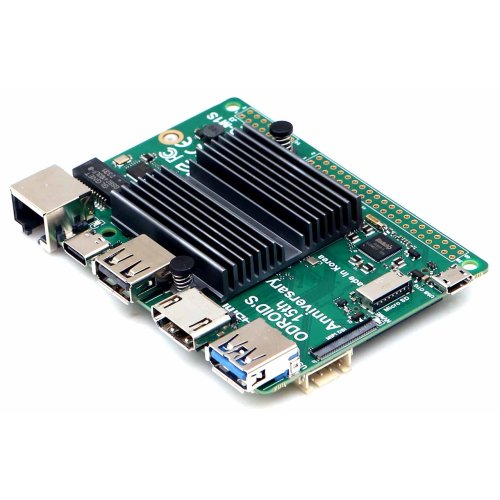

ODROID-M1S which was developed over the past six months to respond to market demands.

We made the board about 20% thinner, reduced power consumption by about 20%, added 14 header pins, and a built-in 64GB eMMC chip on the board. We have lowered the price including a case, heatsink, and power adapter. We believe this will help significantly reduce the cost of building your own affordable and sustainable embedded systems. To ensure longevity, which is important to customers using it for industrial purposes, we will supply this product until at least 2036.

By utilizing 3D modeling from the early PCB design stage, we were able to complete case development relatively precisely and rapidly.

It will be remembered for a long time as a novel development project in which collaboration between circuit design & mechanical design proceeded quite smoothly.

M1S PCB 3D model




The SOC in the M1S is the RK3566, which is the younger sister of the RK3568 used in the original M1. This allows most of the software development to be reused. Because the bootloader and kernel settings are different, existing OS images for M1 cannot be used as-is, but porting is quickly possible through a simple process.

For detailed internal configuration, please refer to the block diagram below.

On-board eMMC storage

For the first time in the ODROID board series, an eMMC chip was soldered to the PCB by default instead of using a removable eMMC module. We think 64GB capacity is sufficient for building most embedded systems.

The speed of eMMC measured with the fio command is approximately 180MiB/s, which is about 3~5 times faster than typical microSD cards.

On-board M.2 NVMe slot

In case the 64GB storage space of the soldered eMMC memory is insufficient, consider using an industry standard 2280 form factor NVMe SSD. An on-board M.2 NVMe slot is provided to access large amounts of data storage.

Unlike the original M1 model’s PCIe 3.0 x 2 lanes configuration, M1S has PCIe 2.1 x 1 lane. The NVMe transfer speed of the M1S has been reduced by about 1/4. However, we still believe that ~400 MiB/s of storage access speed is sufficient for building various high-end embedded systems.

Note :that M.2 SATA storage devices can not be used. The M.2 slot supports only a PCIe interface (M-Key).

Power consumption

To create the graph below, we turned on the M1S and recorded the power consumption until the Ubuntu Desktop OS boots and enters Idle mode. We used the SmartPower3 device to examine power characteristics.

-With Ethernet and HDMI monitor connected, the peak power consumption is close to 3.7 Watts during booting, but drops to 1.5 Watts in desktop GUI idle state.

-If you remove the HDMI monitor for a headless system, power consumption in idle mode drops to near 1.0 Watt. Additionally, please note that when the Ethernet cable is unplugged, the power drops to 0.7 Watt.

When performing a CPU stress test without either HDMI output or Ethernet connection, the power consumption is about 3.2 Watts. This shows    an energy savings of about 25% compared to the 4.3 Watts of the original ODROID-M1 under the same test conditions. Note that the computing    power of ODROID-M1S has been measured to be 5-10% lower than that of M1.

Thermal Characteristics

Thermal throttling does not occur even when performing a CPU stress test while mounted in a case. Because system power consumption is low,    less heat is generated. Cooling is sufficient with just the stock heatsink.

As shown in the graph below, when a stress test was performed on ODROID-M1S with a stock heatsink under room temperature conditions of 25°C, the CPU temperature did not exceed 65°C and maintained the maximum clock frequency.

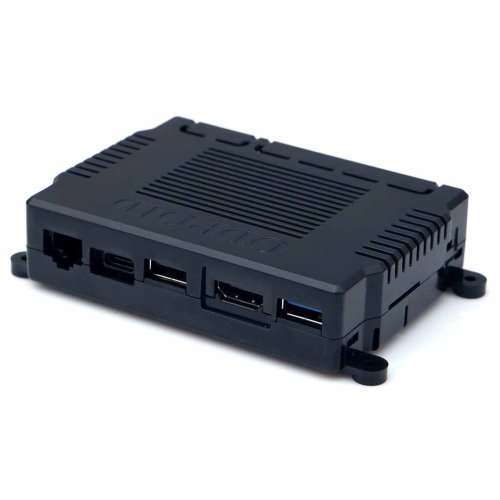

Even when assembled in the case, the CPU temperature did not exceed 75°C and thermal throttling did not occur.

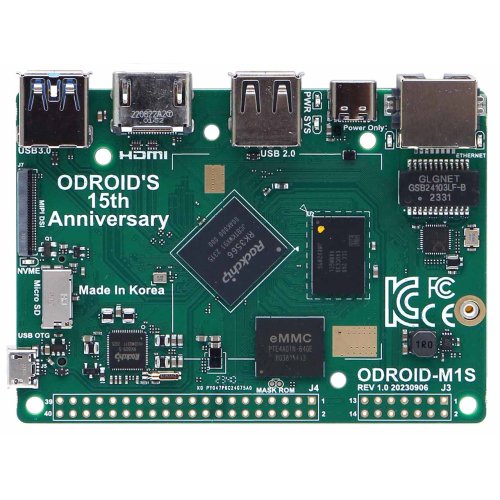

  1. Rockchip RK3566 CPU
  2. LPDDR4 RAM
  3. 1 x 64GB eMMC embedded
  4. 1 x Ethernet Transformer
  5. 1 x RJ45 Ethernet Port (10/100/1000)
  6. 1 x USB Type C Power Connector
  7. 1 x USB 2.0
  8. 1 x HDMI 2.0
  9. 1 x USB 3.0
  10. 1 x MIPI DSI 4Lane
  11. 1 x M.2 LED Indicator
  12. 1 x Micro SD Slot
  13. 1 x Micro USB2.0 OTG
  14. 40 x GPIO Pins Optional
  15. 14 x GPIO Pins Optional
  16. 1 x RTC Backup Battery Connector
  17. 1 x UART for System Console
  18. 1 x M.2. M-KEY PCIe2.1 1Lane

Specifications:

  • FORM FACTOR Board Dimensions: 90mm x 65mm x 16mm
  • PROCESSOR         Rockchip RK3566 Processor

                                            L1 instruction cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor

                                            L1 data cache: 32 KB, 4-way set associative (128 sets), 64 byte lines, shared by 1 processor

                                            L3 data cache: 512KB , 16-way set associative (512 sets), 64 byte lines, shared by

                                             4 processorsQuad-Core Cortex-A55 (1.8GHz)

                                            ARMv8-A architecture with Neon and Crypto extensions

                                            Mali-G52 MP2 GPU with 4 x Execution Engines (800Mhz)

  • NPU         0.8 TOPS@INT8, Integrated AI accelerator RKNN NPU

                                   Supports one-click switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet

  • MEMORY LPDDR4 4 or 8GiB with 32-bit bus width, Data rate: 2112 MT/s, up to 1,055MHz
  • STORAGE 1 x 64GB eMMC embedded (soldered to the PCB)

                                    1 x Micro SD slot (UHS-I SDR104, Boot priority is always higher than eMMC)

                                    1 x NVME M.2 SSD (PCIe 2.1 x 1 lane)

  • NETWORKING 1 x GbE LAN ports (RJ45, supports 10/100/1000 Mbps)

                                            Realtek RTL8211F Ethernet transceiver

                                            LED indicators

                                           Green LED: Flashing by data traffics at 100Mbps connection

                                           Amber LED: Flashing by data traffics at 1000Mbps connection

  • VIDEO                 1 x HDMI 2.0 (up to 4K@60Hz with HDR, EDID)

                                            1 x MIPI DSI Interface (30pin connector which is different from 31pin of the original ODROID-M1)

  • EXTERNAL I/O      1 x USB 2.0 host port

                                            1 x USB 3.0 host port

                                            1 x USB 2.0 micro OTG port

                                            1 x Debug serial console (UART)

                                             1 x 40 pin GPIO and 1 x 14 pin GPIO

  • OTHER FEATURES     RTC backup battery connector (to keep time and date for several months without main power input)

System LED Indicators:

           Red (POWER) – Solid light when DC power is connected

            Blue (ALIVE) – Flashing like heartbeat while Kernel is running. Solid On in the u-boot stage.

  • POWER 1 x USB Type C for Power only

                            DC input : 4.9V ~ 5.3V

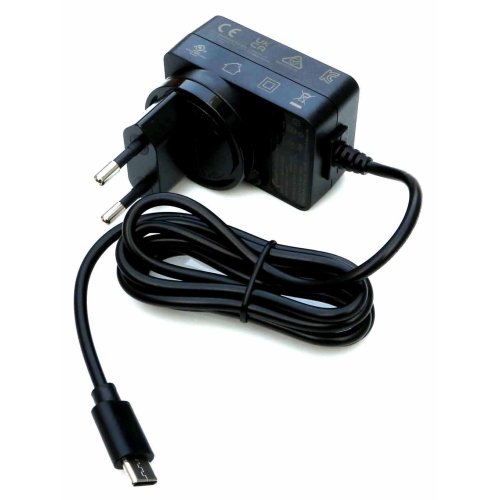

                           USB Type C 5V/3A power adapter is recommended

                           IDLE : ≃ 1.1W

                         CPU Stress : ≃ 3.52W (Performance governor)

                        Power Off :≃ 0W

Note: We recommend powering the ODROID-M1S with a bundle Type C 5V/3A power adapter.

Hardware Overview:


The CPU has four ARM Cortex-A55 processors with low power consumption & high efficiency operation at 1.8Ghz. A larger 8GB of LPDDR4 DRAM memory is available in addition to a 4GB model for reduced cost.

Note:

The supplier of the product has no replacement and/or refund policy as part of their product warranty/guarantee. Furthermore, the repair cost and the cost of shipping to and fro from South Korea has to be borne. As Fab.to.Lab is merely an intermediary we extend the exact same warranty terms to all customers of Harkernel.

Please find more details here: Supplier warranty terms and conditions: https://www.hardkernel.com/agreement/

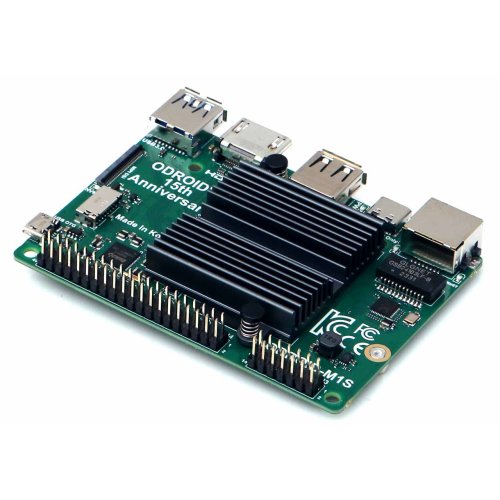

GPIO Header

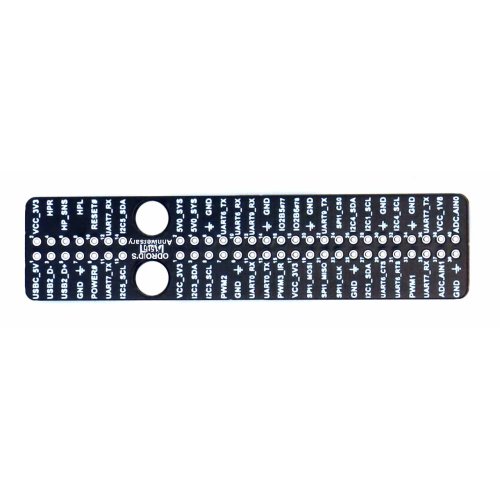

There are 40-pin and 14-pin header pin connectors for general purpose input and output functions. Digital IOs, UARTs, I2Cs, PWMs, ADCs, SPI, USB 2.0 host, Analog audio output, Power-on and Reset signals are available.

What we heard from many B2B and B2C customers is that they often didn’t use the actual GPIO functionality. Therefore, to lower production costs and product price, we decided to make GPIO header pin installation an option. If you choose the option to install 40-pin and 14-pin GPIO headers, $3 will be added to the price. An IO-labels board for easier DIY tinkering will also be provided.



MIPI-DSI

The four-lane MIPI-DSI port can be directly connected to an LCD panel.

The ODROID-Vu8S kit with an 8 inch, 800×1280 wide viewing angle LCD and capacitive multi-touch screen is an available option. Note that LCD connector is different from the one on the ODROID-M1.

If you assemble the ODROID-M1S single board computer on the rear side of the Vu8S kit, you can easily implement a Human-Machine-Interface (HMI) device with Android as well as Linux.



NPU

Since Machine Learning has been a trend in this industry, there is a neural network processing unit (NPU) which can deliver up to 0.8 TOPS on the M1S single board computer.

We could run various TensorFlow Lite and ONNX models on Ubuntu Linux OS. Here is an example of object detection.

Input image and Output image ( The input image source : https://commons.wikimedia.org/wiki/File:Traffic_in_Brasilia_before_Brazil_%26_Chile_match_at_World_Cup_2010-06-28_1.jpg )

As shown in the test results below, the object detection speed of the NPU is nearly 20 times faster than that of the CPU. For reference,

the NPU performance of M1S is about 10% lower than that of M1. We believe this is due to the difference in DRAM clocks.

Conf=0.25 CPU (ms) NPU (ms) NPU: Cam (fps)

M1S         1288.3                   70                      11.8

M1                  1225.7                  64.3                     13

  • CPU governor = performance
  • AI model = yolov5s.onnx(cpu) / yolov5s.rknn(npu)
  • Confidence threshold = 0.25
  • USB Camera = Logitech BRIO



Software support

Android 11

GPIO toggling

Rotary encoder with GPIO IRQ

PWM outputs

I2C (Color sensor, Temperature, Humidity, OLED, RTC)

SPI ( CAN receiver, LED strip lights, IO expander)

UART ( Loopback test, Barcode scanner, Thermal printer)

  • Ubuntu 20.04 LTS
    • Kernel 5.10.160
    • Wayland based GNOME desktop
    • ARM Mali Bifrost GPU OpenGL-ES / EGL driver
    • MIPI DSI driver
    • GPIO drivers and WiringPi library
    • NPU driver and Neural Network APIs
    • VPU driver with MPP/Gstreamer APIs
  • Ubuntu 22.04 LTS
    • Kernel 6.1.60
    • Wayland based Gnome/KDE desktop
    • ARM Mali Panfrost GPU driver for desktop OpenGL 3.x
    • MIPI DSI driver
    • GPIO drivers and WiringPi library

Representative application examples and videos

M1S + 6 channel stepper motor board and actual 3D printer operation video (via YouTube)

M1S + 4Channel Relay board controlling a home system.

Documentation:

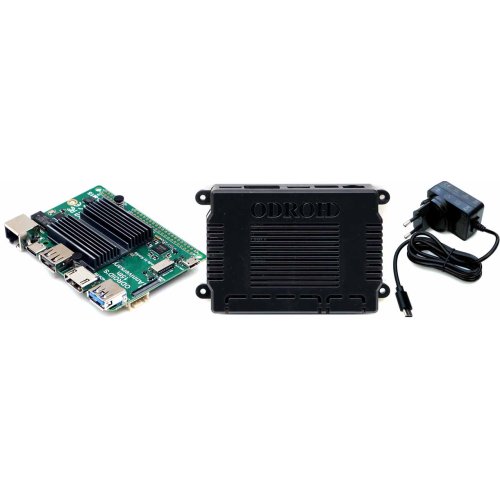

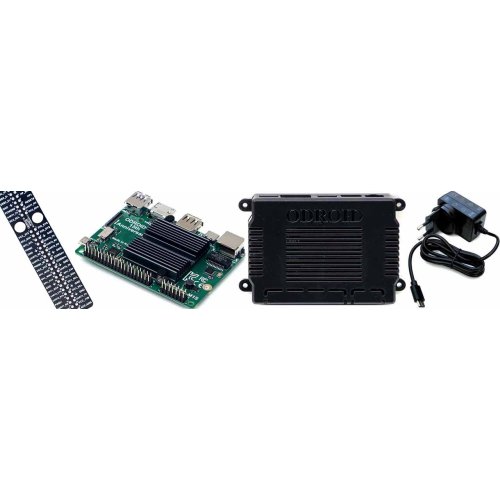

Package Includes:

  • 1 x ODROID-M1S
  • 1 x Power Adapter
  • 1 x Heat sink And Case
