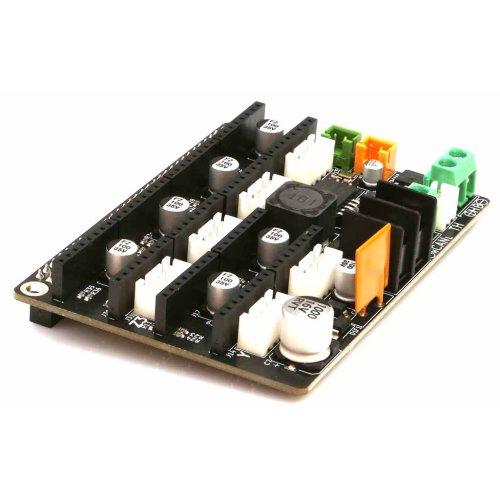

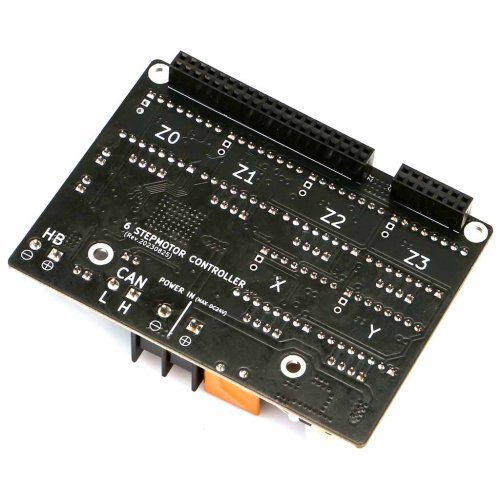

The Stepper motor Controller board is designed to control up to 6 step motors and support CAN-FD bus, its layout and pinout are especially organised for 3D printer.

On board DC step down power supply to provide 5V to ODROID-M1S

  • 6x step motor driver module support
  • 1x CAN-FD bus support
  • 1x ADC channel
  • 2x GPIO inputs
  • 1x MOSFET output


Note:

The supplier of the product has no replacement and/or refund policy as part of their product warranty/guarantee. Furthermore, the repair cost and the cost of shipping to and fro from South Korea has to be borne. As Fab.to.Lab is merely an intermediary we extend the exact same warranty terms to all customers of Harkernel.

Please find more details here: Supplier warranty terms and conditions: https://www.hardkernel.com/agreement/

Specifications:


  • Form Factor     Board dimension : 90 (L) x 65 (W) x 16 (H) mm
  • Power input     1x terminal block (7.62mm pitch)

                                       ODROID-M1S will be powered via this terminal.

  • I/O                     6x Step motor connector

                                        Step motor driver module is required.

                                       1x CAN bus

                                       1x ADC input

                                       1x MOSTFET output

                                       2x GPIO input (internal pull up)

Documentations:

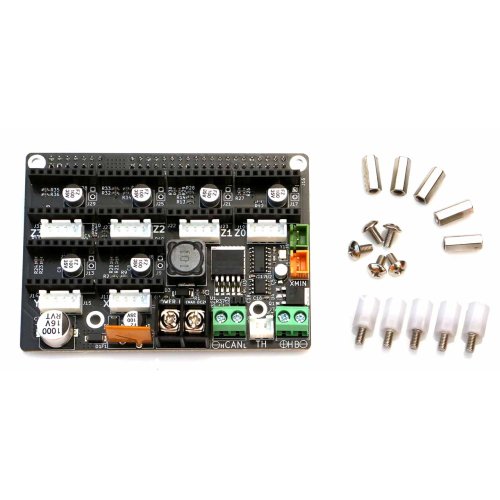

Package Includes:

  • 1 x 6 Channel Stepper Motor Controller Board for M1S

Write a review

Please login or register to review

6 Channel Stepper Motor Controller Board for M1S

  • Brand: Hardkernel
  • Product Code:NR-Hdk-6-Channel-Stepper-Motor
  • Reward Points:25
  • Availability:In Stock
  • रo 2,498.00

  • Price in reward points:2498

  • 5 or more रo 2,478.00
  • 10 or more रo 2,467.00
  • 25 or more रo 2,457.00
  • 53 or more रo 2,436.00
