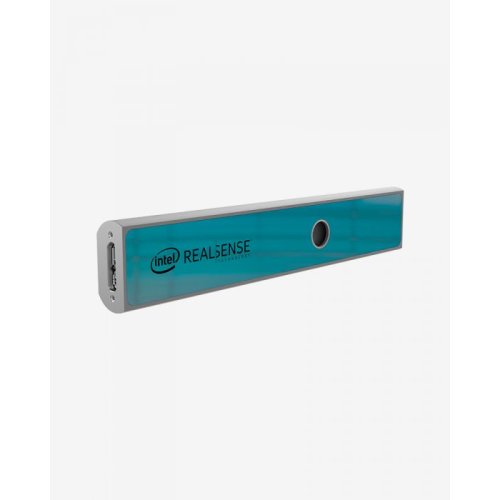

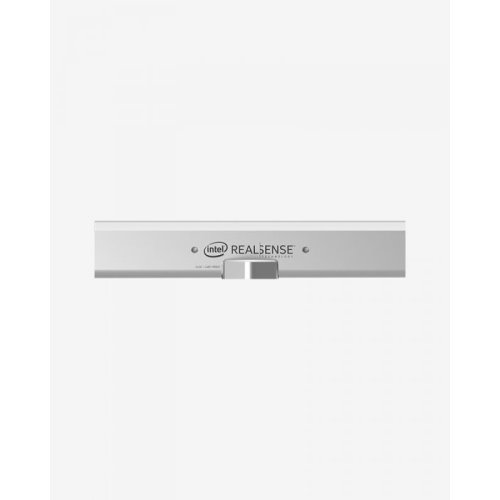

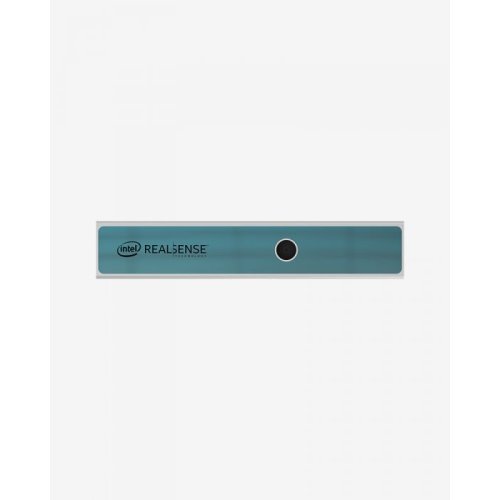

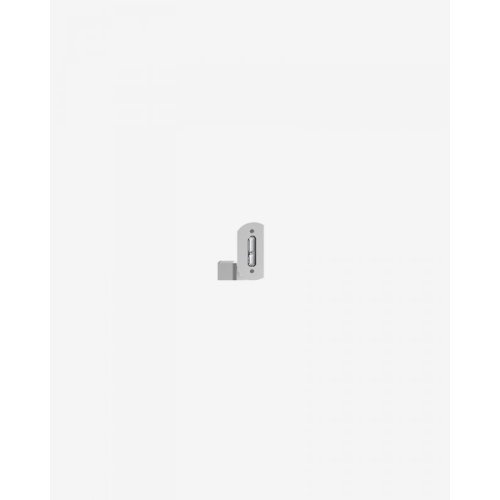

The Intel RealSense™ Depth Camera SR305 is optimized for best depth at 0.2-1.5m. As with other structured and coded light depth cameras, it functions best indoors or in a controlled lighting situation. It can also function well at lower light levels down to 0 Lux, since infrared light is being projected onto the scene from the camera.The Intel® RealSenseTM Depth Camera SR305 is supported with cross-platform and open source Intel RealSense™ SDK 2.0. Applications for the SR305 include: face analytics and tracking, scanning and mapping, scene segmentation, hand and finger tracking and augmented reality.

Specifications:


Use Environment Indoor
Depth Technology Coded Light
Main Intel® RealSense™ component Intel® RealSense™ Depth Module SR300
Depth Field of View (FOV)
(Horizontal × Vertical)
69°±3° x 54°±2°
Depth Stream Output Resolution Up to 640 x 480
Depth Stream Output Frame Rate Up to 60 fps
Minimum Depth Distance (Min-Z) 0.2m
Sensor Shutter Type Rolling Shutter
Maximum Range Up to 1.5m. Accuracy varies depending on calibration, scene, and lighting condition.
RGB Sensor Resolution and Frame Rate 1920 x 1080 at 30 fps
RGB Sensor FOV
(Horizontal x Vertical)
68° x 41.5° (±2°)
Camera Dimension
(Length x Depth x Height)
139 mm x 26.13 mm x 12** mm
** 20.80 mm with the mounting bracket
Connectors USB* 3.1 Gen 1* Micro B
Mounting Mechanism - Two M3x0.5 mounting points.
- Additional mounting bracket with one 1/4‑20 UNC thread mounting point. Tripod.

Package Includes :

  • 1 x SR305
  • 1 x USB A-Male to Micro B cable (1 meter)
  • 1 x Mini Tripod
  • Additional mounting bracket with one 1/4‑20 UNC thread mounting point to use with tripod with 2 machine screws

Write a review

Please login or register to review

Intel RealSense Depth Camera SR305

  • Brand: Intel
  • Product Code:Intel-RealSense-Depth-Camera-SR305
  • Reward Points:94
  • Availability:Discontinued
  • रo 9,370.00
  • रo 9,050.00

  • Price in reward points:9370
