| CPU | Model: Allwinner H3 |
| Number of Cores: Quad-core | |
| Frequency: 4*Cortex-A7 Up to 1.2GHz | |
| GPU | Mali400MP2@600MHz，Supports OpenGL ES2.0 |
| Memory | RAM: 1GB DDR3 |
| Storage | eMMC: 8GB |
| MicroSD Slot: MicroSD*1 for external storage up to 128GB | |
| Connectivity | Ethernet: Gbps Ethernet |
| WiFi: 802.11b/g/n | |
| Bluetooth: 4.0 dual mode | |
| Antenna*1: IPX Connector | |
| Audio | Audio Output: 3.5mm jack/Via HDMI |
| Audio Input: onboard microphone | |
| Video Input | DVP Camera: 0.5mm pitch 24 pin FPC seat |
| Video Output | HDMI Type-A*1: v1.4, 4K@30fps |
| CVBS*1(its video output is the 3.5mm audio jack) | |
| USB | MicroUSB*1: MicroUSB 2.0, OTG & Power In, Type A |
| USB Host: USB 2.0*3, USB Type A *2 and 2.54mm pitch pin-header*1 | |
| Pin-header | GPIO: 40pin, 2.54mm pitch pin-header, compatible with RasberryPi 2's GPIO. It contains UART, SPI, I2C, I2S/PCM, SPDIF-OUT and IO |
| Serial Debug Port: 2.54mm pitch 4-pin-header | |
| USB Host: 2.54mm pitch 4-pin-header | |
| Button | Power Button*1 |
| Reset Button*1 | |
| LED | Power LED(Green)*1 |
| System Status LED(Blue)*1 | |
| Others | IR: onboard IR receiver |
| Working Temperature: -20℃ to 70℃ | |
| Power | DC 5V/2A |
OS Software:
| OS Support | FriendlyCore( based on UbuntuCore-16.04 ) |
| Third party: Armbian, DietPi, Lakka, OpenWrt etc | |
| Kernel version | Linux-4.14-LTS |
| U-boot-2017.11 |
Dimension :
| PCB | 6 Layer |
| Dimension | 40*40mm |
Package Includes:
- 1 x NanoPi M1 Plus
- 1 x MicroUSB Cable
- 1 x Antenna(Bonus)

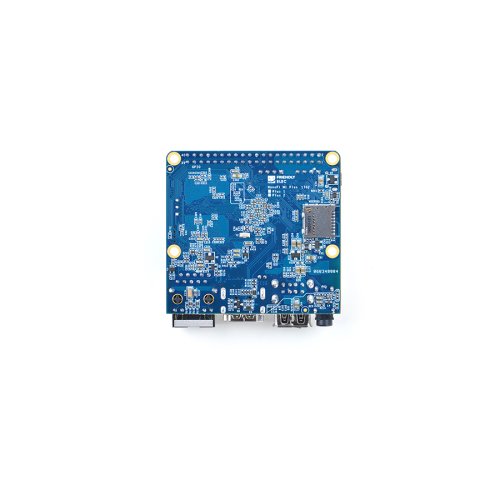

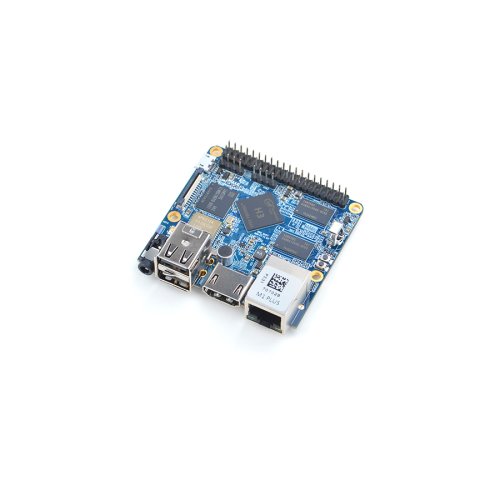

NanoPi M1 Plus
- Brand: FRIENDLYARM
- Product Code:FARM-Nano-Pi-M1-Plus
- Reward Points:41
- Availability:In Stock
- रo 4,127.00
-
रo 3,467.00
- Price in reward points:4127
-
- 3 or more रo 4,094.00
- 7 or more रo 4,061.00
- 17 or more रo 4,028.00
- 34 or more रo 3,995.00
