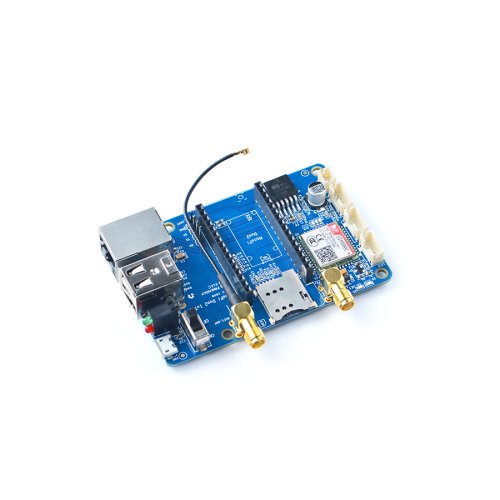

• IoT-2G Application Carrier Board for NanoPi Duo2/Duo



Hardware Specification:

GSM/GPRS SIM800C GSM/GPRS module
GSM/GPRS 850/900/1800/1900MHz
GPRS multi-slot class 12/10
GPRS mobile station class B
Connectivity GSM/GPRS SMA Antenna port x1
IPX to SMA antenna converter for an WiFi antenna x1
MicroSIM Card Slot x1
USB 2.0 Host x2
10/100M Ethernet port x1
Port I2C0 Port x1: 4pin 2.0mm pitch
UART1 Port x1: 4pin 2.0mm pitch
Audio Port x1: 4pin 2.0mm pitch
CVBS Port x1: 2pin 2.0mm pitch
Serial Debug Port: 2.54mm pitch 4-pin-header
LED Power LED(Red) x1
GPIO LED(Green) x1
2G-NET LED(Blue) x1
2G-STAT LED(Yellow) x1
Power MicroUSB(power only) DC 5V/2A
Power ON/OFF Switch x1
Dimension 85*56mm
Weight

45g


Package Includes:

  • 1 x IoT-2G Application Carrier Board for NanoPi Duo2/Duo
  • 1 x Wi-Fi Antenna(Bonus)
  • 1 x GSM/GPRS Antenna(Bonus)
