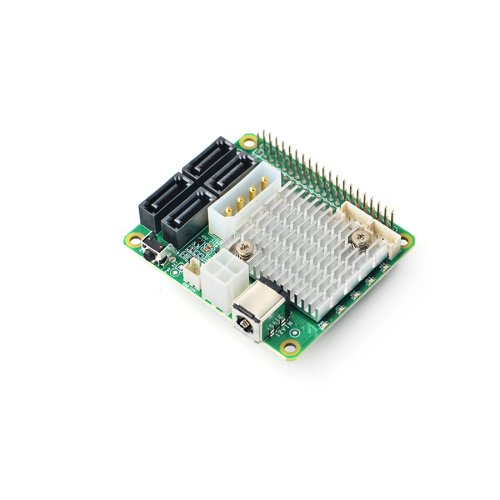

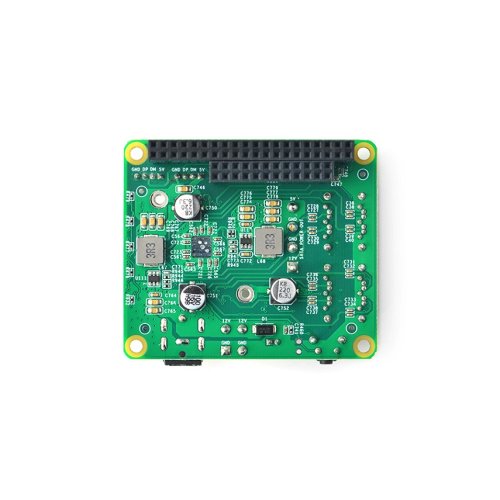

The NanoPi M4 SATA HAT has four SATA ports which support three communication rates: 6Gbps, 3Gbps and 1.5Gbps. Its 4-pin power connectors includes a 12V and 5V outputs and is able to carry large currents.
It has four LEDs for indicating the status of each SATA port.
It has two 12V-power input options: one DC-Jack and one 5566-04A connector. The output current of the 12V to 5V DC/DC regulator is upto 8A. It has powerkey button, a Powerkey jumper and two 4-pin PH2.0 USB 2.0 host connector.
It has two PCB nuts for mounting a heatsink above the PCIe to SATA bridge and one 2-Pin PH2.0 connector for fan. The 12V outputmodulated by PWM1. It populates all the signals from the NanoPi M4's 40-PIN connector.

Specifications:
  • SATA
    • Use Marvell 88SE9215 Four-Port 6 Gbps SATA I/O Controller
    • Four SATA Ports. It supports three communication rates: 6 Gbps, 3 Gbps, and 1.5 Gbps
    • One 4-Pin power connector. It includes a 12V and a 5V outputs and is able to carry large currents
    • Four LEDs for indicating the status of each SATA port
  • Power
    • Two 12V Power Input options. It includes a 5.5*2.1mm DC-Jack and a 5566-04A connector
    • The output current of the 12V to 5V DC/DC regulator is up to 8A
    • One PowerKey button and PowerKey jumper
  • USB
    • Two 4-PIN PH2.0 USB 2.0 host connectors.
  • Heat dissipation
    • Two PCB nuts for mounting a heatsink above the PCIe to SATA bridge
    • One 2-PIN PH2.0 connector for the fan. The 12V output is modulated by PWM1.
  • GPIO

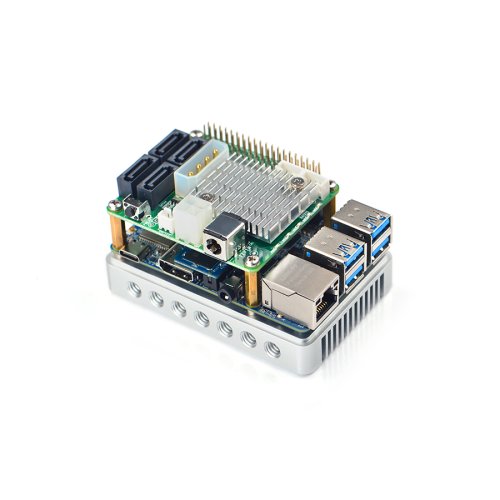

    • ALL the signals of the NanoPi M4’s 40-PIN connector are populated
  • OS Support
    • FriendlyCore 18.04 (64bit)
    • FriendlyDesktop 18.04 (64bit)
    • Lubuntu 16.04 (32bit)
  • Kernal version
    • Linux-4.4-LTS
    • U-boot-2014.10
  • Board Support- NanoPi M4
  • Dimensions – 65 x 56 mm
Package Includes:
  • 1 x M4 SATA HAT
  • 1 x Heat sink with paste and screw
  • 1 x SATA power cable
  • 2 x SATA interface cable
  • 4 x M3x16.6+6mm Hex Screw Post
  • 4 x M3x6mm Round Head Screw
  • 4 x M3 Nut

Write a review

Please login or register to review

4x SATA HAT for NanoPi M4

  • Brand: FRIENDLYARM
  • Product Code:FARM-NanoPi-M4-SATA
  • Reward Points:36
  • Availability:In Stock
  • रo 3,558.00
  • रo 2,989.00

  • Price in reward points:3558

  • 4 or more रo 3,529.00
  • 8 or more रo 3,501.00
  • 20 or more रo 3,472.00
  • 40 or more रo 3,444.00
