Features:

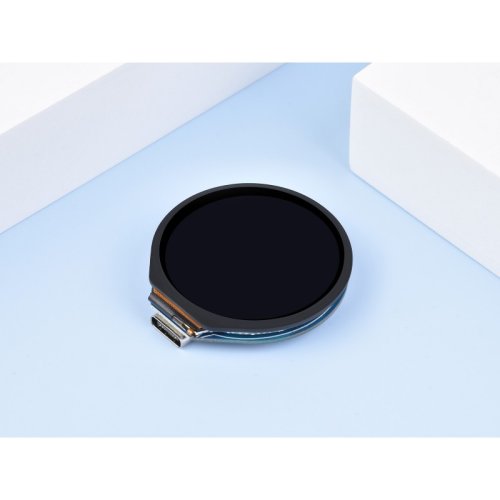

ESP32-S3-Touch-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare, tiny size, with onboard 1.28inch capacitive touch display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, which makes it easy for you to develop and integrate it into products quickly.
Key features include:
  • Equipped with Xtensa® 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth® 5 (LE), with onboard antenna
  • Built in 512KB of SRAM and 384KB ROM, with onboard 2MB PSRAM and an external 16MB Flash memory
  • Type-C connector, keeps it up to date, easier to use

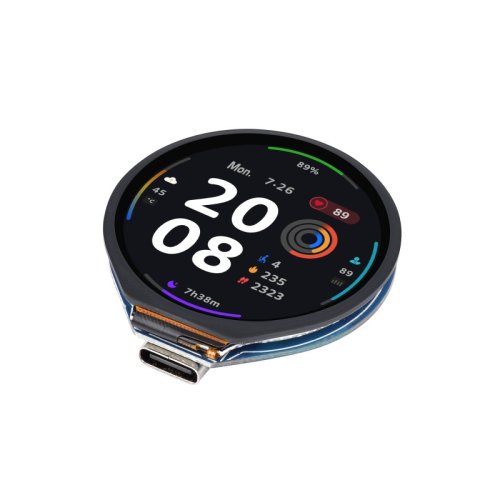

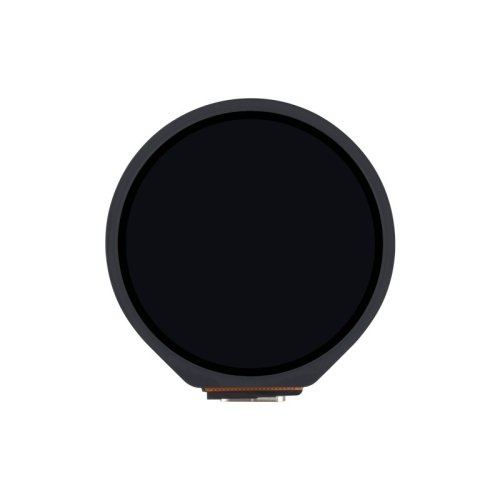

  • Onboard 1.28inch capacitive touch display, 240×240 resolution, 65K color
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture
  • Onboard 3.7V lithium battery recharge/discharge header and 6 × GPIO pins via SH1.0 connector
  • Supports flexible clock, module power supply independent setting, and other controls to realize low power consumption in different scenarios
  • Integrated with USB serial port full-speed controller, GPIO pins allows flexibly configuring pin functions

Small Size, Touch More Possibilities:

  • Suitable For Various Smart Devices Development, Can Realize Human-Computer Interaction Function

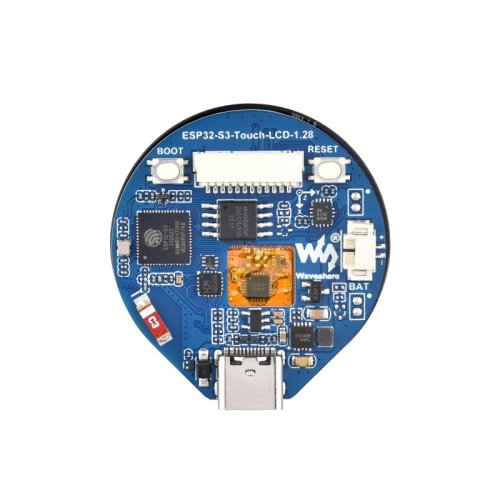

What's On Board:


  • ESP32-S3R2
    • The SoC with WiFi and Bluetooth, up to 240MHz operating frequency, with onboard 2MB PSRAM
  • W25Q128JVSIQ
    • 16MB NOR-Flash
  • CH343P
    • USB to UART chip
  • ME6217C33M5G
    • 800mA output, low dropout, high rejection rate
  • ETA6096
    • high-efficiency Lithium battery recharge manager
  • QMI8658
    • 6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer.
  • MX1.25 battery header
    • MX1.25 2P connector, for 3.7V Lithium battery, supports charging and discharging
  • USB Type-C connector
    • supports USB1.1 hosts and slave devices
  • RESET button
  • BOOT button
    • Press it before resetting to enter download mode

Pin Definition:


Documentations:

Package Includes:

  • 1 x ESP32-S3-Touch-LCD-1.28

Write a review

Please login or register to review

Waveshare 25098 ESP32-S3 Development Board, with 1.28inch Round Touch LCD, Compact size, Accelerometer And Gyroscope Sensor

  • Brand: Waveshare Electronics
  • Product Code:WaveS-25098-ESP32-S3-Development-Board
  • Reward Points:23
  • Availability:In Stock
  • रo 2,290.00
  • रo 1,923.00

  • Price in reward points:2290

  • 6 or more रo 2,271.00
  • 13 or more रo 2,253.00
  • 30 or more रo 2,235.00
  • 65 or more रo 2,216.00
