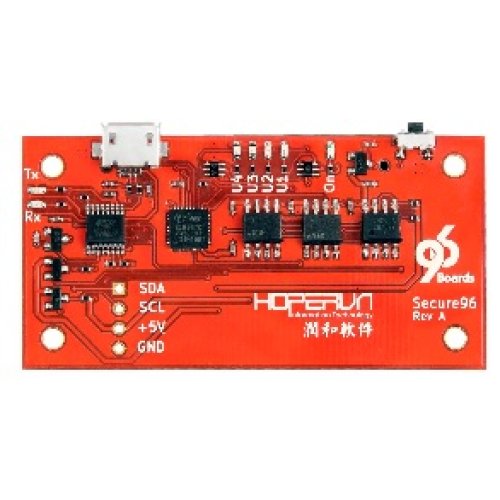

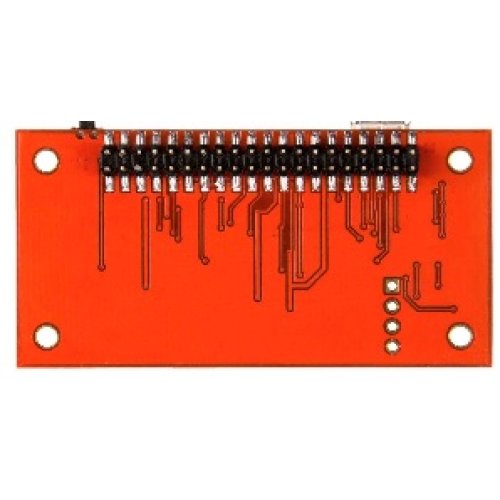

This mezzanine board is intended for security development on 96Boards and features the Infineon SLB9670, Atmel ATSHA204A, and the Atmel ATECC508A chip sets. With 128Kb of onboard storage, a PC TPM/embedded TPM chip, and a FT230XS-R UART connector for debug, it is an ideal addition to your 96Boards tool box.

Features :

  • SoC
    • Infineon SLB9670
    • Atmel ATSHA204A
    • Atmel ATECC508A
  • Certifications
    • CC EAL4+
  • Sub Application
    • PC TPM/embedded TPM
  • Storage
    • 128KB onboard Flash
  • Symmetric Cryptography
    • AES/HMAC/SHA-1/SHA-256
  • Asymmetric Cryptography
    • ECC/ECC BN-256/ECC NIST
    • P256/ECC256/ECDH/RSA1024/RSA2048
  • Connectors
    • FT230XS-R UART debug
  • Expansion Interface
    • 40 Pin Low-speed expansion
  • Digital Output (V)
    • 1.8V
  • Analog Input (V)
    • 0V-1.8V
  • Size
    • 60x30mm

Package Includes :

1 x 96Boards Secure96 Mezzanine Board



Write a review

Please login or register to review

96Boards Secure96 Mezzanine Board

  • Brand: 96 Boards
  • Product Code:96Boards-Secure96
  • Reward Points:45
  • Availability:Order now and get it in 15 days
  • रo 4,528.00

  • Price in reward points:4528

  • 3 or more रo 4,492.00
  • 6 or more रo 4,456.00
  • 15 or more रo 4,419.00
  • 30 or more रo 4,383.00
