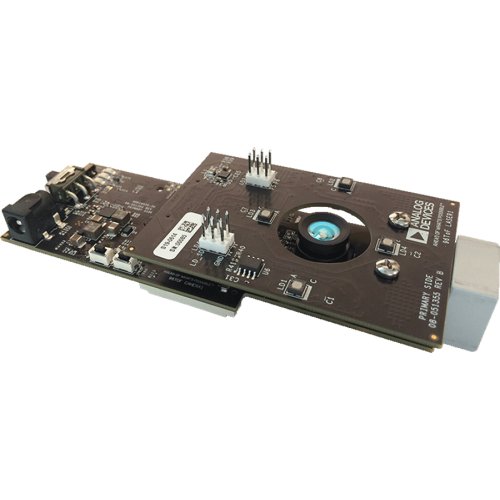

Analog Devices 3D Time Of Flight Mezzanine Stack
3D Time of Flight (ToF) creates a depth mapping of objects within the field of view and is a key solution used for developing digital vision for many applications. The development platform comes with everything a user needs to start working immediately on 3DToF applications, enabling the development of high value features and functions that create product differentiation.
Applications:
- INDUSTRIAL
- Automated vehicles
- Safe zone operation
- Robotics
- BUILDING MANAGEMENT
- Surveillance applications
- SLAM
- AUTOMOTIVE
- Gesturing
- Passenger Monitoring
Additional Information:
| Specifications | Typical | ||||||||
| DC Input | 5 VDC | ||||||||
| Range | Up to 6m | ||||||||
| FoV | 90° x 69.2° | ||||||||
| VCSEL | 940nm | ||||||||
| Accuracy | Near: 20cm to 1.2m; < 2.5% accuracy | ||||||||
| Mid: 1m to 2.6m; < 2% accuracy | |||||||||
| Far: 2.6m to 6m; < 1% accuracy | |||||||||
| Frame Rate | Up to 30fps | ||||||||
| Resolution | 640 x 480 | ||||||||
| Operating Temperature | 0° to 60°C | ||||||||
| I/O Options for DragonBoard 410c | USB 2.0, Ethernet, Wi-Fi | ||||||||
| 802.11agn, I²S, HDMI, I²C, MIPICSI, MIPI-DSI, SDIO, USB 2.0, | |||||||||
| 16 Configurable GPIO | |||||||||
| Additional RPI connector on Mezzanine board for connection to other compatible CPU boards | |||||||||
| Processor | Qualcomm 410E processor | ||||||||
| EEPROM | 1Mb storage | ||||||||
| SD/uSD | Removeable uSD card slot | ||||||||
Documentations:
Package Includes:
- 1 x 96Boards Analog Devices 3D Time Of Flight Mezzanine Stack
96Boards Analog Devices 3D Time Of Flight Mezzanine Stack
- Brand: 96 Boards
- Product Code:NR-96Boards-Analog-Devices
- Reward Points:107
- Availability:Out Of Stock
-
रo 105,005.00
- Price in reward points:107590
-
- 2 or more रo 104,145.00
