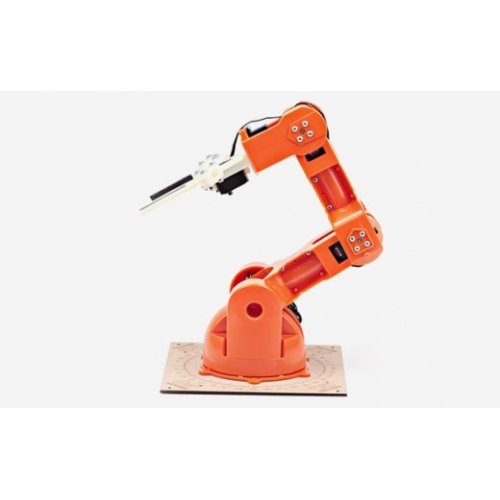

The TinkerKit Braccio is a fully operational robotic arm, controlled via Arduino. It can be assembled in several ways for multiple tasks such as moving objects. You can also attach a camera or solar panel. There are so many ways in which the Braccio can extend the reach of your devices.
Specifications:
Fully assembled Braccio Kit:
- Weight - 792 g
- Maximum operating distance range - 80 cm
- Maximum Height - 52 cm
- Base Width - 14 cm
- Gripper Width - 90 mm
- Cable length - 40 cm
-
Load Capacity
- Maximum weight at 32 cm operating distance: 150 g
- Maximum weight at the minimal Braccio configuration: 400g
Servo Technical:
- SpringRC SR431 - Dual Output Servo
- Control Signal - PWM Analog
-
Torque
- @ 4.8V: 169.5 oz-in (12.2 kg-cm)
- @ 6.0V: 201.4 oz-in (14.5 kg-cm)
- Weight - 2.19 oz (62.0 g)
- Dimentions - 1.65×0.81×1.56 in (42.0×20.5×39.5 mm)
-
Speed
- @ 4.8V: 0.20 sec/60°
- @ 6.0V: 0.18 sec/60°
- Rotation Support - Dual Bearings
- Gear Material - Metal
- Rotation Range - 180°
- Connector Type - J (aka Futaba)

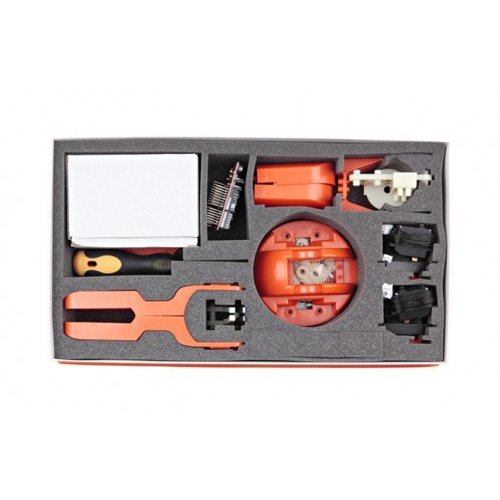

Package Includes:
- 21 x Plastic Parts
- 63 x Screws
- 16 x Flat Washer
- 7 x Hexagon Nut
- 2 x Springs
-
Servo Motors:
- 2 x SR 311
- 4 x SR 431
- 1 x Arduino compatible Shield
- 1 x Power Supply 5V, 5A
- 1 x Phillips Screwdriver
- 1 x Spiral Cable Protection Wrap
Note: Arduino Board not included
Arduino TinkerKit Braccio Robot
- Brand: Arduino
- Product Code:Ard-TinkerKit-Braccio-Robot
- Reward Points:289
- Availability:Order now and get it in 15 days
-
रo 30,275.00
- Price in reward points:28950
-
- 4 or more रo 18,575.00
