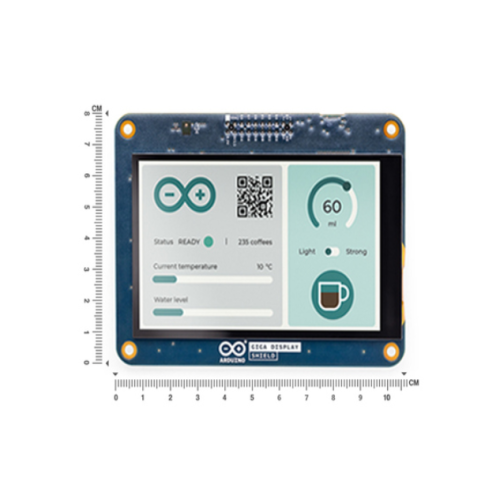

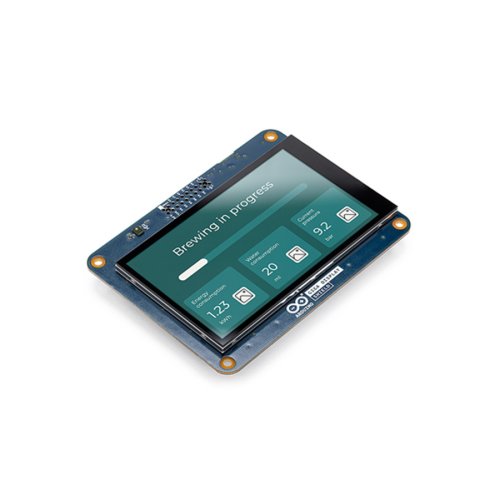

The Arduino GIGA Display Shield, a touch screen solution designed to effortlessly deploy graphic interfaces in your projects. Leveraging the new pin header connector in the middle of Arduino GIGA R1 WiFi Development Board, this shield offers seamless integration and enhanced functionalities.

With the GIGA Display Shield, you gain access to an array of features, including a digital microphone, 6-axis IMU, and Arducam connector. These added capabilities allow you to fully utilize the other 54 available pins, making it incredibly convenient to create handheld devices or dashboards to control your project.

Figure: Board Overview of the Arduino GIGA Display Shield

Figure: Connect The Arduino GIGA Display Shield and Arduino GIGA R1 WiFi Development Board

Figure: Connect The Arduino GIGA Display Shield and Arducam

How to connect the GIGA Display Shield to the GIGA R1 WiFi?

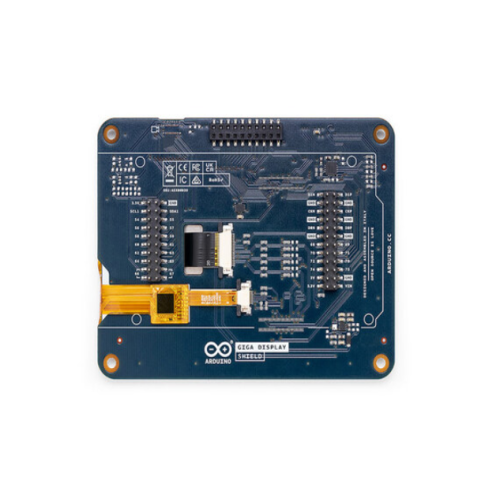

The GIGA Display Shield connects via the middle headers (J5 and J6) on the GIGA R1 WiFi. Attach the shield from the bottom, leaving the top side of the GIGA R1 WiFi available for additional shields.

Specifications:

KD040WVFID026-01-C025A 3.97" TFT Display

• 480x800 resolution

• 16.7 million colors
• 0.108 mm pixel size
• Capacitive Touch sensor
• 5-point and gesture support
• Edge LED backlight

BMI270 6-axis IMU (Accelerometer and Gyroscope)

• 16-bit
• 3-axis accelerometer with ±2g/±4g/±8g/±16g range
• 3-axis gyroscope with ±125dps/±250dps/±500dps/±1000dps/±2000dps range

SMLP34RGB2W3 RGB LED

• Common Anode
• IS31FL3197-QFLS2-TR Driver with integrated charge pump

MP34DT06JTR Digital Microphone

• AOP = 122.5 dbSPL
• 64 dB signal-to-noise ratio
• Omnidirectional sensitivity
• –26 dBFS ± 3 dB sensitivity

I/O

• GIGA Connector
• 2.54 mm Camera Connector

Applications:

• Graphic interfaces deployment with added features.

Note: The GIGA Display Shield requires a GIGA R1 WiFi board to function. It has no microcontroller and cannot be programmed independently.

Documentations:

• Datasheet
• Schematics

Package Includes:

• 1 x Arduino GIGA Display Shield
