The UB0240 is a new member of the Arducam’s USB camera family. It’s a 8MP, UVC compliant, USB 2.0 camera. This USB camera is based on the 1/3.2” Sony IMX179 image sensor.Arducam 8 Megapixel Auto Focus Mini USB Camera, 1/3.2” Sony IMX179 Sensor UVC USB 2.0 Video Webcam with Microphone, Ultra HD 3264*2448 Embedded USB Camera for Industrial, Compatible with Linux, Windows, Android and Mac OS

Features:

  • Ultra HD 8MP USB camera – Autofocus lens with 8MP CMOS IMX179 (3264*2448@15fps), high-Definition resolution webcam is able to ensure your videos are always sharp and crystal clear. Capture most exciting details at every 30/15fps, FoV: 58°(H)
  • 1/3.2” CMOS IMX179 Image sensor Webcams: High quality and low color reproduction deviation produce sharp images and more details. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial.
  • Mini-sized: Small and compact size is perfect for embedded applications, and ideal for Video systems, 3D scanners, VR cameras, electronic microscopes, and medical machines.
  • Plug and Play: OTG supported, just plug the USB cable into your PC’s USB port, and running the software can capture the high-level video and continuous recording, no drive needed.
  • Wide Compatibility: USB webcam widely works with WinXP/Vista/Windows 7/8, Windows 10 Linux with UVC. Webcam for MAC, PC, desktop computer, laptop USB.

Specifications:

  • Camera:
    • - Sensor: 1/3.2” IMX179
    • - Resolution: 3264(H) x 2448(V)
    • -Frame Rate: MJPG 15fps@3264 x 2448/2592 x 1944/2048 x 1536; 30fps@1920 x 1080/1600 x 1200/1280 x 720/800 x 600/640 x 480; YUY2 2fps@3264 x 2448/2592 x 1944; 5fps@1920 x 1080/1600 x 1200/1280 x 960; 10fps@1280 x 720; 20fps@800 x 600; 30fps@640 x 480.
  • Lens:
    • -Field of View (FOV): 58°(H)
    • -Lens Mount: M6.5*P0.25
    • -IR Sensitivity: Integral 650 IR filter, only visible light
  • Functionality and Compatibility:
    • -Adjustable parameter: Saturation, Contrast, Acutance, White balance, Exposure.
    • -System Compatibility: Windows XP (SP2, SP3)/Vista/7/8/10, Linux, and Mac with UVC
  • Power:
    • -Power supply: USB powered 5V
    • -Working Current: MAX 300mA
  • Physical:
    • -Operating Temp: -4°F~158°F (-20°C~+70°C).

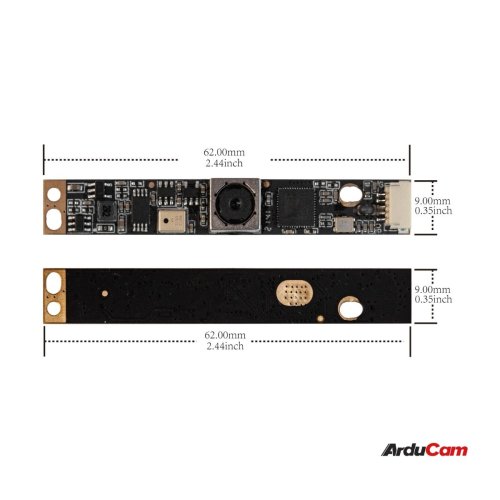

    • -Dimension: 62mmx9mmx6mm
    • -Cable Length: 3.3ft (1M)

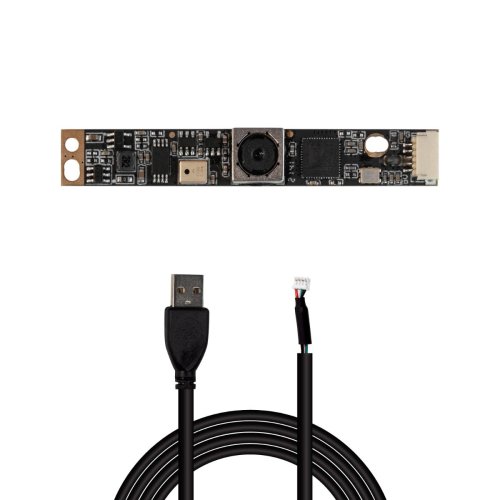

Package Includes:

  • 1 Arducam 8 Megapixel Auto Focus Mini USB Camera, 1/3.2” Sony IMX179 Sensor UVC USB 2.0 Video Webcam with Microphone, Ultra HD 3264*2448 Embedded USB Camera for Industrial, Compatible with Linux, Windows, Android and Mac OS

Write a review

Please login or register to review

Arducam UB0240 8 Megapixel Auto Focus Mini USB Camera, 1/3.2” Sony IMX179 Sensor UVC USB 2.0 Video Webcam with Microphone, Ultra HD 3264*2448 Embedded USB Camera

  • Brand: UCTRONICS
  • Product Code:NR-ArdC-8-Megapixel-Auto-Focus-Mini-USB-Camera
  • Reward Points:43
  • Availability:In Stock
  • रo 4,173.00
  • रo 3,651.00

  • Price in reward points:4347

  • 3 or more रo 4,156.00
  • 6 or more रo 4,138.00
  • 16 or more रo 4,121.00
  • 31 or more रo 4,104.00
