The Alternative product is B0441

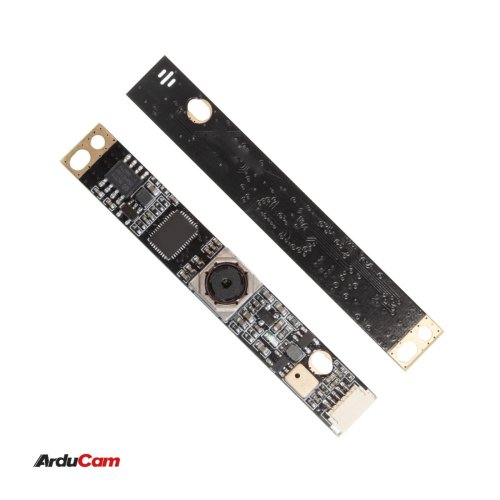

The UB0238 is a new member of the Arducam’s USB camera family. It’s a 5MP, UVC compliant, USB 2.0 camera. This USB camera is based on the 1/4” Sony OV5648 image sensor.

Features:

  • 5 Megapixel USB camera High Definition 2592x1944 resolution webcam with autofocus lens is able to ensure your videos are always sharp and crystal clear.
  • 1/4” CMOS OV5640 Image sensor Webcams. Picture format MJPEG or YUY2 optional, cameras with high resolution can be used in any video system for personal or industrial.
  • Super small and Mini Size for your embedded applications. Compact camera for all kinds of machine vision.
  • Just plug the USB cable into your PC’s USB port, plug and play, there is no need to download or install complicated driving software.
  • USB webcam widely works with WinXP/Vista/Windows 7/8, Windows 10 Linux with UVC. Webcam for MAC, PC, desktop computer, laptop USB.

Specifications:

  • Camera
    • Sensor: 1/4” OV5648
    • Resolution: 2592(H)x1944(V)
    • Frame Rate: MJPG 15fps@2592 x 1944/1600 x 1200; 30fps@1080P/1280 x 960/1280 x 720/1024 x 768/800 x 600/640 x 480; YUY2 2fps@2592 x 1944; 3fps@2048 x 1536; 5fps@1920 x 1080/1600 x 1200/1280 x 960; 10fps@1280 x 720/1024 x 768; 15fps@800 x 600; 20fps@640 x 480.
  • Lens:
    • Field of View (FOV): 70°(D)
    • Lens Mount: M6.5
    • IR Sensitivity: Integral 650 IR filter, only visible light
    • Functionality and Compatibility
    • Adjustable parameter: Saturation, Contrast, Acutance, White balance, Exposure.
    • System Compatibility: Windows XP (SP2, SP3)/Vista/7/8/10, Linux, and Mac with UVC
  • Power
    • Power supply: USB powered 5V
    • Working Current: MAX 250mA
  • Physical
    • Operating Temp: -4°F~158°F (-20°C~+70°C).
    • Dimension: 62mmx9mmx5mm
    • Cable Length: 3.3ft (1M)

Documents:

Package Includes:

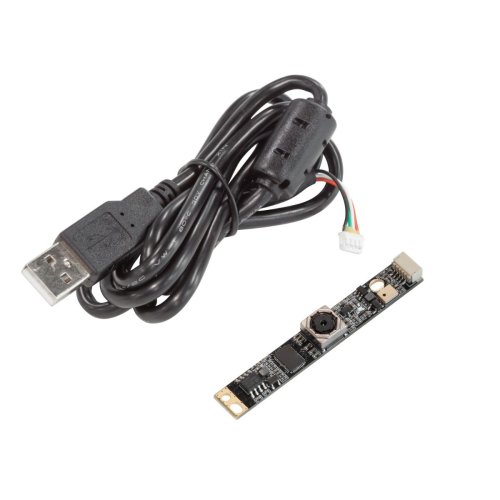

  • 1 x Arducam UB0238 5MP Auto Focus Mini USB Camera Board for Computer, 1/4” CMOS OV5648 UVC USB2.0 Video Webcam with Microphone

Write a review

Please login or register to review

Arducam UB0238 5MP Auto Focus Mini USB Camera Board for Computer, 1/4” CMOS OV5648 UVC USB2.0 Video Webcam with Microphone

  • Brand: ArduCAM
  • Product Code:NR-ArdC-UB0238-Camera
  • Reward Points:33
  • Availability:In Stock
  • रo 3,195.00
  • रo 2,796.00

  • Price in reward points:3328

  • 5 or more रo 3,168.00
  • 20 or more रo 3,182.00
  • 40 or more रo 3,142.00
