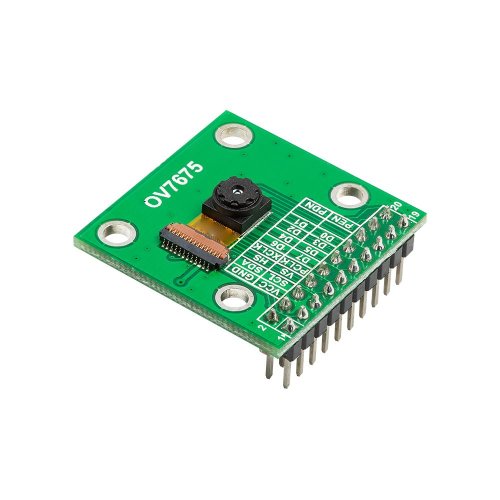

The camera is based on OmniVision 0.3MP OV7675 image sensor, which excels in image capture with its advanced features and exceptional performance. Its pixel array captures intricate details with precision and clarity, while its low-light imaging capabilities reveal hidden elements in challenging lighting conditions.

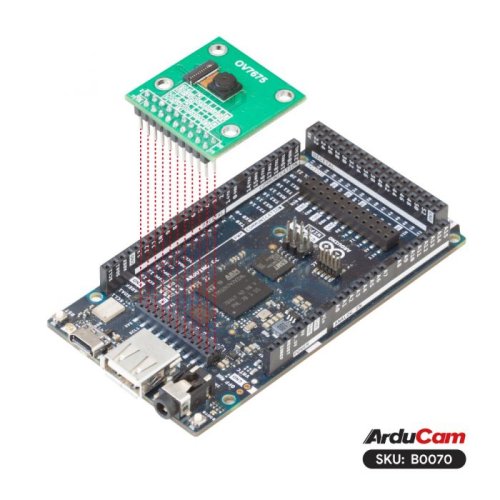

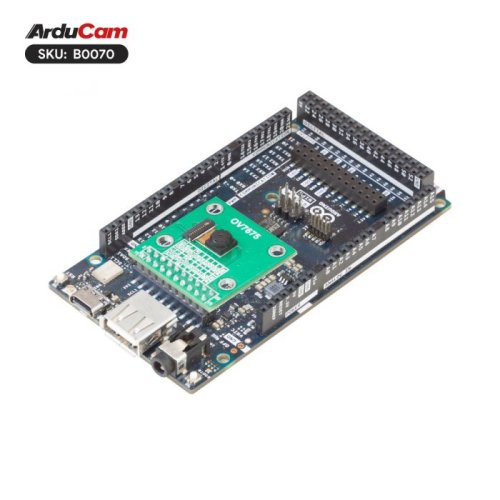

Fully compatible with the Arduino GIGA R1 board and Arduino® GIGA Display Shield, a recent addition to Arduino's professional-grade microcontroller development boards. Seamless integration empowers the camera module, unlocking versatile image capture and processing capabilities. Leverage the combined strength of this camera module and Arduino GIGA R1 with GIGA Display Shield for a competitive edge in your projects.


Features:
  • Cost-Effective Vision Solution: Affordable and compact, ideal for budget-friendly projects integrating vision capabilities.

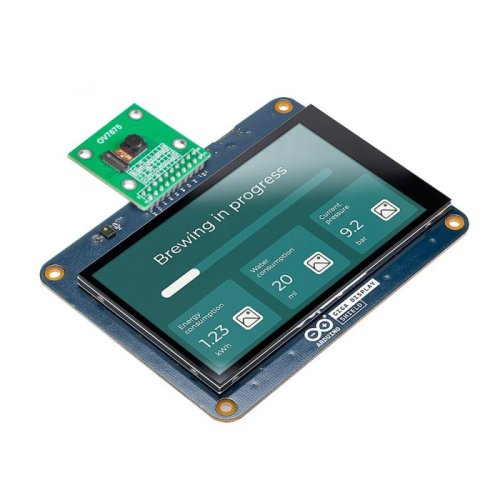

  • Wide Compatibility: Pair with the GIGA Display Shield (not included) for an intuitive interface, simplifying camera setup and real-time monitoring.
  • Simplify Embedded Vision for All: Easy to set up and operate. Making it possible to add machine vision to your GIGA R1 board without much effort at all.
  • High Precision: Captures images with high resolution and detail, allowing for precise visual analysis.
  • Low Power Consumption: Efficient power usage, making it suitable for battery-powered and energy-efficient applications.
Specifications:
IMAGE SENSOROV7675
Active Array Pixels640x480
Pixel Size2.5µmx2.5µm
S/N Ratio38 dB
Dynamic Range71 dB

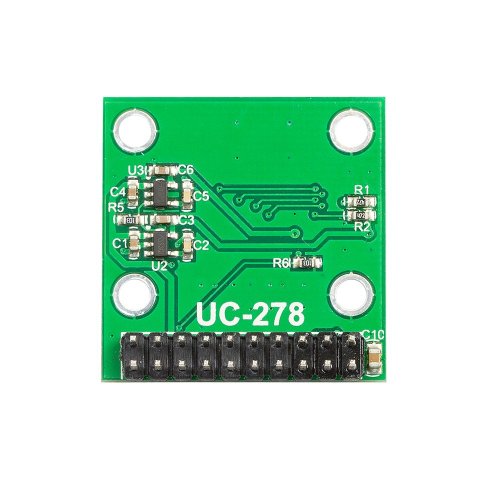

Interface20-pin DVP
Shutter TypeElectronic Rolling Shutter
Color Filter ArrayQuad-Bayer RGB
Output FormatRAW/YUV/RGB
Resolution&Frame Rate640x480/320x240/160x120@15fps
Lens Optical Size1/9 Inch
EFL1.75mm
F.NO2.8
Field of View Angle63.9°(D)
Lens Distortion<1.0%
Focus Distance0.12M - ∞(AT=0.23M)
Power SupplyAVDD: 2.7VA ~ 3.0V
DOVDD: 1.7V ~ 3.0V
DVDD: 1.5V
Operation Temp.-30° C to 70° C
Camera Size30.5mm x 30.5mm
Applications:
  • Machine/Computer Vision
  • Robotics
  • IoT
  • Digital Fabrication
  • Real-time Processing
Documentations:
Package Includes:
  • 1 x Arducam B0070 0.3MP OV7675 20-pin DVP Camera Module for Arduino GIGA R1 WiFi Board

Write a review

Please login or register to review

ArduCAM B0070 0.3MP OV7675 20-pin DVP Camera Module for Arduino GIGA R1 WiFi Board

  • Brand: ArduCAM
  • Product Code:ArdC-B0070-0.3MP-OV7675-20-pin
  • Reward Points:5
  • Availability:In Stock
  • रo 456.00
  • रo 399.00

  • Price in reward points:475

  • 60 or more रo 452.00
  • 145 or more रo 454.00
  • 285 or more रo 448.00
