The Pi NoIR is a Raspberry Pi camera module with no Infrared filter for night time and low light photography using an Infrared light. Useful for wildlife research, science projects, night time security or making artistic photo’s.
This camera is developed for the application of the night vision. The Arducam OV5647 day and night camera can satisfied your requirement under different light conditions. The special struction is capable to achieve automatic IR-cut switching all-day. Attached with a M12x0.5 Mount LS1820 Lens that compatable with Raspberry Pi.
With the wide range of project Raspberry Pi’s are being used for, some users were finding that the camera was no good when it was being used in low light with an Infrared light source. Unfortunately for them the Raspberry Pi camera module has a Infrared filter built in which makes it unusable for their project. In response we come up with a camera module just for these type of projects called the Pi NoIR camera. It is the same as the standard camera module but without an IR filter.
Specifications:
Sensor | Omnivision OV5647 sensor |
Optical Size | 1/4” (OV5647) |
Resolution | 5MP 2592×1944 |
Frame Rates | 1080p 30 fps, 720p 60fps, 480p 90fps |
IR Sensitivity | Motorized IR-cut filter |
Camera Board Size | 36mm x 36mm |
Focus Type | Manual Focus |
Lens Type | M12 Lens |
Peaking Current | 300mA |
Applications:
- Home security
- Robot cameras
- Wildlife cameras
- Cellular phones,PDAs,Toys
- Digital still cameras,etc.
Note:
- Raspberry Pi board is not included in the package
Documentations:
- Sensor Datasheet – OmniVision OV5647
- Arducam Documentation – Arducam Cameras for Raspberry Pi
- Blog – Arducam 5MP OV5647 IR Cut Pi Camera
- Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
Package Includes:

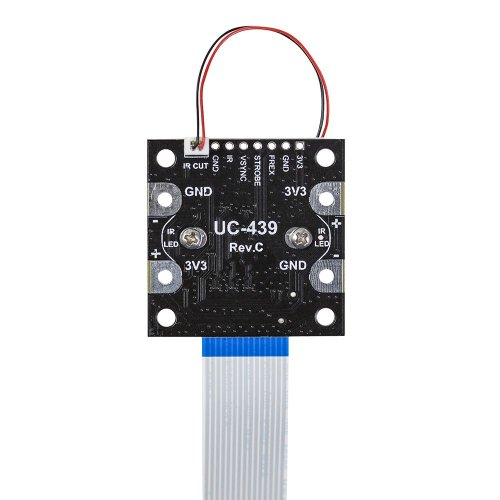

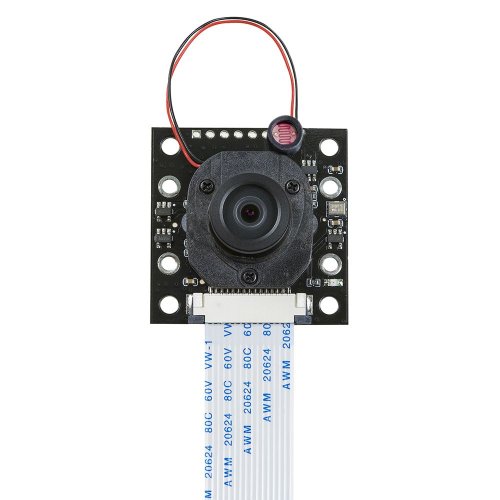

- 1 x OV5647 NoIR Camera Board /w Motorized IR Cut Filter M12x0.5 Mount Lens LS1820 for Raspberry Pi

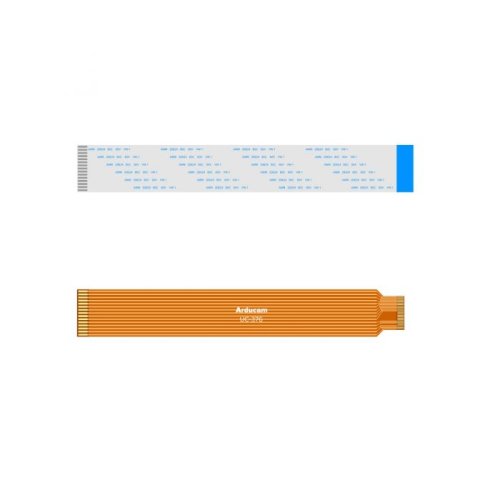

- 1 x 15cm 15pin FPC cable
- 1 x 15cm 15-22pin FPC cable
ArduCAM B0151 OV5647 NoIR Camera Board /w Motorized IR Cut Filter M12x0.5 Mount LS1820 Lens for Raspberry Pi 4/3B+/3
- Brand: ArduCAM
- Product Code:ArdC-B0151-OV5647-NoIR-Cam-Board
- Reward Points:36
- Availability:In Stock
- रo 3,456.00
-
रo 3,024.00
- Price in reward points:3600
-
- 10 or more रo 3,427.00
- 20 or more रo 3,441.00
- 40 or more रo 3,398.00
Related Products
Tags: ArduCAM, OV5647, Camera Board, Raspberry Pi
