In order to meet the increasing market demands for more lens options to address different use cases, Arducam selected and tested a wide range of M12, CS or C mount optimal lenses from long focus to fisheye for shooting on your Raspberry Pi or Arduino cameras. It’s now much easier for you to get the best lens you’ll need, and we will keep the lens list growing in the near future.

Specifications :

M30171H16 :

• Optical Format: 1/3”
• Effective Focal Length:1.71mm
• 35mm equivalent focal length: 18.5mm
• FOV on 1/3”sensor(D/H/V):184°/184°/104°
• FOV on 1/4”RPi Camera: 180°
• F/NO: 2.2
• Mount: M12
• Length Holder Height: 13mm
• Size: 15mm x19.7mm
• Weight:7g

M32076M20 :

• Optical Format: 1/3.2’’, Effective Focal Length: 0.76mm
• 35mm equivalent focal length: 8.2mm
• FOV on 1/3.2” sensor(D/H/V): 222°/222°/222°HFOV on 1/4” RPi Camera: 220°, F/NO: 2.1
• Mount:M12, Length Holder Height: 7mm
• Size: 16mm x 13.5mm, Weight: 5g

Additional Resources :

• M12 Lens Kit Datasheet – Arducam M12 Lens Kit
• Arducam Documentation – Arducam M12 Lens Kit
• Video – Arducam M12 Lens Kit
• Blog – Arducam M12 Lens Kit

Package Include :

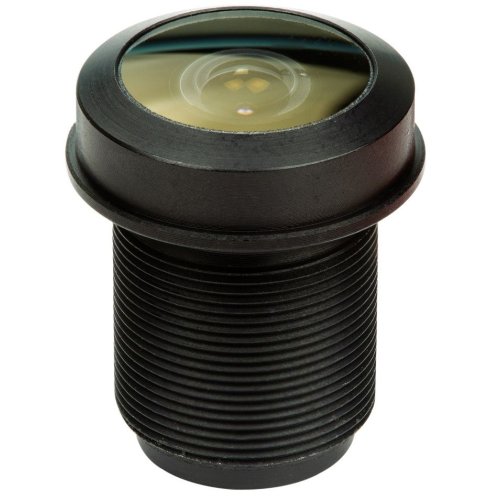

• 1 x Arducam LN009 / LN010 M12 Mount / 1.71mm  0.76mm Focal Length Camera Lens M30171H16 / M32076M20
