In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of lenses on your Rpi HQ cameras. It’s now much easier for you to get the best lens you’ll need, and we will keep the lens list growing in the near future. We’ve tested this lens among the many other selected on the 12MP RPi HQ Camera. No lens shading, no dark corners, decent image quality, it just works. It is another cost-effective choice that adds up to you Raspberry Pi High Quality Camera Module.

Features:

  • It Just Works – We’ve tested this lens among the many other selected on the 12MP RPi HQ Camera. No lens shading, no dark corners, decent image quality, it just works.
  • The Wise Alternative – Another cost-effective choice that adds up to your Raspberry Pi High Quality Camera Module, with 3.2mm focal length and manual focus.
  • Ultra Wide Angle – Compared to a 6mm lens with a 65 degree HFOV, which is known as wide angle, while this lens provides 120 degree Horizontal Field of View on the IMX477 HQ camera.
  • Qualified Arducam – Arducam has been selecting and testing CS lenses on the Raspberry Pi cameras since the V1 camera era. Check B0032 if you want a 5MP Pi camera with CS Lens, and B0102 for 8MP Pi cameras with CS lenses.
Specification:
  • Model No: CS17320M12
  • Optical Format: 1/1.7″
  • Focal Length: 3.2mm
  • Aperture: F2.0
  • Field of View (FOV): 120°(H)
  • Focus Type: manual
  • Mount: CS mount
  • Back Focal Length: 5.94mm
  • MOD: 0.3m
  • Dimension: Φ28×30mm
  • Weight: 54g
Package Includes:

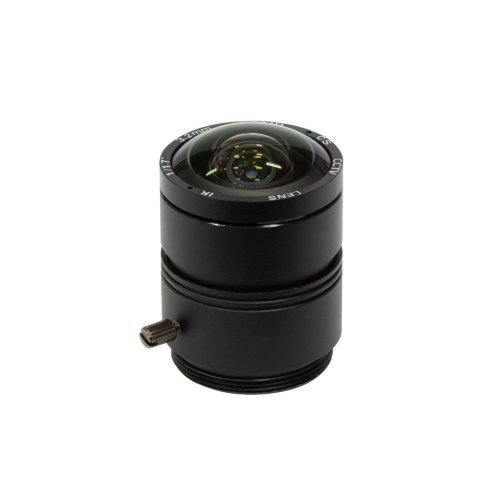

  • 1 x Arducam LN051 CS Lens for Raspberry Pi HQ Camera, 120 Degree Ultra Wide Angle CS-Mount Lens, 3.2mm Focal Length with Manual Focus
Lens Specifications
Focal Length 3.2mm
Field of View 120°(H)
Lens Mount CS mount
