In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of M12-mount lenses from long focus to wide angle for shooting on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.

If you want to grab all the available S-mount lenses for the HQ camera, Arducam has also got a 6-in-1 M12 lens bundle here.

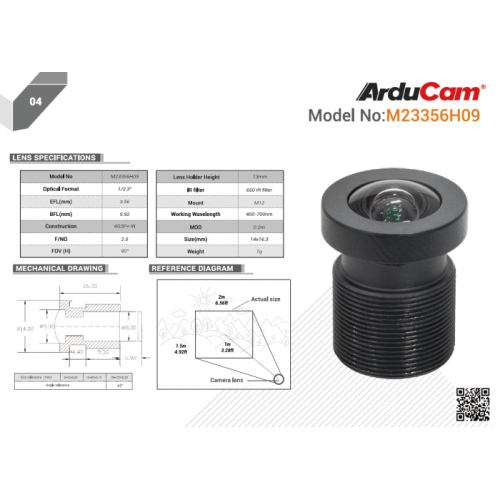

Lens Specifications:

Model No: M23356H09
Optical Format: 1/2.3”
Focal Length: 3.56mm
Aperture: F2.5

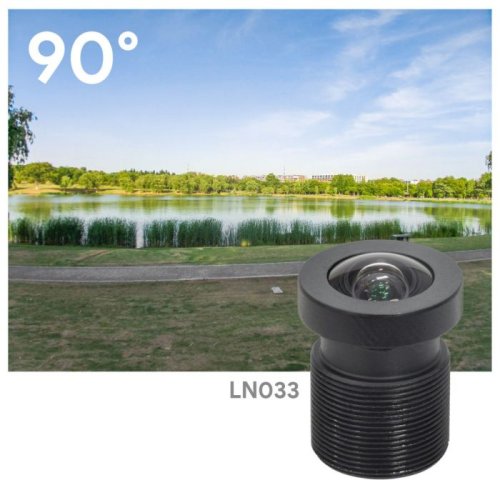

Field of View (FOV): 90° (H) on Raspberry Pi High Quality Camera, 55°(H) on Raspberry Pi V1/V2 Camera
Mount: M12 mount
Back Focal Length: 5.92mm
MOD: 0.2m
Dimension: Φ14×16.3mm
IR Sensitivity: sensitive to visible light, with 650nm IR filter

Other Arducam S-mount lenses with different FoVs

Lenses ender 70 degree: 20° HQ Camera Lens, 50° HQ Camera Lenses, 70° HQ Camera Lens.
Wide Angle and Fisheye Lenses: 130° HQ Camera lens, 180° HQ Camera Lens.

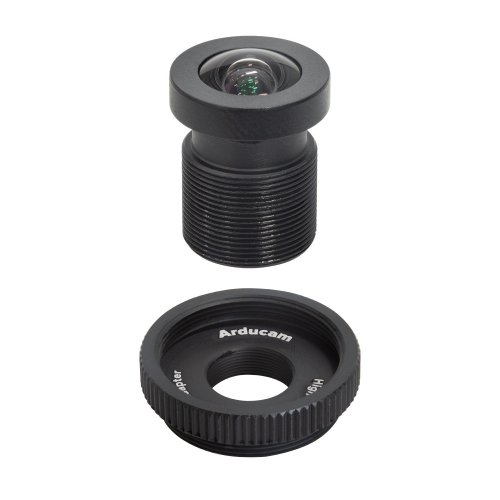

Package Includes:

1 x 1/2.3″ M12 90 degree wide angle camera Lens
1 x M12 lens adapter

Sensor Specifications
Sensor size	1/2.3”
Lens Specifications
Focal Length	3.56mm
Field of View	90° (H) on Raspberry Pi High Quality Camera, 55°(H) on Raspberry Pi V1/V2 Camera
Lens Mount	M12 mount
Aperture	F2.5
Physical Attributes
Weight	7g
Dimensions	Φ14×16.3mm

Arducam LN033 90 Degree Wide Angle 1/2.3 inch M12 Lens with Lens Adapter for Raspberry Pi High Quality Camera

Brand: ArduCAM
Product Code:ArdC-LN033-Lens
Reward Points:18
Availability:In Stock

रo 1,695.00
रo 1,483.00
Price in reward points:1766
15 or more रo 1,681.00
40 or more रo 1,688.00
75 or more रo 1,667.00

Qty

0 reviews / Write a review
