Features:
- Optical Format:1/4”, Effective Focal Length:1.05mm
- 35mm equivalent focal length: 4mm
- FOV on 1/4” sensor(D/H/V): 206°/194°/142°
- HFOV on 1/4” RPi Camera: 194°, F/NO: 2.0
- Mount:M12, Length Holder Height: 4mm
- Size: 16mm x 8.6mm, Weight: 2g
- IR Sensitivity: sensitive to visible light, with 650nm IR filter
Note:
- Lens holder NOT included, you could find holder options following.
- Typically lenses with a larger Field of View will require shorter holders, and that means you need to change the lens holder if the lens does not focus at all.
Lens Holder Options:
- M12 Lens Holder Kit (SKU: LHK01)
- Height: 6.0mm; Hole Spacing: 18mm; Plastic (SKU: LH001)
More M12 Lens Options:
Documentations:
- M12 Lens Kit Datasheet – Arducam M12 Lens Kit
- Arducam Documentation – Arducam M12 Lens Kit
- Video – Arducam M12 Lens Kit
- Blog – Arducam M12 Lens Kit
Package Includes:
- 1 x Arducam LN020 1/4 inch M12 Mount 1.05mm Focal Length Fisheye lens M40105M19

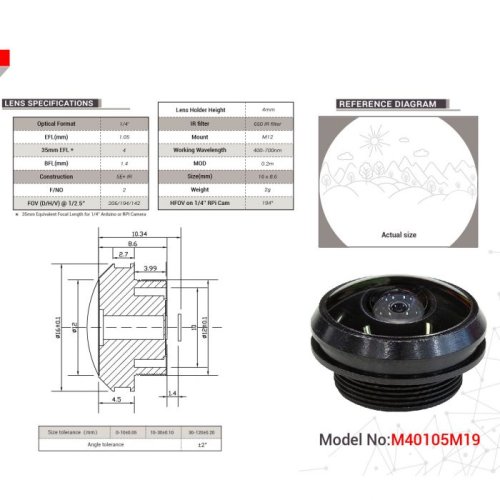

Lens Specifications | |
Focal Length | 1.05mm |
Field of View | FOV on 1/4” sensor(D/H/V): 206°/194°/142° HFOV on 1/4” RPi Camera: 194°, F/NO: 2.0 |
Lens Mount | M12, Length Holder Height: 4mm |
Physical Attributes | |
Dimensions | 16mm x 8.6mm |

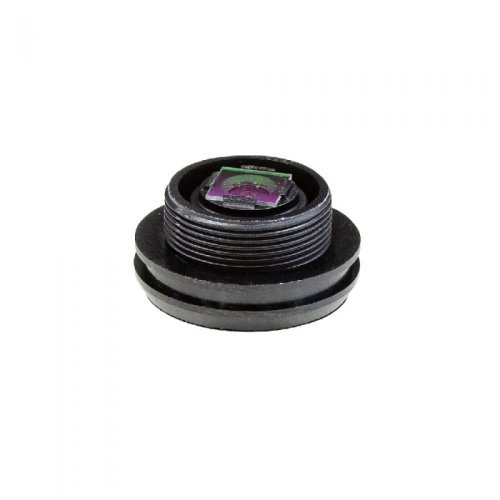

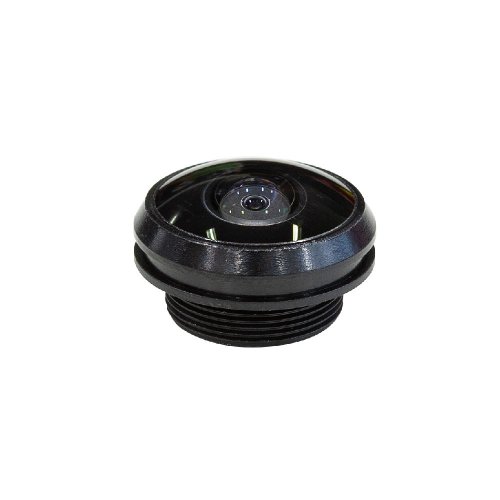

Arducam LN020 1/4 inch M12 Mount 1.05mm Focal Length Fisheye lens M40105M19
- Brand: ArduCAM
- Product Code:ArdC-LN020-M12-M40105M19
- Reward Points:11
- Availability:In Stock
-
रo 1,170.00
- Price in reward points:1170
-
- 11 or more रo 1,160.00
- 52 or more रo 1,150.00
Related Products
Tags: Arducam, M12 Mount, Focal Length, Fisheye lens
