Features:
- Optical Format:1/3”, Effective Focal Length:1.58mm
- 35mm equivalent focal length: 8mm
- FOV on 1/3” sensor(D/H/V): 185°/185°/120°
- HFOV on 1/4” RPi Camera: 140°, F/NO: 2.3
- Mount:M12, Length Holder Height: 7mm
- Size: 14mm x 11.5mm
- IR Sensitivity: sensitive to visible light, with 650nm IR filter
Note:
- Lens holder NOT included, you could find holder options following.
- Typically lenses with a larger Field of View will require shorter holders, and that means you need to change the lens holder if the lens does not focus at all.
Lens Holder Options:
- M12 Lens Holder Kit (SKU: LHK01)
- Height: 10.0mm; Hole Spacing: 20mm; Metal (SKU: U0756M10)
- Height: 8.5mm; Hole Spacing: 18mm; Plastic (SKU: LH002)
- Height: 7.0mm; Hole Spacing: 20mm; Metal (SKU: U0756)
- Height: 6.0mm; Hole Spacing: 18mm; Plastic (SKU: LH001)
More M12 Lens Options:
Documentations:
- M12 Lens Kit Datasheet – Arducam M12 Lens Kit
- Arducam Documentation – Arducam M12 Lens Kit
- Video – Arducam M12 Lens Kit
- Blog – Arducam M12 Lens Kit
Package Includes:
- 1 x Arducam LN019 1/3 inch M12 Mount 1.58mm Focal Length Fisheye Lens M30158M13

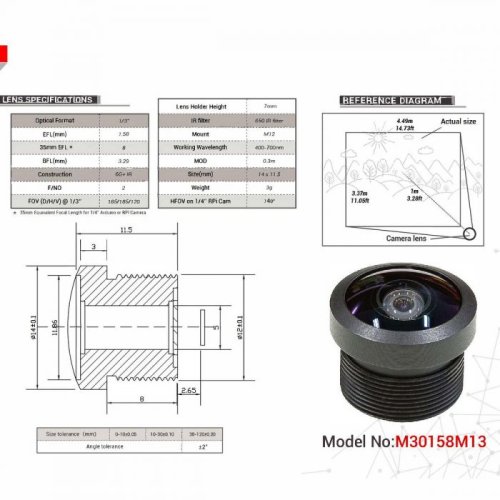

Lens Specifications | |
Focal Length | 1.58mm |
Field of View | FOV on 1/3” sensor(D/H/V): 185°/185°/120° HFOV on 1/4” RPi Camera: 132°, F/NO: 2.3 |
Lens Mount | M12, Length Holder Height: 7mm |
Physical Attributes | |
Dimensions | 14mm x 11.5mm |

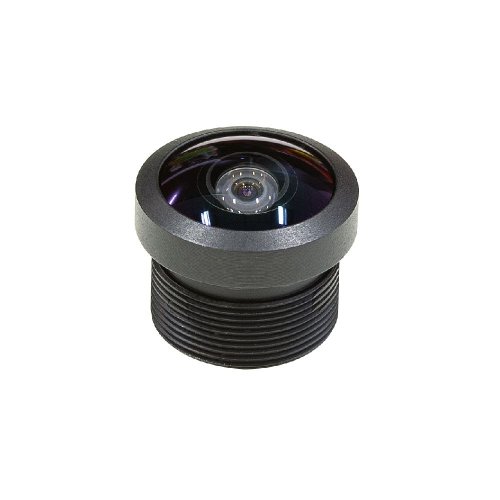

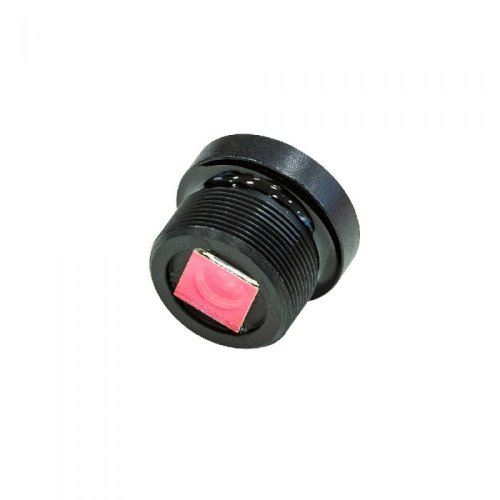

Arducam LN019 1/3 inch M12 Mount 1.58mm Focal Length Fisheye Lens M30158M13
- Brand: ArduCAM
- Product Code:ArdC-LN019-M30158M13
- Reward Points:13
- Availability:In Stock
- रo 1,239.00
-
रo 1,084.00
- Price in reward points:1291
-
- 20 or more रo 1,229.00
- 55 or more रo 1,234.00
- 105 or more रo 1,218.00
Available Options
Related Products
Tags: Arducam, M12 Mount, Focal Length, Fisheye Lens
