The Arducam monochrome (B&W) global shutter VGA resolution OV7251 MIPI camera module is mainly designed for Raspberry Pi boards, and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware. This camera is based on a 1/7.5-inch Omnivision OV7251 image sensor which adopts OmniPixel3-GS™ technology to provide full-frame, sub-sampled, and windowed 8/10-bit MIPI images, and capable of operating at up to 100fps in VGA resolution with complete user control over image quality.

The sensor's global shutter and excellent low-light sensitivity allow it to be used for any application that needs gesture detection, head and eye tracking, and depth and motion detection.

Features:

  • Sensor: Monochrome global shutter OV7251
  • Pixel Size: 3 μm x 3 μm
  • Active array size: 640*480
  • Optical Size: 1/7.5 inch
  • EFL: 1.3mm
  • F.NO: 2.2
  • IR Sensitivity: sensitive to IR, without IR filter (Check visible light version with SKU: EK021)
  • FOV: D86.5 Deg./H72.9 Deg./V57.7 Deg.
  • Focusing Range: 65mm ~ infinite
  • Output interface: 1-lane MIPI serial output
  • Output formats: 8/10-bit BW RAW
  • Maximum image transfer rate: 640 x 480: 100 fps
  • Board Size: 40mm x 40mm

Applications:

  • Cellular phones
  • Toys
  • Tablets
  • Machine vision
  • ARM/FPGA/DSP based platforms

Documentations:

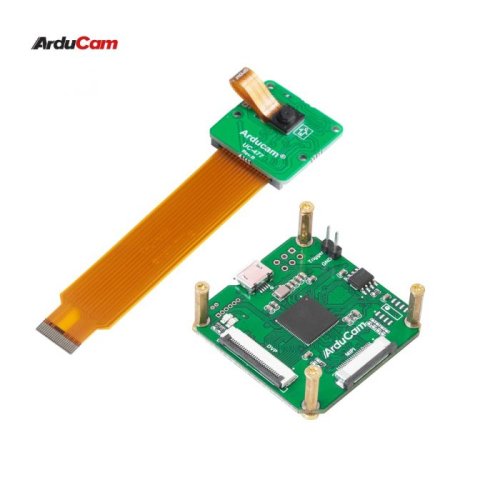

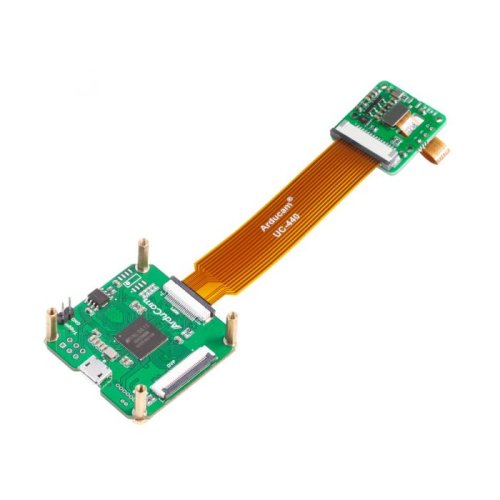

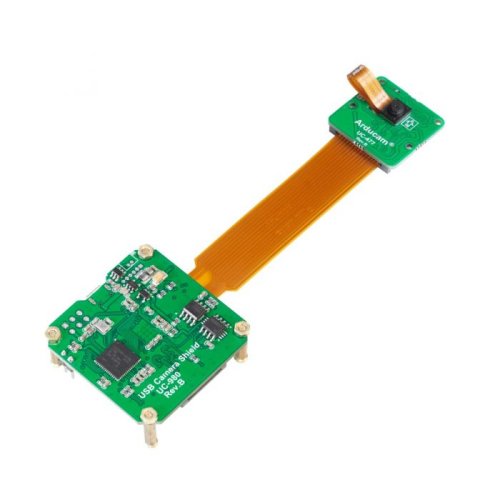

Package Includes:

  • 1 x Arducam OV7251 1/7.5-inch Monochrome Camera Module
  • 1 x Arducam USB2 Camera Shield (Rev.E) - Support MIPI Interface Sensors
  • 1 x USB2 Cable
Sensor Specifications
Sensor type Monochrome OV7251
Sensor size 1/7.5"
Shutter global shutter
Lens Specifications
Focusing Range 65mm ~ infinite
Field of View D86.5 Deg./H72.9 Deg./V57.7 Deg.
