The OV7725 camera module is based on Omnivision OV7725 image sensor which is a low voltage CMOS device that provides the full functionality of a single-chip VGA camera and image processor, as well as the extraordinary high frame rate and low light performance. The OV7725 provides full-frame, sub-sampled or windowed 8-bit/10-bit images in a wide range of formats, controlled through the Serial Camera Control Bus (SCCB) interface. This device has an image array capable of operating at up to 60 frames per second (fps) in VGA with complete user control over image quality, formatting and output data transfer. All required image processing functions, including exposure control, gamma, white balance, color saturation, hue control and more, are also programmable through the SCCB interface. In addition, OmniVision sensors use proprietary sensor technology to improve image quality by reducing or eliminating common lighting/electrical sources of image contamination, such as fixed pattern noise, smearing, blooming, etc., to produce a clean, fully stable color image
Features:
  • High sensitivity for low-light operation
  • Standard SCCB interface
  • Output support for Raw RGB, RGB (GRB 4:2:2, RGB565/555/444) and YCbCr (4:2:2) formats
  • Supports image sizes: VGA, QVGA, and any size scaling down from CIF to 40x30
  • VarioPixel® method for sub-sampling
  • Automatic image control functions including: Automatic Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)
  • Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming
  • ISP includes noise reduction and defect correction
  • Lens shading correction
  • Saturation level auto adjust (UV adjust)
  • Edge enhancement level auto adjust
  • De-noise level auto adjust
  • Frame synchronization capability
Applications:
  • Cellular phones
  • PDAs
  • Toys
  • Other battery-powered products
  • Can be used in Arduino, Maple, ChipKit, STM32, ARM, DSP, FPGA platforms
Pin Definition:
Documentations:
Package Includes:

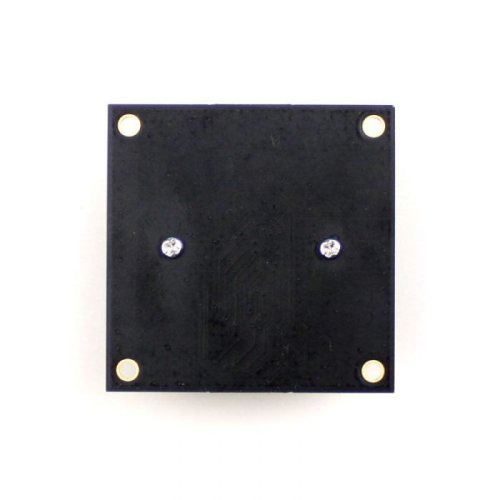

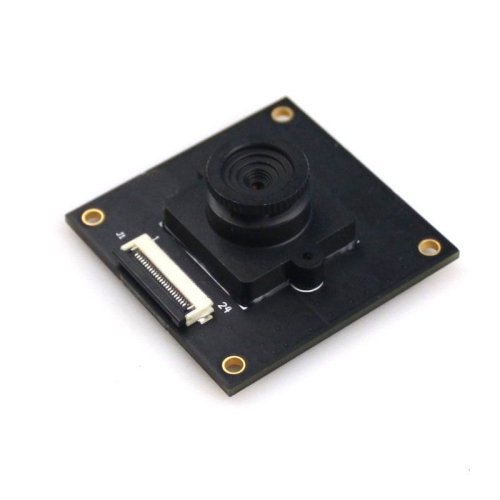

  • 1 x ArduCAM U3182 CMOS OV7725 Camera Module 1/4-Inch 0.3-Megapixel Module

Write a review

Please login or register to review

ArduCAM U3182 CMOS OV7725 Camera Module 1/4-Inch 0.3-Megapixel Module

  • Brand: ArduCAM
  • Product Code:ArdC-U3182-CMOS-OV7725
  • Reward Points:14
  • Availability:In Stock
  • रo 1,369.00
  • रo 1,198.00

  • Price in reward points:1426

  • 20 or more रo 1,358.00
  • 50 or more रo 1,364.00
  • 95 or more रo 1,346.00
