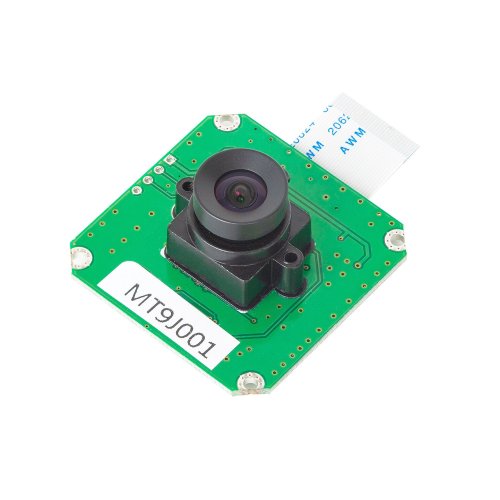

The MT9J001 camera module features Aptina’s breakthrough low-noise CMOS imaging technology that achieves near-CCD image quality (based on signal-to-noise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS. It incorporates the monochrome version of the MT9J001 sensor on board.
This camera module can be used together with Arducam USB shield for Windows, Linux and Raspberry Pi.
Features:
- 1/2.3" optical format
- Monochrome Bayer pattern
- 10MP 3856 x 2764 MT9J001 sensor
- 1.67 x 1.67 um Pixel size
- 7.5fps at full resolution
- 0.31V/lux-sec responsivity
- 65.2dB dynamic range
- single 3.3V power input
- Parallel camera interface
- Default M12 mount 4.2mm LS-18023 lens
Applications:
- Digital video cameras
- Digital still cameras
- Industrial camera
- Medical camera
- Microscopy camera
Documentations:
- User Guide – Arducam 10MP MT9J001 M12 low distortion Camera Breakout Board
- Application Note – Arducam 10MP MT9J001 M12 low distortion Camera Breakout Board
- Arducam Documentation – Arducam Camera Breakout Boards
- Github – Arducam USB Camera Shield
- Blog – Arducam USB Camera Shield
- Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
Package Includes:
- 1 x Arducam B0096 CMOS MT9J001 1/2.3-Inch 10MP Monochrome Camera Module
Arducam B0096 CMOS MT9J001 1/2.3-Inch 10MP Monochrome Camera Module
- Brand: ArduCAM
- Product Code:ArdC-B0096-CMOS-MT9J001
- Reward Points:47
- Availability:In Stock
- रo 4,564.00
-
रo 3,994.00
- Price in reward points:4755
-
- 3 or more रo 4,545.00
- 6 or more रo 4,526.00
- 14 or more रo 4,507.00
- 29 or more रo 4,488.00
Related Products
Tags: Arducam, 10MP, Monochrome, Camera Module
