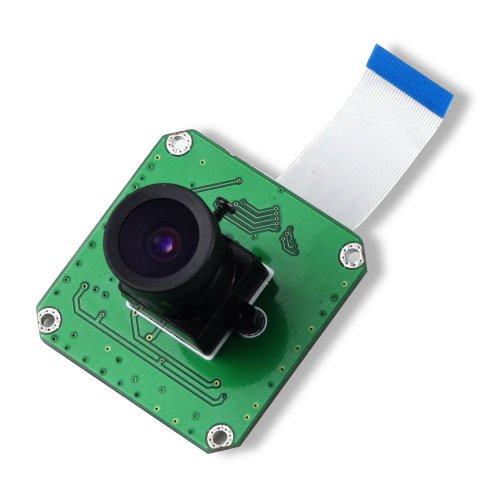

The AR0135 module is a 1/3 inch 1.2MP global shutter camera module which can be operated in its default mode or programmed for frame size, exposure, gain, and other parameters. The default mode output is a full-resolution image at 54 frames per second (fps). It outputs 12-bit raw data, using either the parallel output ports. The device may be operated in video (master) mode or in frame trigger mode.
AR0135 has been designed to address the challenging requirements of automotive in-cabin cameras. The new global shutter sensor allows the camera to “freeze” fast moving scene data, and ensures effective synchronization with pulsed light sources. The AR0135 sensor incorporates a new innovative global shutter pixel design, with 10X lower dark current and 4X higher shutter efficiency vs. AR0134.These improvements allow the sensor to produce clear, low-noise images, in both low-light and bright scenes, and in high temperature environments.
Note:
- Please note that camera module only can be used together with Arducam USB shield.
Features:
- 1/3" optical format
- 1.2MP 1280 x 960 AR0135 global shutter sensor
- 3.75 x 3.75 u Pixel size
- 54fps at full resolution
- 5.3V/lux-sec responsivity
- 64dB dynamic range
- single 3.3V power input
- Parallel camera interface
- Default M12 mount 6mm LS-6020 lens
Applications:
- Security
- High dynamic range imaging
- Unattended surveillance
- Stereo vision
- Machine vision
- Automation
Additional Resources for B0124:
- User Guide – Arducam 1.2MP AR0135 Monochrome M12 Camera Breakout Board
- Arducam Documentation – Arducam 1.2MP AR0135 Monochrome M12 Camera Breakout Board
- Github – Arducam USB Camera Shield
- Video – Global Shutter Camera Module
- Blog – Arducam USB Camera Shield
- Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit
Package Includes:
- 1 x Arducam CMOS AR0135 1/3-Inch 1.2MP Camera Module
Arducam B0124 / B0125 CMOS AR0135 1/3-Inch 1.2MP Camera Module
- Brand: ArduCAM
- Product Code:ArdC-CMOS-AR0135
- Reward Points:95
- Availability:In Stock
- रo 9,129.00
-
रo 7,988.00
- Price in reward points:9509
-
- 5 or more रo 9,053.00
- 10 or more रo 9,091.00
- 15 or more रo 8,977.00
