Alternative product ArduCam B0353, USB Evaluation Kit

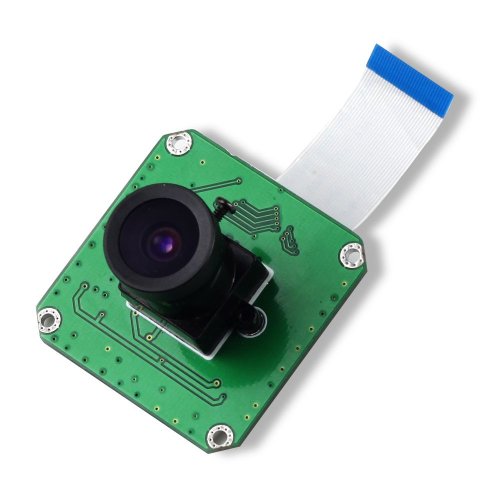

The AR0134 module is a 1/3 inch 1.2MP global shutter monochrome camera module which can be operated in its default mode or programmed for frame size, exposure, gain, and other parameters. The default mode output is a full-resolution image at 54 frames per second (fps). It outputs 12-bit raw data, using either the parallel output ports. The device may be operated in video (master) mode or in frame trigger mode.

Note:

Please note that camera module only can be used together with Arducam USB shield.

Features:

• 1/3" optical format
• 1.2MP 1280 x 960 AR0134 global shutter sensor
• 6.0 x 6.0 um Pixel size
• 54fps at full resolution
• 5.3V/lux-sec responsivity
• 64dB dynamic range
• single 3.3V power input
• Parallel camera interface
• Default M12 mount 6mm LS-6020 lens

Application:

• Security
• High dynamic range imaging
• Unattended surveillance
• Stereo vision
• Machine vision
• Automation

Additional Resources for B0100 :

• User Guide – Arducam 1.2MP AR0134 Color M12 Camera Breakout Board
• Arducam Documentation – Arducam 1.2MP AR0134 Color M12 Camera Breakout Board
• Sensor Datasheet – Arducam USB Camera Shield
• Github – Arducam USB Camera Shield
• Video – Global Shutter Camera Module
• Blog – Arducam USB Camera Shield
• Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit

Additional Resources for B0110 :

• User Guide – Arducam 1.2MP AR0134 Monochrome M12 Camera Breakout Board
• Sensor Datasheet – AR0134
• Arducam Documentation – Arducam Camera Breakout Board
• Github – Arducam USB Camera Shield
• Video – Global Shutter Camera Module
• Blog – Arducam USB Camera Shield
• Lens Options – Arducam M12 Mount Lens Kit, Arducam Low Distortion M12 Mount Lens Kit

 Package Includes:

1 x Arducam CMOS AR0134 1/3-Inch 1.2MP Camera Module
