Introducing the latest Arducam USB2.0 camera, featuring a 1/2.7" CMOS OV2710 sensor for seamless 30fps@1080P video capture. With its exceptional day and night performance, this camera ensures clear and sharp imagery around the clock.

Equipped with a built-in IR LED and photoresistor, it seamlessly transitions between day and night modes, automatically activating IR light for optimal low-light performance. Coupled with its starlight-rated wide-angle M12 lens, it maximizes light intake for superior surveillance capabilities.

Forget about driver installations – simply connect via USB to your PC, laptop, Android device, or Raspberry Pi. Versatile and adaptable, this mini USB camera is perfect for home surveillance, 3D printer monitoring, video conferencing, dashcam, and more.

Features:

Full HD 1080P: Based on the 1/2.7" OV2710 CMOS, delivering smooth 30fps@1080p video recording for unparalleled clarity and detail.

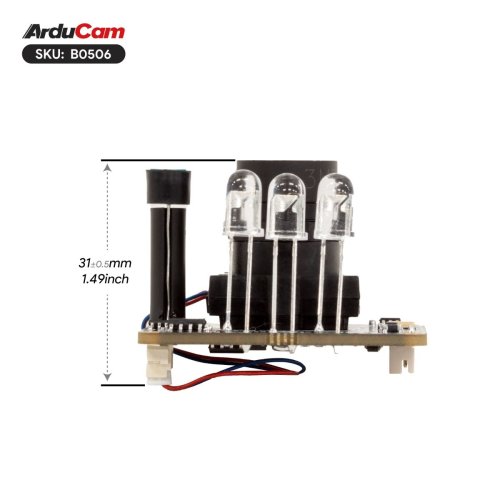

Day/Night Vision USB Cam: Equipped with a photoresistor and 6pcs 850nm IR LEDs, experience superior visibility even in low-light scenarios, ensuring sharp and vivid imagery round the clock.

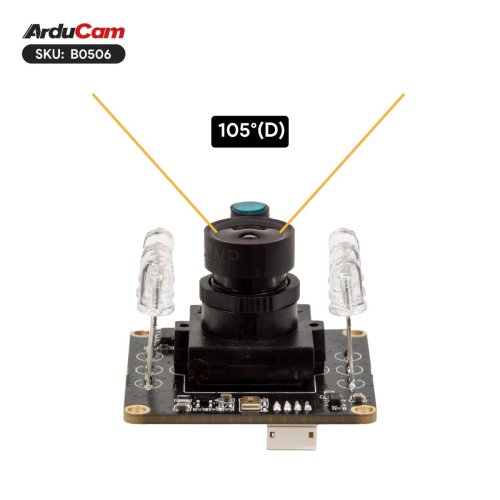

Expansive Perspective with Wide-Angle Lens: Enjoy maximized light intake with the 105°(D) wide-angle starlight lens boasting an F1.6, enabling remarkable sensitivity and intricate detail capture across the entire frame.

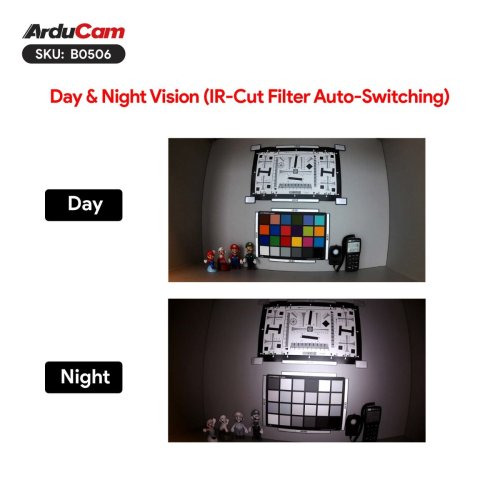

Seamless Day-to-Night Transitions: Effortlessly adapt to changing light conditions with automatic IR-cut switching. Experience enhanced night vision without manual adjustments as the camera seamlessly activates its 850nm IR LEDs for unparalleled clarity.
Hassle-Free Setup: Enjoy instant usability with plug-and-play convenience. Compliant with the UVC protocol, no additional drivers are needed. Simply connect via USB to your preferred device for versatile applications including security monitoring, home surveillance, dashcams, and more.

Specifications:

SENSOR	OV2710
Image Sensor
Still Resolution	2 Megapixels
Color Filter Type	Color/Mono
Shutter Type	Rolling
Optical Size	1/2.7"
Output Format	MJPG/YUY2
Pixel Size	3 µm x 3 µm
Sensor Active Area	1920(H)×1080(V)
Frame Rate	MJPG: 30fps@320240, 352288, 640480, 800600, 1024768, 1280720, 1280960, 12801024, 19201080 YUY2: 30fps@320240,352288; 15fps@640480; 20fps@800600; 10fps@1024768, 1280720; 5fps@1280960,12801024,19201080
Lens
Focus Type	Manual
FoV	105°(D) × 92°(H) × 76°(V)
Lens Mount	M12 (S-mount)
F.NO	F1.6±10%
E.F.L	4.3±5%
IR Sensitivity	Integral IR-Cut Filter (Only sensitive to visible light during the day, sensitive to IR at night with 850 IR LEDs on)
Default Focus Range	2m-∞
USB Interface
Interface	USB 2.0 Device
Connector	B4B-ZR
UVC Compliant	No additional drivers required
Electrical and Mechanical
Operating Voltage	5 V +/- 5%
Operating Temp.	32°F-158°F (0°C to 70°C)
Power Requirements	Max: 2.0W

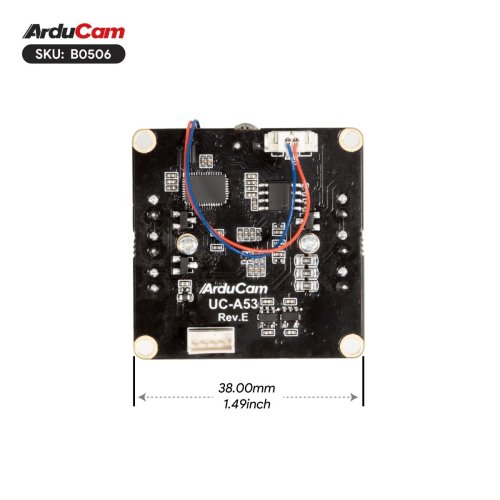

Camera Board Size	38×38 mm
Functionality and Compatibility
Audio	Single Microphone
Supported OS	Windows, Linux, Android and MAC OS
Recommend Sample Application	Amcap for Windows
UVC Controls	Brightness, Hue, Contrast, Saturation, Sharpness, Gamma, White Balance (Manual/Auto), Gain, Backlight Comp, Exposure (Manual/Auto)

Applications:

Animal Monitoring
Video Surveillance
3D Scanning and Metrology
Home Surveillance System
Dashcam

Notes:

The package contains small contents, please keep it away from children to avoid accidental ingestion
After receiving the package, please confirm whether the contents of the package are consistent with the description.
