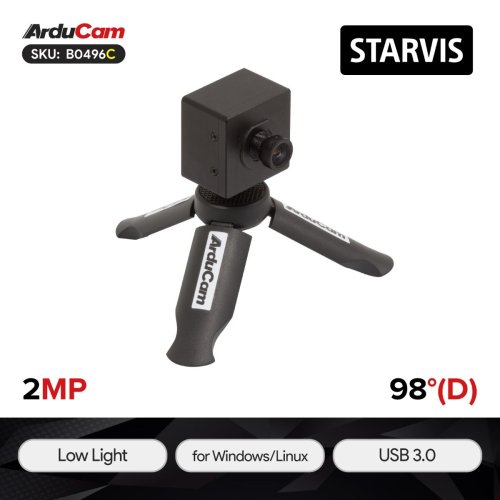

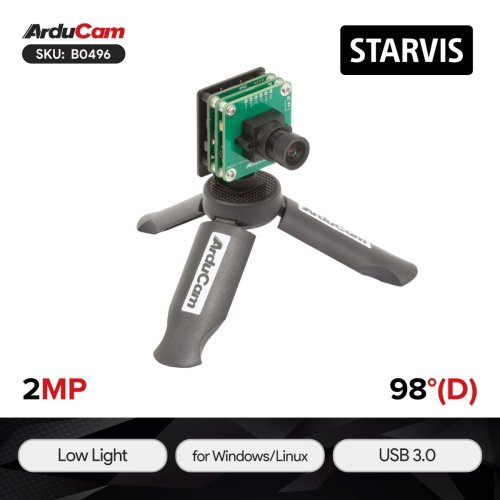

Arducam's USB 3.0 camera series introduces the IMX462 Manual Focus model. With a 1/2.8" Starvis CMOS, it achieves a maximum still resolution of 1920x1080.
Enhanced with a 98°(D) starlight lens for low-light imaging, this device allows manual focus to capture precise and accurate images.
Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.
Features:
  • Superior Imaging: Utilizes a Starvis back-illuminated IMX462 image sensor that delivers low-light sharpness at a maximum still resolution of 1920x1080.
  • Flexible Frame Rates: Programmable your desired frame rates, even reaching 80fps at 720p.
  • Advanced Image Enhancement: On-board ISP features proprietary technologies—de-Bayer, gamma, BLC, AE, AWB, CCM, RGB2YUV—ensuring top-notch image quality.
  • Precision and Perspective: Attain optimal clarity with M12 manual focus and a broad 98°(D) field of view for comprehensive monitoring and recording.
  • Plug and Play: Effortless compatibility with Windows and Linux through plug-and-play functionality, eliminating the need for additional drivers.
Specifications:
Image Sensor
SENSORIMX462
Still Resolution2 Megapixels
Color Filter TypeColor
Shutter TypeRolling
Optical Size1/2.8"
Output FormatYUY2
Pixel Size2.9 µm x 2.9 µm
Sensor Active Area1920H)×1080(V)
Frame Rate (USB 3.0)1920*1080@60fps, 1280*720@80fps
Frame Rate (USB 2.0)1280*720@10fps
Lens
Focus TypeManual Focus
FOV98°(D)×85°(H)×69°(V)
Lens MountM12
F.NOF1.0
E.F.L3.9mm
IR SensitivityIntegral IR-cut Filter, visible light only
Default Focus Range3m-∞
USB Interface
InterfaceUSB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts
ConnectorType-C reversible interface connector
UVC CompliantNo additional drivers required
Electrical and Mechanical
Operating Voltage5 V +/- 5%
Operating Temp.32°F-158°F (0°C to 70°C)
Power RequirementsMax: 1.6W  , Min: 0.8W
Camera Board Size34×34 mm
Functionality and Compatibility
Supported OSWindows, Linux
Recommend Sample ApplicationPotPlayer for Windows, qv4l2 for Linux
UVC ControlsBrightness, Contrast, Saturation, White Balance (Auto/Manual), Gain, Backlight Comp, Exposure (Manual/Auto)

Applications:
  • Machine Vision
  • Video Surveillance
  • 3D Scanning and Metrology
  • Live Streaming
  • Video Conferencing
Notes:
  • Tripod is not included in the package, please check UB0224 and UB0216 for additional purchase.
Documentations:
Package Includes:
  • 1 x IMX462 USB3 Camera with Back Cover and Tripod Adapter
  • 1 x 1m USB A to Type-C Cable
