Arducam's V3Link camera kit boasts a Full HD IMX219 sensor following the V3Link protocol, standing as the prime choice for high-bandwidth, long-range vision projects. Its shielded coaxial cable ensures dependable power and data transmission up to 10m, maintaining low latency for optimal performance.

  • Featuring 4× 8MP camera modules, this kit allows flexible channel switching or independent control. Achieving both multi-camera synchronization and remote control, it offers unparalleled flexibility and convenience.
  • V3Link, a high-bandwidth transmission interface developed by Texas Instruments, leverages FPD-Link's IP for ADAS, security cameras, industrial, and medical imaging. Empowering Arducam's camera kit, ensures efficient data transmission, making it a robust choice for various applications and long-distance connections.

Features:

  • TI SK-AM62A-LP Compatibility: Tailored for TI SK-AM62A-LP/AM68A/AM69A development board, offering a multi-camera solution with high bandwidth for extended-distance transmission.
  • IMX219 CMOS & Long-Range Stability: Utilizes the IMX219 8MP sensor for high-quality imaging. Achieves stable cable connections up to 10 meters with multi-camera synchronization.
  • Flexible Channel Management: Enables channel switching and independent control, supporting up to four cameras. High-frequency signal transmission facilitates versatile applications like automotive, surveillance, medical, and industrial imaging.
  • Cost-Effective 4-Channel System: Allows the creation of a synchronized 4-channel vision system, reducing development costs. Ideal for various applications, ensuring a smaller footprint and flexible deployment.
  • Plug-and-Play Convenience: Effortless setup with no additional configuration or drivers required. Streamlines the integration process for quick and hassle-free deployment in diverse scenarios.

Specifications:

  • IMAGE SENSOR: IMX219
  • Still Resolution: 8 Megapixels
  • Video Modes: 1080p30, 640 × 480p30
  • Sensor Resolution: 3280 × 2464 pixels
  • Sensor image area: 3.68 x 2.76 mm (4.6 mm diagonal)
  • Pixel Size: 1.12 µm x 1.12 µm
  • Optical Size: 1/4"
  • IR Sensitivity: Integral IR-cut Filter, visible light only
  • Lens:
  • Focus Type: Fixed Focus
  • Focal Length: 3.04mm
  • F.NO: F2.0
  • Field of View(FOV): 62.2°(H)×48.8°(V)
  • Lens Type: Stock Lens
  • Focus Distance: 200mm to infinity
  • Electrical and Mechanical
  • Camera Board Size: 25 × 24mm
  • Peaking Current: 300mA

Applications:

  • ADAS
  • Automotive
  • Security Cameras
  • Industrial Systems
  • Medical Imaging

Note:

  • TI development board is not included in the package.
  • This kit includes IMX219 camera modules and cannot be mixed with other sensors.
  • The V3LINK solution also supports other camera modules, please contact sales for more details.

Documents:

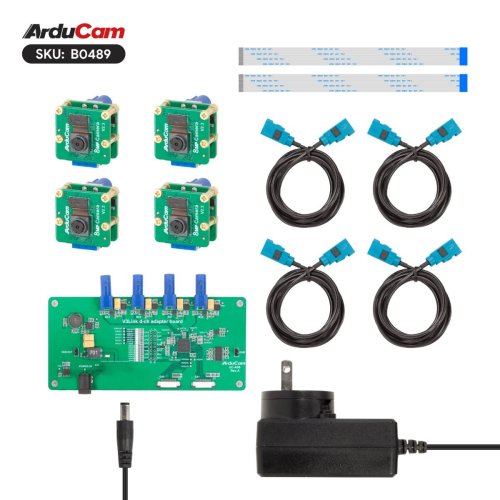

Package Includes:

  • 1 × Arducam V3Link d-ch Rx board
  • 4 × Arducam V3Link camera Tx board
  • 4 × 1m Fakra Z Female to Female RF Coaxial Cable
  • 4 × Arducam IMX219 Camera Module
  • 4 × 40cm 22-22pin FPC Cable
  • 1 × 15cm 22-22pin FFC Cable
  • 1 × Power Adapter

Write a review

Please login or register to review

Arducam B0489 4×IMX219 V3Link FPD-Link SerDes Camera Kit for TI Development Board

  • Brand: ArduCAM
  • Product Code:ArdC-IMX219-V3Link-FPD-Link
  • Reward Points:183
  • Availability:In Stock
  • रo 18,181.00
  • रo 15,975.00

  • Price in reward points:18181

  • 2 or more रo 18,105.00
  • 4 or more रo 18,029.00
  • 7 or more रo 17,953.00
