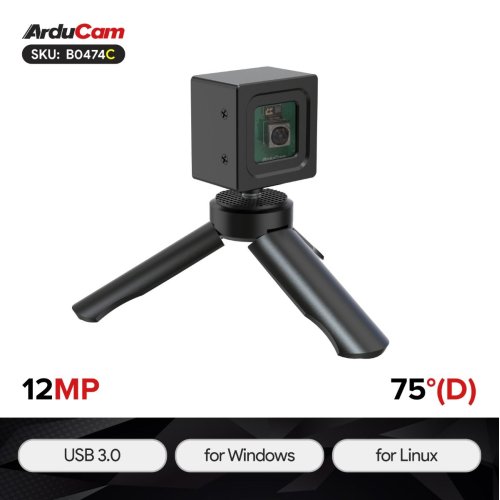

This IMX708 USB 3.0 camera boasts a maximum resolution of 11.9 megapixels utilizing the advanced IMX708 image sensor. With a maximum still resolution of 4608(H)×2592(V), users can capture incredibly detailed images. Moreover, the camera’s frame rate can reach up to 90fps@1536×864, ensuring smooth and fluid video capture.

With its high quality motorized focus lens offering a field of view of 75°(D), this camera captures stunningly accurate images.

Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.

Features:

• Utilizing a 1/2.43″ 12MP image sensor, achieving a maximum still resolution of 4608×2592 pixels.
• Enjoy programmable frame rates, with the potential to reach up to 90fps.
• Incorporating an onboard ISP and center-weighted exposure for uncompromised output in uncompressed YUY2 format.
• Features a 75° DFoV motorized focus lens for exceptional image quality.
• Effortless compatibility with Windows and Linux through plug-and-play functionality, eliminating the need for additional drivers.

Specifications:

Image Sensor

• Sensor IMX708
• Still Resolution 11.9 Megapixels
• Color Filter Type Color
• Shutter Type Rolling
• Optical Size 1/2.43″
• Output Format YUY2
• Pixel Size 1.4 µm x 1.4 µm
• Sensor Active Area 4608(H)×2592(V)
• IR Sensitivity Integral IR-cut Filter, visible light only
• Frame Rate (USB 3.0) 4608×2592@10fps, 2304×1296@55fps, 1536×864@90fps
• Frame Rate (USB 2.0) 1536×864@10fps

Lens

• Focus Type Motorized  Focus
• FOV 75°(D)x66°(H)x41°(V)
• Lens Mount Stock Lens
• F.NO F1.8
• E.F.L 4.74mm
• IR Sensitivity Integral IR-cut Filter, visible light only

USB Interface

• Interface USB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts
• Connector Type-C reversible interface connector
• UVC Compliant No additional drivers required

Electrical and Mechanical

• Operating Voltage 5 V +/- 5%
• Operating Temp. 32°F-158°F (0°C to 70°C)
• Power Requirements Max: 1.36W Min: 0.75W
• Camera Board Size 34×34 mm

Functionality and Compatibility

• Supported OS Windows, Linux
• Recommend Sample Application PotPlayer for Windows, qv4l2 for Linux
• UVC Controls Brightness, Contrast, Saturation, Gain, White Balance (Manual and Auto)


Applications:

• Machine Vision
• Automated Optical Inspection
• 3D Scanning and Metrology
• Robotics and Automation
• Biomedical Imaging

Notes:

• Tripod is not included in the package, please check UB0224 and UB0216 for additional purchase.

Documentations:

• Datasheet
• Quick Start Guide

Package Includes:

• 1 x IMX708 USB3.0 Camera Module with Back Cover and Tripod Adapter
• 1 x 1m USB A to Type-C Cable
