This IMX519 USB 3.0 camera boasts a maximum resolution of 16 megapixels utilizing the advanced IMX519 image sensor. With a maximum still resolution of 4656*3496, users can capture incredibly detailed images. Moreover, the camera's frame rate can reach up to 120fps@720P, ensuring smooth and fluid video capture.

With its high quality Motorized-focus lens offering a field of view 78°(D), this camera captures stunningly accurate images.

Arducam latest USB 3.0 camera stands out with its user-friendly plug-and-play functionality. Offering compatibility with Windows and Linux OSs, no additional drivers are needed, simplifying the setup process. Moreover, its backward compatibility with USB 2.0 host ports ensures flexibility and seamless connectivity.

Features:

  • Utilizing a 1/2.53" 16MP image sensor, achieving a maximum still resolution of 4656x3496 pixels.
  • Enjoy programmable frame rates, reaching up to 120fps at 720p resolution.
  • Proprietary on-board ISP advances image enhancement: de-Bayer, gamma, BLC, AE, AWB, CCM, RGB2YUV.
  • Features a 78° DFoV Motorized focus lens for exceptional image quality.
  • Effortless compatibility with Windows and Linux through plug-and-play functionality, eliminating the need for additional drivers.

Specifications:

Image Sensor
SENSORIMX519
Still Resolution16 Megapixels
Color Filter TypeColor
Shutter TypeRolling
Optical Size1/2.53"
Output FormatYUY2
Pixel Size1.22 µm x 1.22 µm
Sensor Active Area4656(H)×3496(V)
Frame Rate (USB 3.0)1280*720@120fps, 1920*1080@60fps, 2320*1748@40fps, 3840*2160@20fps, 4656*3496@9fps
Frame Rate (USB 2.0)1280*720@10fps
IR SensitivityIntegral IR-cut Filter, visible light only
Lens
Focus TypeMotorized Focus
FOV78°(D)×65°(H)×51(V)
Lens MountStock Lens
F.NOF1.75
E.F.L4.28mm
Default Focus Range3m-∞
USB Interface
InterfaceUSB 3.2 Gen 1 device, backward compatible with USB 2.0 hosts
ConnectorType-C reversible interface connector
UVC CompliantNo additional drivers required
Electrical and Mechanical
Operating Voltage5 V +/- 5%
Operating Temp.32°F-158°F (0°C to 70°C)
Power RequirementsMax: 1.48W , Min: 0.77W
Camera Board Size34×34 mm
Functionality and Compatibility
Supported OSWindows, Linux
Recommend Sample ApplicationPotPlayer for Windows, qv4l2 for Linux
UVC ControlsBrightness, Contrast, Saturation, White Balance(Manual and Auto), Gain, Exposure(Manual and Auto), Focus(Manual)

Applications:

  • Machine Vision
  • Automated Optical Inspection
  • 3D Scanning and Metrology
  • Robotics and Automation
  • Biomedical Imaging

Note:

  • The tripod shown in some pictures is not included in the package.

Documentations:

Package Includes:

  • 1 x 16MP USB3 Camera Module with Back Cover and Tripod Adapter
  • 1 x 1m USB A to Type-C Cable

Write a review

Please login or register to review

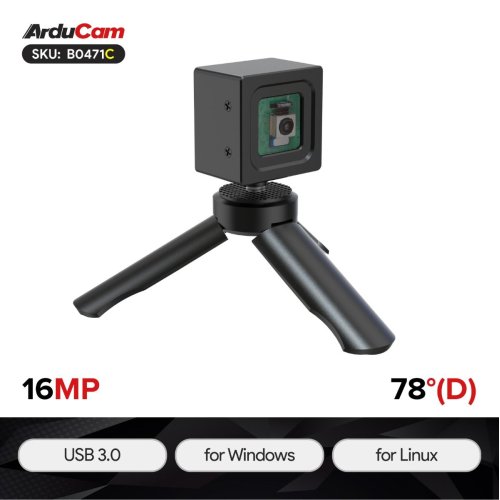

Arducam B0471/B0471C 16MP IMX519 Motorized Focus USB 3.0 Camera Module

  • Brand: ArduCAM
  • Product Code:ArdC-B0471-B0471C-16MP-IMX519
  • Reward Points:141
  • Availability:In Stock
  • रo 13,506.00
  • रo 11,867.00

  • Price in reward points:14128

  • 2 or more रo 13,450.00
  • 5 or more रo 13,393.00
  • 10 or more रo 13,337.00
