This camera is based on GC2415 Color rolling shutter image sensor. The GC2145 incorporates a 1616V x 1232H active pixel array, on-chip 10-bit ADC, and image signal processor.

The 2MP GC2145 camera module is equipped with a 80°(DFOV) stock Lens. It supports RGB output format. The standrad operating temperature is between -20~70℃, with the stable Image temp. between 0~50℃.

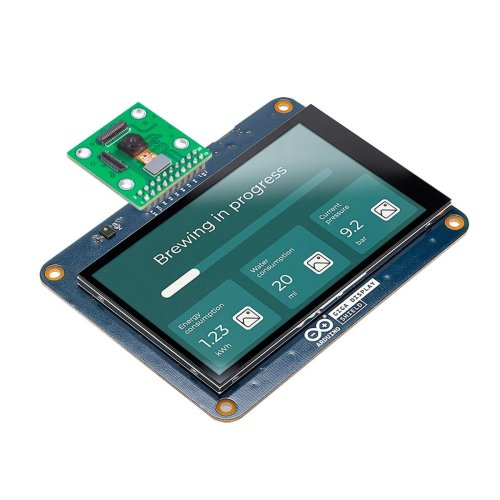

Fully compatible with the Arduino GIGA R1 board and Arduino® GIGA Display Shield, a recent addition to Arduino's professional-grade microcontroller development boards. Seamless integration empowers the camera module, unlocking versatile image capture and processing capabilities. Leverage the combined strength of this camera module and Arduino GIGA R1 with GIGA Display Shield for a competitive edge in your projects.

Applications:

• Machine/Computer Vision
• Robotics
• IoT
• Digital Fabrication
• Real-time Processing

Features:

• Cost-Effective Vision Solution: Affordable and compact, ideal for budget-friendly projects integrating vision capabilities.
• Wide Compatibility: Pair with the GIGA Display Shield (not included) for an intuitive interface, simplifying camera setup and real-time monitoring.
• Simplify Embedded Vision for All: Easy to set up and operate. Making it possible to add machine vision to your GIGA R1 board without much effort at all.
• Higher Resolution: Captures images with high resolution and detail, allowing for precise visual analysis.
• Low Power Consumption: Efficient power usage, making it suitable for battery-powered and energy-efficient applications.

Specifications:

• GE SENSOR: GC2145
• Resolution: 2MP
• Optical Size: 1/5''
• Number of effective pixels: 1616(H) × 1232(V)
• Pixel Size: 1.75μm × 1.75μm
• Support Platform: Arduino GIGA R1 WIFI Board
• Shutter Type: Rolling Shutter
• Color Filter Array: Quad-Bayer RGB
• Frame Rate: 640x480@17fps, 320x240@27fps, 160x120@52fps
• Output Format: RAW10
• F.NO: 2.2±5%
• Focus Type: Fixed Focus
• Focal Length: 2.2mm
• Field of View(FOV): 80°(D)
• Power Supply: AVDD: 2.6V to 3.0V; DOVDD: 1.7V to 3.0V; DVDD: 1.8V
• Operating Temperature: -20~70℃
• Camera Board Size: 30.5mm x 30.5mm

Notes:

• No platform board is included in the package

Documentation:

• Quick Start Guide for Arducam Camera on Arduino GIGA R1
• Datasheet

Package Includes:

• 1 x Arducam 2MP GC2145 Camera Module with 20-pin DVP Camera Board
