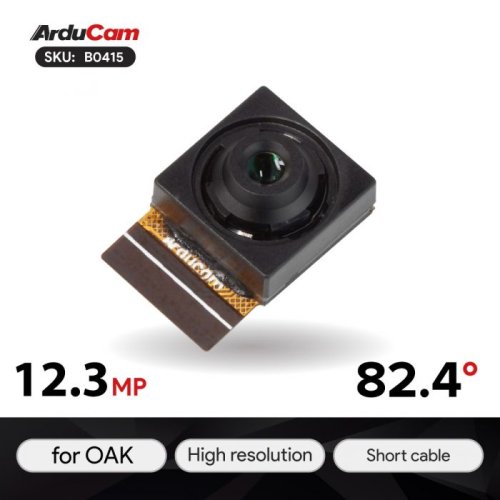

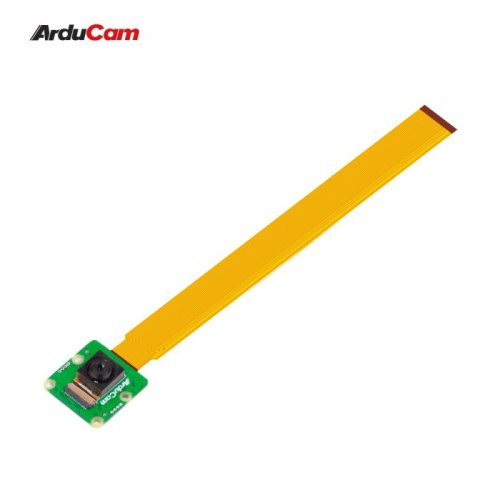

Sony's IMX378 is a 12MP (4056x3040) rolling shutter color image sensor. Arducam IMX378 camera module can be used in almost all of the OAK products (OAK-D, OAK-D S2, OAK-D Pro, OAK-D-PoE, OAK-D S2 PoE, etc.) as the color camera.

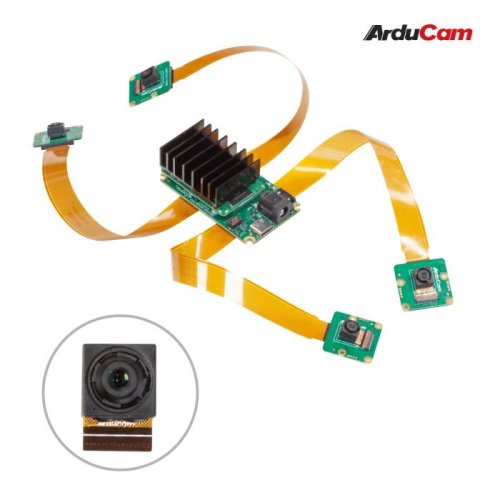

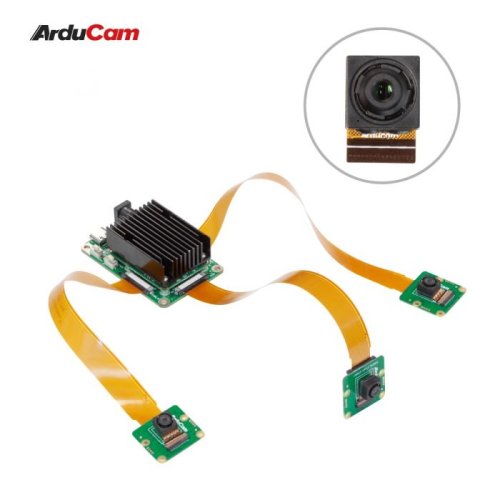

  • It is also compatible with OAK FFC boards (OAK-FFC-3P, OAK-FFC 4P), so you can easily evaluate its sensor and optics performance via a camera board and a flex cable.

Specification :

Sensor

IMX378

Optical Size

Type 1/2.3''

(Diagonal 7.857 mm)

Pixel Size

1.55μm×1.55μm

Shutter Type

Rolling Shutter

Color Filter Array

Bayer RGB

Max Sensor Resolution

4056 x 3040

Resolution and Frame Rate

4056x3040@30fps, 3840x2160@30fps, 1920x1080@60fps

Supported Platform

OAK D series (OAK-D, OAK-D S2, OAK-D Pro, OAK-D-PoE, OAK-D S2 PoE, etc.) and OAK FFC boards (OAK-FFC-3P, OAK-FFC-4P)

Focus Type

Manual

Focus

50cm~INF

Lens

f/1.8, EFL: 4.74mm, FoV: 82.4° (D)

IR Sensitivity

Built-in 650nm IR-cut filter, sensitive to visible light only

Module Dimensions

10.8mm × 15.82mm

Documents :

Package Includes :

  • 1 x IMX378 Camera Module for DepthAI OAK

Write a review

Please login or register to review

Arducam B0415 12MP IMX378 Camera Module for DepthAI OAK

  • Brand: ArduCAM
  • Product Code:NR-ArdC-12MP-IMX378-DepthAI-OAK
  • Reward Points:24
  • Availability:In Stock
  • रo 2,280.00
  • रo 1,997.00

  • Price in reward points:2375

  • 6 or more रo 2,275.00
  • 10 or more रo 2,265.00
  • 30 or more रo 2,255.00
  • 60 or more रo 2,245.00
