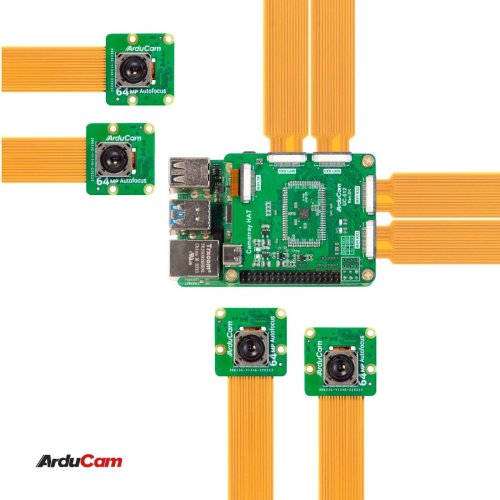

A quad-camera kit that allows you to use up to four 64-megapixel autofocus cameras on a standard Raspberry Pi model.
By default, the kit works in a quad-channel mode where all cameras are configured to capture stills/videos at the exact same time.
Supported Modes
- Single Channel (no sync):
- 4 cameras work consecutively where one camera captures after the other. Full-res for each.
- Dual-Channel (synced):
- 2 cameras merged into 1 full-res frame, working synchronously. 1/2 res for each.
- Quad-Channel (synced):
- 4 cameras merged into 1 full-res frame, working synchronously. 1/4 res for each.
Demo
Other Camera-Multiplexing Solutions >
Specifications:
Note:
- Raspberry Pi and tripod are not included.
- The 64MP cameras in the kit are exclusively made and can only be used with the Camarray HAT. Connecting any of them directly to Raspberry Pi will not work.
- The arducam 64MP cameras can only get maximum resolution and video streaming on Pi4 and CM4 platforms. The resolution and video streaming of the camera will be limited on other Raspberry Pi platforms.
- using note
- 1. The four-channel camera adopts the 2×2 synthesis method. The images of cameras 0 and 1 are completely synchronized, the images of cameras 2 and 3 are completely synchronized, and the images of cameras 2/3 are one frame behind the images of cameras 0/1.
- 2. The resolution of the synthesized image remains unchanged, but the frame rate is halved.
- 3. If any camera fails, the composite image can still be output, with the corresponding area of the failed camera being black.
- 4. Official Commands and ISP are supported.
- 5. The four-channel camera is a customized model, requiring HAT to provide a clock. It cannot be removed and is directly connected to the Raspberry Pi.
- 6. The driver of the kit is mainly developed based on the Raspberry Pi/ Nvidia Jeston official board, and there is no guarantee that the third-party board can be used (Due to the different allocation of hardware resources, it may not be compatible)
- 7. This camera kit supports the latest Raspberry Pi OS Bullseye (Jan 28th, 2022 and later) and libcamera apps, for the previous Raspberry Pi OS (Legacy) users, contact [email protected] for support.
Documentations:
- PDF – Getting Started with 64MP-AF Quad Camera Kit
- Depth Mapping on Arducam Stereo Camera HAT with OpenCV

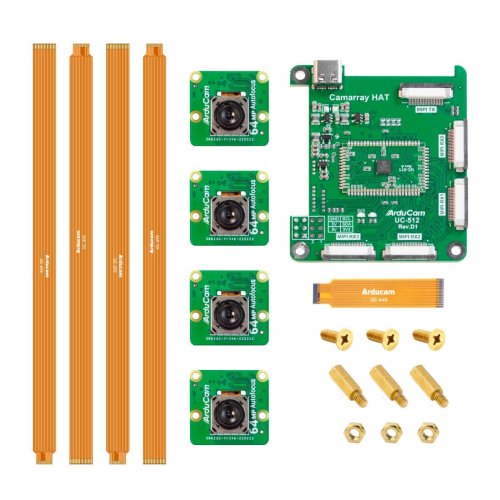

Packing Includes:

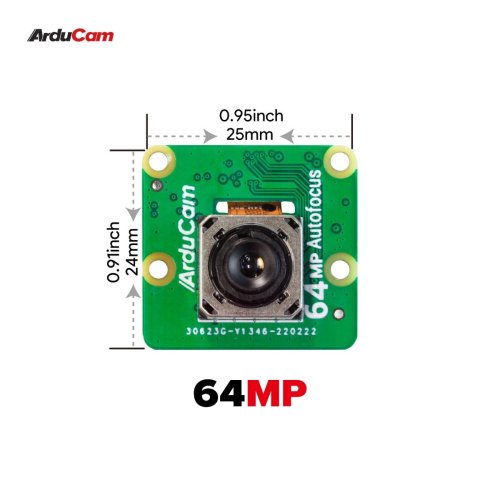

- 4 × 64MP Camera Module

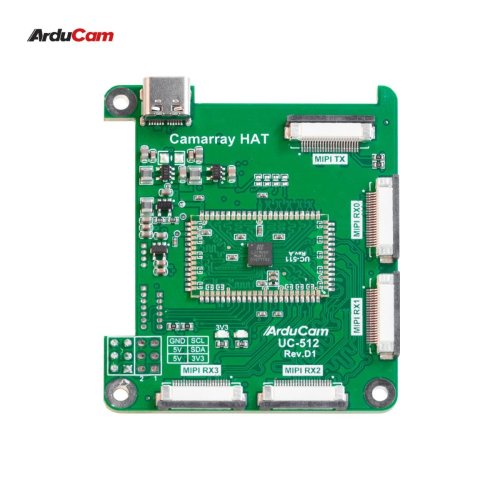

- 1 × UC-512 Camarray HAT
- 4 × 30cm 15-22pin Camera Cable
- 1 × 7cm 15-22pin Camera Cable
- 1 × Screw Pack
Arducam B0402 64MP Autofocus Quad-Camera Kit for Raspberry Pi
- Brand: ArduCAM
- Product Code:NR-ArdC-64MP-Autofocus-Quad-Camera-Kit
- Reward Points:285
- Availability:In Stock
- रo 27,160.00
-
रo 23,963.00
- Price in reward points:28530
-
- 2 or more रo 27,040.00
- 5 or more रo 26,930.00
Related Products
Tags: Arducam, Autofocus, Quad-Camera Kit, Raspberry Pi
